Harting Han DD Quick-lock module, Female, c/s 0.25 - 1.5 mm²

Product Overview

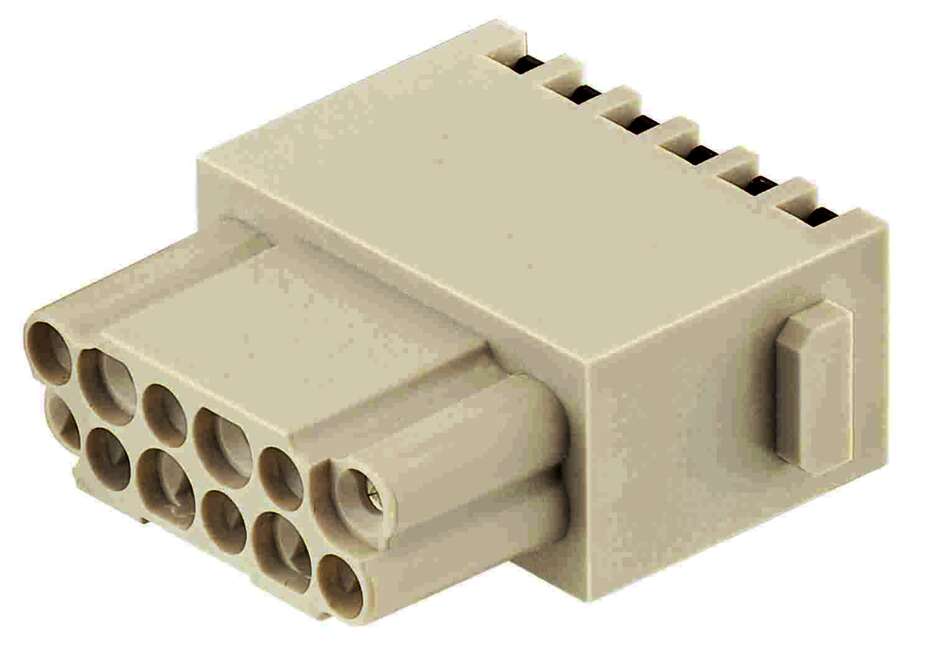

The Han DD Quick-Lock module, female is a power transmission module designed for the HARTING Han-Modular® connector system with advanced Han-Quick Lock® termination technology. This single-module female insert features tool-free termination and is engineered for reliable 10A power and signal connections with 12 contacts for enhanced power applications using the innovative Han-Quick Lock® technology with black slide identification.

Key Features

• Series: Han-Modular®
• Category: Modules
• Type: Han DD® module
• Module Size: Single module
• Termination Method: Han-Quick Lock® termination
• Gender: Female
• Contacts: 12
• Current Rating: 10 A
• Voltage Rating: 250 V (rated voltage), 600 V (UL rated)
• Conductor Cross-Section: 0.25 - 1.5 mm²
• Wire Outer Diameter: ≤3.6 mm
• Stripping Length: 10 mm
• Material: Polycarbonate (PC)
• Color: RAL 7032 (pebble grey)
• Contact Material: Copper alloy, silver plated
• Identification: Black slide

Technical Specifications

This female Han DD Quick-Lock module provides reliable power and signal transmission with a rated current of 10A and conductor cross-section accommodation from 0.25 to 1.5 mm². The module features 250V rated voltage with 600V UL rating and 4kV impulse voltage. The operating temperature range spans -40°C to +125°C with insulation resistance >10¹⁰ Ω, contact resistance ≤3 mΩ, and mating cycles ≥500. The robust polycarbonate construction with silver-plated copper alloy contacts ensures reliable performance while the Han-Quick Lock® termination design provides tool-free connections for enhanced productivity and field assembly capabilities.

Compliance & Environmental

• Operating temperature: -40°C to +125°C
• Mating cycles: ≥500
• Insulation resistance: >10¹⁰ Ω
• Contact resistance: ≤3 mΩ
• UL 94 V-0 flammability classification
• RoHS compliant with exemption
• ELV status compliant with exemption
• REACH compliant
• UL 1977 ECBT2.E235076 approved
• CSA-C22.2 No. 182.3 ECBT8.E235076 approved
• DNV GL approved
• EN 45545-2 railway fire protection compliant
• IEC 60664-1 and IEC 61984 standards

Applications

Ideal for industrial control systems, power distribution panels, and machinery requiring reliable 10A female connections with convenient Han-Quick Lock® termination. Perfect for industrial automation equipment, motor controls, and manufacturing systems where tool-free installation and enhanced contact density provide significant advantages in productivity and reliability. Also suitable for railway applications meeting EN 45545-2 fire protection standards.
