Harting Han CC Protected module, Crimp, female, c/s 1.5 - 6 mm²
Harting Han CC Protected module, Crimp, female, c/s 1.5 - 6 mm²

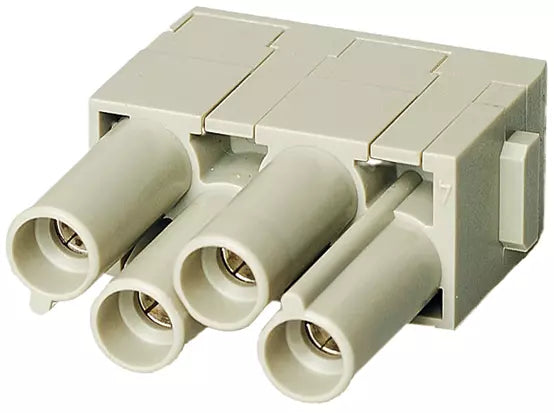

Harting Han CC Protected module, Crimp, female, c/s 1.5 - 6 mm² Part number 09140043141

This is a female crimp insert from the Harting Han CC series, fitted with four contacts for cross-sections of 1.5 to 6 mm². It is rated at 830 V and 40 A, with a PC insert material rated V-0 for flammability. The module is intended for use within Han-style connector...
Vendor: Harting
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Description
Description
x

This is a female crimp insert from the Harting Han CC series, fitted with four contacts for cross-sections of 1.5 to 6 mm². It is rated at 830 V and 40 A, with a PC insert material rated V-0 for flammability. The module is intended for use within Han-style connector housings in industrial automation panels and machinery, where crimp termination is required for field wiring.

Key specifications

  • Rated voltage: 830 V
  • Connection: Crimp termination
  • Colour: Pebble Grey
  • Flammability: V-0
Specifications
Specifications
x
Tariff85389099
GTIN5713140020153
ETIMEC000438
Compliance/CertificationsIEC 60664-1 IEC 61984 / UL 1977 ECBT2.E235076 / DNV GL
FlammabilityV-0
Material: InsertPC
Packaging Size2 pc(s)
Weight (g)1.05g
CommunicationFemale - 4 contacts
Connection TypeCrimp termination
Mating Cycles / Life Span≥500
Rated Voltage830 V
Current Rating / Rated Current40 A
ColourPebble Grey
RAL CodeRAL 7032
Documents
Documents
x
Download Datasheet
