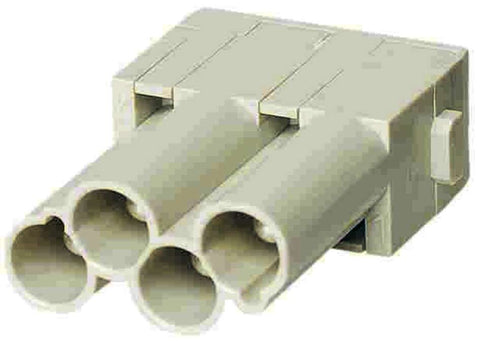

Harting Han CC Protected module, Crimp, male, c/s 1.5 - 6mm², 40A Part number 09140043041

This module is a male crimp insert for the Harting Han CC connector series, providing four contacts for cross-sections of 1.5 to 6mm² and rated at 40A, 830V. The insert body is manufactured from PC material with a V-0 flammability rating. It is used in industrial connector housings for panel...
Vendor: Harting
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Description
Description
x

This module is a male crimp insert for the Harting Han CC connector series, providing four contacts for cross-sections of 1.5 to 6mm² and rated at 40A, 830V. The insert body is manufactured from PC material with a V-0 flammability rating. It is used in industrial connector housings for panel and machine-building applications requiring crimp termination.

Key specifications

  • Rated voltage: 830 V
  • Connection: Crimp termination
  • Flammability: V-0
Specifications
Specifications
x
Tariff85389099
GTIN5713140020139
ETIMEC000438
Compliance/CertificationsIEC 60664-1 IEC 61984 / UL 1977 ECBT2.E235076 / DNV GL
FlammabilityV-0
Material: InsertPC
Packaging Size2 pc(s)
Weight (g)4.59g
CommunicationMale - 4 contacts
Connection TypeCrimp termination
Mating Cycles / Life Span≥500
Rated Voltage830 V
Current Rating / Rated Current40 A
Documents
Documents
x
Download Datasheet
