Harting Han D Crimp contact, Gold plated, male, c/s 1mm², 10A

Product Overview

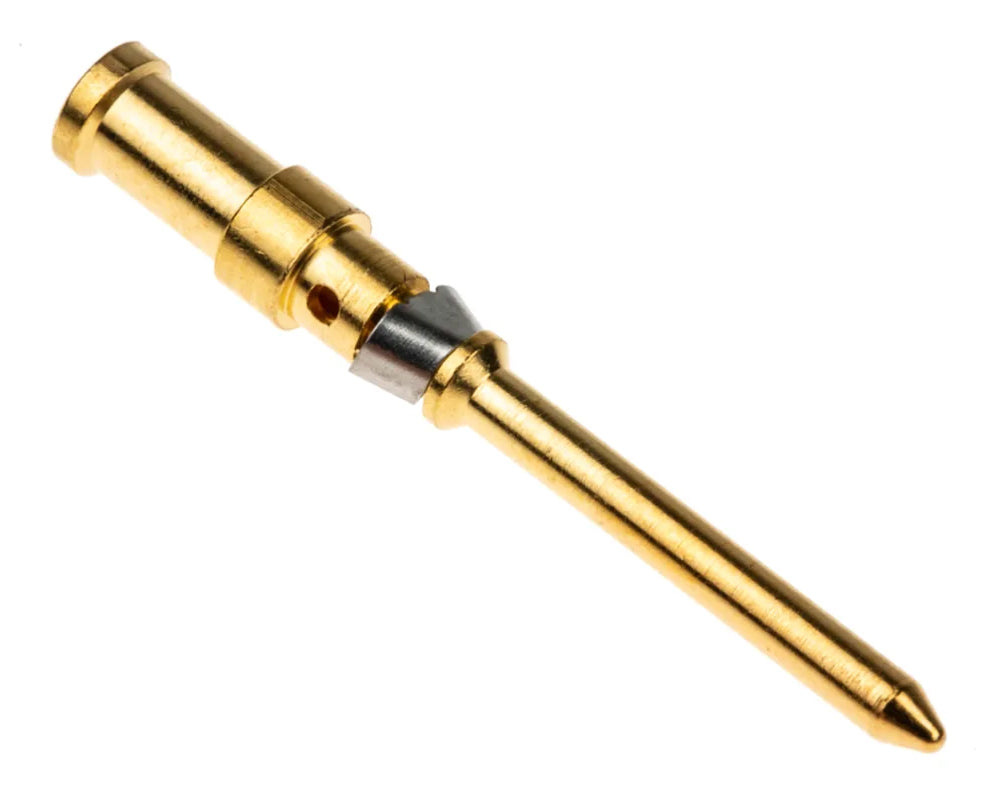

The R 15-STI-C-1 QMM (AU) is a male crimp contact designed for the HARTING R 15 and Han D® connector series. This high-performance contact features gold-plated copper alloy construction with 1.0 mm² conductor cross-section capability, engineered for reliable 10A electrical connections using crimp termination technology for AWG 18 wire applications in industrial circular connector systems.

Key Features

• Series: Han D®
• Category: Contacts
• Type: Crimp contact
• Gender: Male (pin contact)
• Current Rating: ≤10 A
• Conductor Cross-Section: 1.0 mm²
• Wire Size: AWG 18
• Contact Material: Copper alloy
• Plating: Gold plated (AU)
• Termination Method: Crimp termination
• Application: R 15 series connectors
• Manufacturing Process: Turned contacts
• Contact Resistance: ≤3 mΩ
• Dimensions: 1.6 mm size

Technical Specifications

This R 15-STI-C male crimp contact provides reliable electrical connection with a rated current of up to 10A for 1.0 mm² conductor cross-section (AWG 18) applications. The copper alloy construction with gold plating ensures excellent electrical conductivity, superior corrosion resistance, and long-term reliability with contact resistance ≤3 mΩ. The crimp termination method provides secure mechanical and electrical connection to the conductor without requiring soldering. The turned contact manufacturing process ensures precise dimensions and consistent performance. Compatible with R 15 series connector housings and inserts, this contact is designed for demanding industrial applications requiring dependable electrical connections with medium-fine wire compatibility.

Compliance & Environmental

• Rated current: ≤10 A
• Conductor cross-section: 1.0 mm² (AWG 18)
• Contact resistance: ≤3 mΩ
• Gold-plated copper alloy construction
• Crimp termination technology
• Compatible with R 15 series connectors
• Compatible with Han D® series
• Turned contact manufacturing process
• Superior conductivity and corrosion resistance
• Gold plating for enhanced performance

Applications

Ideal for industrial control systems, instrumentation, and signal transmission applications requiring reliable electrical connections with medium-fine wire compatibility in R 15 circular connector assemblies. Perfect for applications where crimp termination provides secure wire connection for AWG 18 conductors without soldering, such as sensor connections, control circuits, and power distribution systems. Suitable for precision instrumentation and control systems where gold-plated contacts ensure long-term reliability and minimal contact resistance. The 1.0 mm² conductor capability makes it particularly useful for power and control applications requiring reliable connections with AWG 18 wire in demanding industrial environments. The gold plating provides superior performance in harsh environmental conditions and applications requiring high reliability.

Download existing graphical data for this product:

• Product Datasheet
• Product Declaration Certificate
