Harting Hood Frame, Han-Modular Series , For Use With Heavy Duty Power Connectors

Product Overview

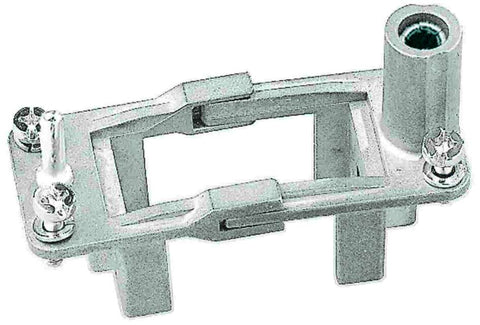

The Han 10A Halterahmen (holding frame) is designed to mount one Han-Modular series module within Han 10A series housings. This essential mounting component ensures secure installation and proper positioning of modular inserts within the Han A connector system.

Key Features:

• Modular Compatibility: Enables mounting of one Han-Modular series module in Han 10A housings
• Shell Size: 10A configuration
• Material: PC (Polycarbonate) construction for durability
• Series: Han A connector system
• Application: Industrial connectivity solutions requiring modular insert mounting

Technical Specifications:

• Article Number: 09 14 000 0304
• Series: Han A
• Shell Size: 10A
• Module Capacity: 1 module
• Material: Polycarbonate (PC)

Applications:

The Han 10A Halterahmen is ideal for industrial applications requiring reliable modular connectivity solutions. It provides the mechanical framework necessary for integrating Han-Modular components into Han 10A connector housings, commonly used in automation, manufacturing, and industrial control systems.

Download existing graphical data for this product:

• Product Datasheet (EN)
• Product Declaration Certificate (EN)
• Technical Drawing
