Harting Crimp contact, silver plated, male, c/s 2.5 mm² Harting
Harting Crimp contact, silver plated, male, c/s 2.5 mm² Harting

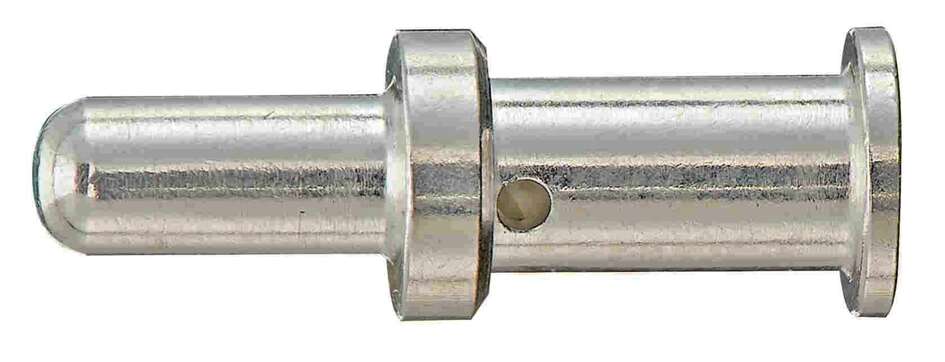

Harting Crimp contact, Silver plated, male, c/s 2.5 mm² Part number 11050006106

This crimp contact is a male pin terminal made from silver-plated copper alloy, designed for crimp termination onto conductors of 2.5 mm² cross-section. It is rated for current up to 20 A and complies with IEC 60664-1 and IEC 61984. Such contacts are used within industrial connector housings and inserts...
Vendor: Harting
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Description
Description
x

This crimp contact is a male pin terminal made from silver-plated copper alloy, designed for crimp termination onto conductors of 2.5 mm² cross-section. It is rated for current up to 20 A and complies with IEC 60664-1 and IEC 61984. Such contacts are used within industrial connector housings and inserts to establish reliable signal or power connections in automation and control panel wiring.

Key specifications

  • Connection: Male
Specifications
Specifications
x
Tariff85366990
GTIN5713140109377
ETIMEC000796
Compliance/CertificationsIEC 60664-1 IEC 61984
Material: Sensing Surface / ContactsCopper Alloy / Silver-plated
Packaging Size100 pc(s)
Weight (g)0.5g
Connection TypeMale
Connection StyleCrimp contact
Current Rating / Rated Current≤20 A
Documents
Documents
x
Download Datasheet
