Description

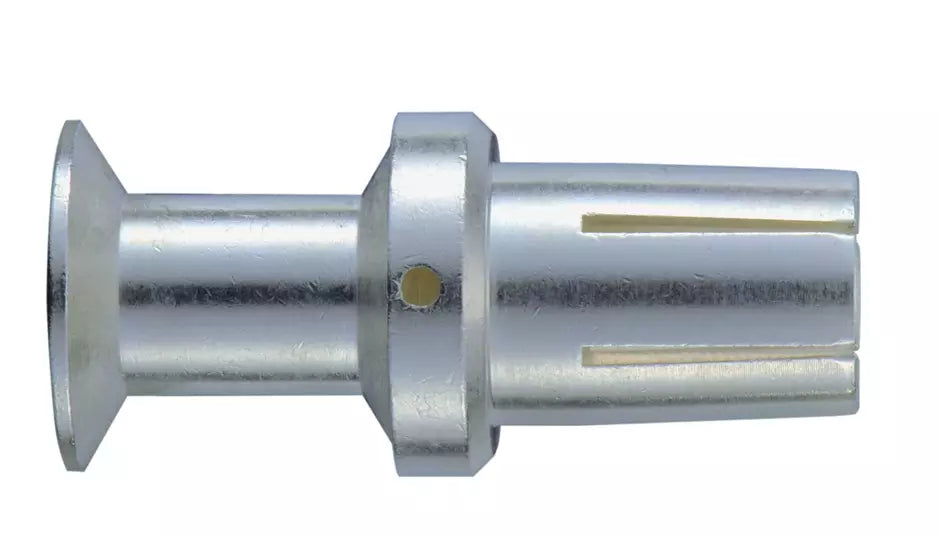

xThe TC 200 is a female crimp contact rated for currents up to 200A with a 35mm² cross-section, made from silver-plated copper alloy. It is designed for crimp termination into industrial connector housings, forming part of the mating interface for high-current field wiring. Typical applications include power connections within industrial automation and machine-building panels where heavy-gauge conductors require a reliable crimped termination.
Key specifications
- Connection: Female
Specifications
x| Tariff | 85359000 |
| GTIN | 5713140015326 |
| ETIM | EC000796 |
| Compliance/Certifications | IEC 60664-1 IEC 61984 |
| Material: Sensing Surface / Contacts | Copper Alloy / Silver-plated |
| Packaging Size | 2 pc(s) |
| Weight (g) | 26.92g |
| Connection Type | Female |
| Connection Style | Crimp contact |
| Mating Cycles / Life Span | ≥500 |
| Current Rating / Rated Current | ≤200 A |
