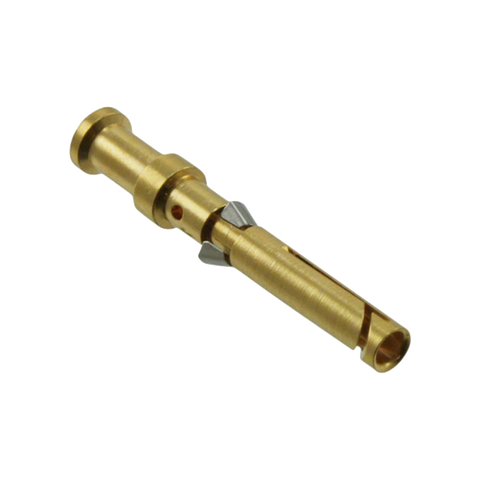

Harting Han D Crimp contact, gold plated, female, 0.75mm²

Product Overview

The Han D F Crimp Contact 0,75mm² Au is a female crimp contact designed for the HARTING Han D® connector series. This high-performance contact features gold-plated copper alloy construction with 0.75 mm² conductor cross-section capability, engineered for reliable 10A electrical connections using crimp termination technology for AWG 18 wire applications in industrial heavy-duty connector systems.

Key Features

• Series: Han D®
• Category: Contacts
• Type: Crimp contact
• Gender: Female (socket contact)
• Current Rating: 10 A
• Conductor Cross-Section: 0.75 mm²
• Wire Size: AWG 18
• Contact Material: Copper alloy
• Plating: Gold plated (Au)
• Termination Method: Crimp termination
• Application: Han D, Han DD, Han DDD series
• Manufacturing Process: Turned contacts
• Contact Resistance: ≤3 mΩ
• Country of Origin: Germany

Technical Specifications

This Han D female crimp contact provides reliable electrical connection with a rated current of 10A for 0.75 mm² conductor cross-section (AWG 18) applications. The copper alloy construction with gold plating ensures excellent electrical conductivity, superior corrosion resistance, and long-term reliability with contact resistance ≤3 mΩ. The crimp termination method provides secure mechanical and electrical connection to the conductor without requiring soldering, offering a solderless method ideal for creating long-lasting and reliable connections with reproducible electrical and mechanical values. The turned contact manufacturing process ensures precise dimensions and consistent performance. Compatible with Han D series inserts, this contact is designed for demanding industrial applications requiring dependable electrical connections with fine to medium wire compatibility and superior signal integrity.

Compliance & Environmental

• Rated current: 10 A
• Conductor cross-section: 0.75 mm² (AWG 18)
• Contact resistance: ≤3 mΩ
• Gold-plated copper alloy construction
• Crimp termination technology
• Compatible with Han D series inserts
• Turned contact manufacturing process
• Superior conductivity and corrosion resistance
• Consistent resistance characteristics
• Minimal environmental impact on signal transmission
• German engineering and manufacturing

Applications

Ideal for precision instrumentation, signal transmission, and control applications requiring reliable electrical connections with fine to medium wire compatibility and superior signal integrity in Han D heavy-duty connector assemblies. Perfect for applications where gold-plated contacts ensure clean and stable data transmission over long term with exceptional resistance to environmental factors, such as sensor connections, control circuits, data transmission lines, and precision measurement systems. Suitable for applications requiring fine wire gauges where consistent resistance characteristics are critical and environmental factors must have minimal impact on signal transmission. The gold plating provides exceptional performance for signal integrity applications where long-term reliability, stable contact resistance, and superior data transmission quality are essential. The female socket design makes it ideal for mating with male pin contacts in applications requiring secure, removable electrical connections with superior environmental protection and outstanding signal quality for both control and data transmission circuits in demanding industrial environments.

Download existing graphical data for this product:

• Product Datasheet
• Product Declaration Certificate
