Harting Han D Crimp contact, Male, c/s 0.5 mm²

Product Overview

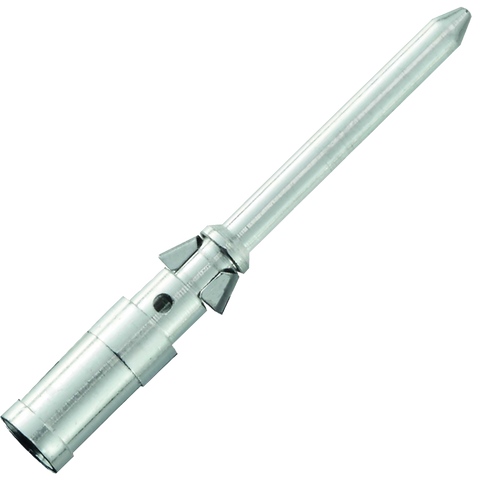

The R 15-STI-C-0,5 QMM-AWG 20 is a male crimp contact designed for the HARTING R 15 and Han D® connector series. This high-performance contact features silver-plated copper alloy construction with 0.5 mm² conductor cross-section capability, engineered for reliable 10A electrical connections using crimp termination technology for AWG 20 wire applications in industrial circular connector systems.

Key Features

• Series: Han D®
• Category: Contacts
• Type: Crimp contact
• Gender: Male (pin contact)
• Current Rating: ≤10 A
• Conductor Cross-Section: 0.5 mm²
• Wire Size: AWG 20
• Contact Material: Copper alloy
• Plating: Silver plated
• Termination Method: Crimp termination
• Application: R 15 series connectors
• Manufacturing Process: Turned contacts
• Contact Resistance: ≤3 mΩ

Technical Specifications

This R 15-STI-C male crimp contact provides reliable electrical connection with a rated current of up to 10A for 0.5 mm² conductor cross-section (AWG 20) applications. The copper alloy construction with silver plating ensures excellent electrical conductivity, corrosion resistance, and long-term reliability with contact resistance ≤3 mΩ. The crimp termination method provides secure mechanical and electrical connection to the conductor without requiring soldering. The turned contact manufacturing process ensures precise dimensions and consistent performance. Compatible with R 15 series connector housings and inserts, this contact is designed for demanding industrial applications requiring dependable electrical connections with fine wire compatibility.

Compliance & Environmental

• Rated current: ≤10 A
• Conductor cross-section: 0.5 mm² (AWG 20)
• Contact resistance: ≤3 mΩ
• Silver-plated copper alloy construction
• Crimp termination technology
• Compatible with R 15 series connectors
• Compatible with Han D® series
• Turned contact manufacturing process
• High conductivity and corrosion resistance

Applications

Ideal for industrial control systems, instrumentation, and signal transmission applications requiring reliable electrical connections with fine wire compatibility in R 15 circular connector assemblies. Perfect for applications where crimp termination provides secure wire connection for small gauge conductors without soldering, such as sensor connections, control signals, and low-power circuits. Suitable for precision instrumentation and control systems where silver-plated contacts ensure long-term reliability and minimal contact resistance. The 0.5 mm² conductor capability makes it particularly useful for signal and control applications requiring reliable connections with AWG 20 wire in demanding industrial environments.
