Harting Bulkhead housing, single locking, size 10A

Product Overview

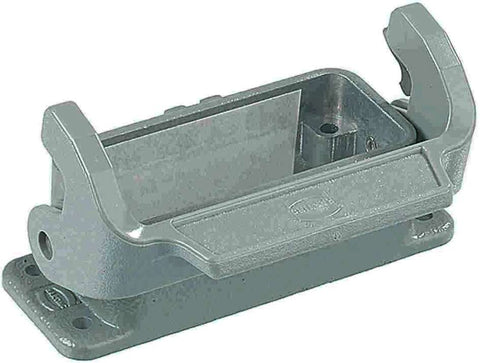

The Han 10 A-agg-LB (Article No.: 09 20 010 0301) is a bulkhead housing from HARTING's Han A® series featuring low construction design with single locking lever. This size 10A panel mount housing provides top entry configuration with IP65 protection for industrial connector applications.

Key Features:

• Han A® series bulkhead housing, size 10A
• Low construction design with single locking lever (Han-Easy Lock®)
• Top entry configuration for panel mounting
• Aluminium die-cast construction with powder coating
• IP65 protection rating with NBR seal
• Stainless steel and polycarbonate components

Technical Specifications:

• Article Number: 09 20 010 0301
• Category: Hoods/Housings
• Series: Han A®, Size 10A
• Type: Bulkhead housing (panel mount)
• Construction: Low construction
• Locking: Single locking lever (Han-Easy Lock®)
• Entry Configuration: Top entry
• Material: Aluminium die-cast (housing), Stainless steel, Polycarbonate (PC)
• Finish: Powder-coated
• Color: RAL 7037 (dust grey)
• Seal Material: NBR (nitrile rubber)
• Protection Rating: IP65
• Panel Cut-out: 24 x 57 mm
• Mounting Dimensions: 70 x 17.5 mm
• Weight: 61g

Applications: Designed for industrial panel mounting applications requiring robust bulkhead solutions for Han A® connector systems. Ideal for control cabinets, automation equipment, and industrial machinery where secure panel feed-through connections are needed.

Benefits:

• Bulkhead design enables secure panel mounting with feed-through capability
• Low construction profile minimizes space requirements behind panels
• IP65 protection ensures reliability in demanding industrial environments
• Single locking lever (Han-Easy Lock®) provides secure and easy operation
• Aluminium die-cast construction ensures durability and corrosion resistance
• NBR seal provides excellent sealing performance across temperature ranges
• Compatible with Han A® 10A series inserts and accessories

Download existing graphical data for this product:

• Technical Data Sheet
• Product Declaration Certificate
• EPLAN Data Portal - CAD & Engineering Data
