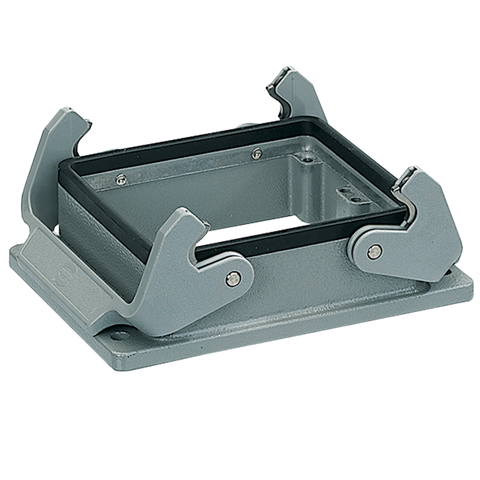

Harting Bulkhead housing, double locking, size 32B

Product Overview

The Han 32B-HBM-DL (SKU: 09300320301) is the ultimate heavy-duty aluminum die-cast bulkhead mounting housing designed for the most demanding high-capacity industrial connector applications. Features double locking lever mechanism and provides maximum connectivity solutions for size 32B applications requiring the highest density and performance in industrial environments.

Key Features:

• Ultimate Capacity: Size 32B - the largest available in the Han® B series for maximum density
• Double Locking Lever (DL): Secure dual-lever locking mechanism for enhanced connection security
• Bulkhead Mounting (HBM): Panel-mount design for through-wall installations
• Low Construction Profile: Space-efficient design while maintaining maximum capacity
• Aluminum Die-Cast: Robust construction with powder-coated RAL 7037 finish
• NBR Sealing: High-performance nitrile rubber seals for environmental protection

Technical Specifications:

• Article Number: 09 30 032 0301
• Category: Hoods/Housings
• Series: Han® B
• Size: 32B (ultimate capacity)
• Type: Bulkhead housing with double locking lever
• Construction: Low profile
• Material: Aluminum die-cast, powder-coated
• Finish: RAL 7037 (dust grey)
• Locking: Double locking lever (polycarbonate + stainless steel)
• Sealing Material: NBR (Nitrile Butadiene Rubber)

Compliance & Certifications:

• RoHS Compliant: Yes
• Material Flammability: UL 94 V-0 rating
• Operating Temperature: -40°C to +125°C
• ELV Status: Compliant
• REACH: No restricted substances
• Industrial Standards: Suitable for the most demanding industrial applications

Applications: Essential for the most demanding high-power, high-density industrial applications requiring ultimate connectivity capacity. Ideal for large-scale power distribution systems, complex automation installations, and industrial equipment where maximum signal and power routing density is critical.

Compatibility:

• Compatible with Han® B series size 32B inserts and mating connectors
• Accommodates two size 16B inserts for maximum flexibility
• Supports two 4-module frames from the Han Modular Series
• Works with Han D, DD, E, EE, HsB, Com and Modular series inserts
• Should not be mated or unmated under electrical load
• Polarization recommended for line arrangements to prevent wrong connections
