Product Information

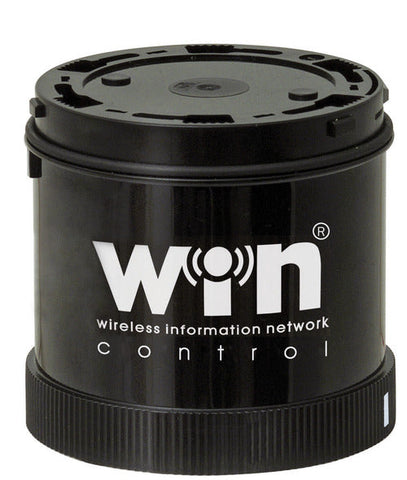

WIN slave control KS 71 24VAC/DC BK

Article Number: 860.640.22

Product Description

Manual switching with the wireless system (initiate/control/call system etc.)

Head of Line function

Logic module can link the status of other transmitters with logic commands to the WIN slave control

Technical Data

Mechanical Data

• Height: 66.00 mm
• Diameter: 70.00 mm
• Materials: PC
• Housing Colour: Black
• Protection Category: IP65
• Connection: USB
• Working Temperature Minimum: -20°C
• Working Temperature Maximum: +50°C
• Weight with Packaging: 100.00 g
• Product Weight: 88.00 g

Electrical Data

• Operating Voltage: 24V
• Operating Voltage Type: AC/DC
• Operating Voltage Frequency: 50Hz
• Operating Voltage Tolerance: +/- 10%
• Rated Operational Voltage: 24 VDC
• Rated Operational Current: 70.00 mA
• Rated Inrush Current: < 1A
• Protection Class: Protection class 2
• Pollution Degree: 3
• Connectivity: WIN

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: No
• Conforms with UL: No
• Conforms with FCC: No
• Conforms with IC: No
• EAC Certificate Available: Yes
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No
