Maxi Rotating 12/24VAC/DC BU

Product Information

Article Number: 262.540.70

Type of Fixing: Adapter required

Light Colour: Choose a Light colour

Voltage Options: 12V; 24V AC/DC, 115-230V AC

Product Info

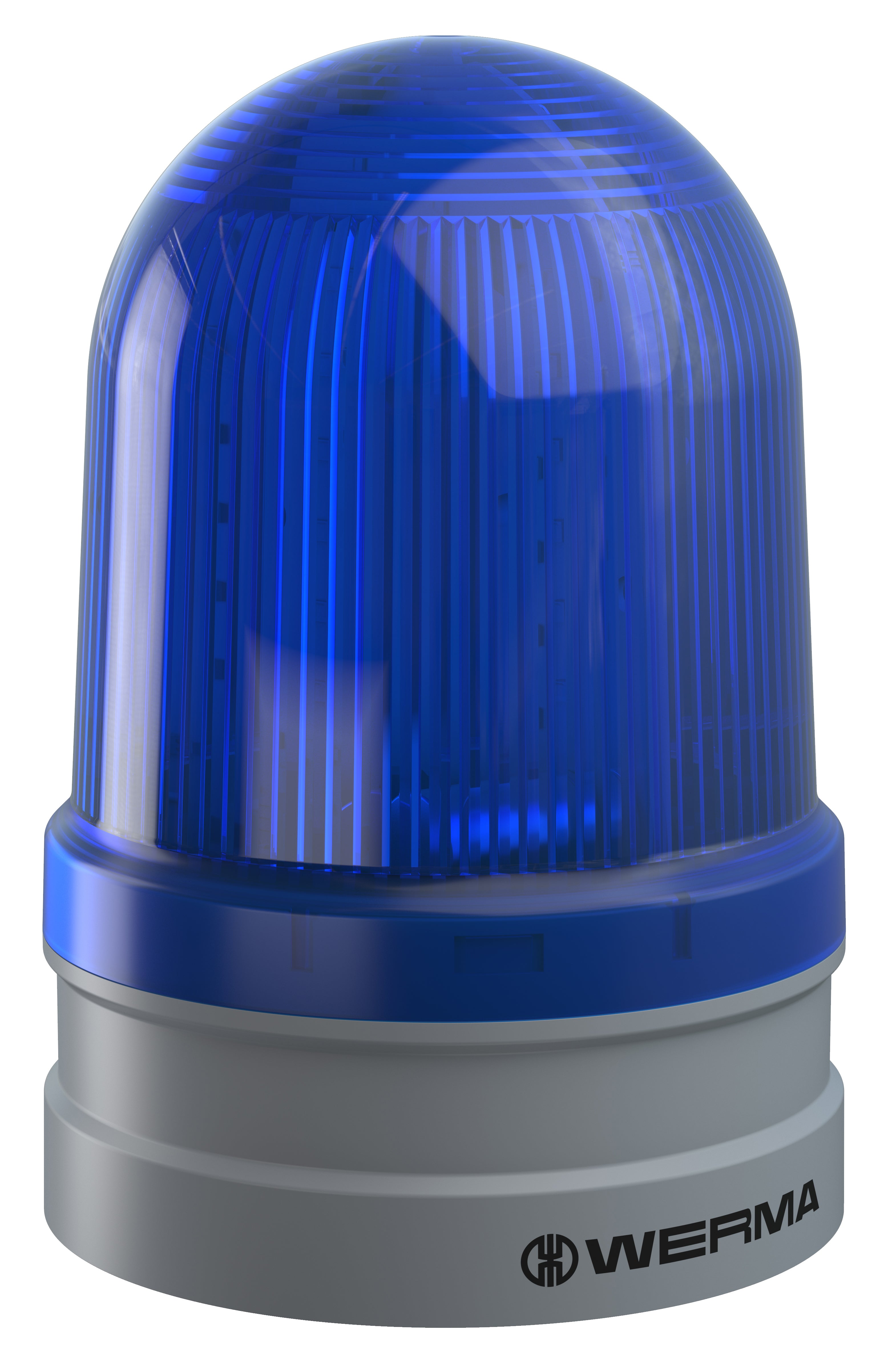

Description: Large LED rotating beacon from the EvoSIGNAL series. Flexible signalling over long distances (> 20 m distance). Please order suitable mounting adapter separately.

Technical Data

Mechanical Data

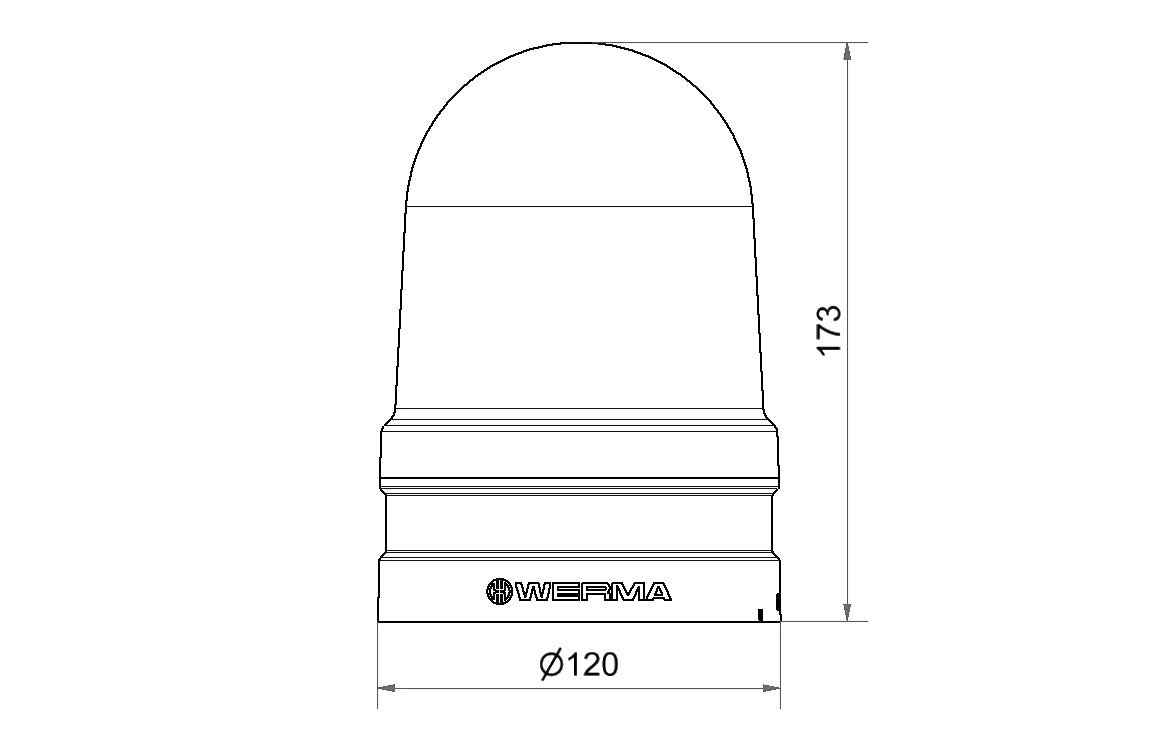

• Diameter: 120.00 mm
• Height: 173.00 mm
• Materials: PC; PC/ABS
• Dome Colour: Blue
• Housing Colour: Grey
• Protection Category: IP66
• Connection: Push-in terminal
• Cross-sectional Area Maximum: 1.50 mm² / 16 AWG
• Cross-sectional Area Minimum: 0.25 mm² / 24 AWG
• Type of Fixing: Adapter required
• Working Temperature Minimum: -30°C
• Working Temperature Maximum: +60°C
• Weight with Packaging: 538.00 g
• Product Weight: 438.00 g

Electrical Data

• Operating Voltage: 12V; 24V
• Operating Voltage Type: AC/DC
• Operating Voltage Frequency: 50Hz
• Operating Voltage Tolerance: +/- 10%
• Rated Operational Voltage: 24 VDC
• Rated Operational Current: 550.00 mA
• Protection Class: Protection class 2
• Pollution Degree: 3
• Rated Inrush Current: < 1800 mA
• Overvoltage Category: III

Optical Data

• Light Source: LED
• Optical Signal Image: Revolving
• Service Life Optical: 50,000 h minimum
• Rotation Speed (rpm): 180.00
• Pulse & Pause Duration [ms]: 55 ON, 278 OFF

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: No
• UL Type Rating: Type 12
• Conforms with UL: cULus
• Conforms with FCC: No
• Conforms with IC: No
• EAC Certificate Available: Yes
• ICAO Certification: No
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No
• MTTF-value [years]: No
