Description
xSpecifications
x| IP Rating | IP66 |
| Compliance/Certifications | CE / EAC / RoHS directive / UKCA / WEEE |
| Temperature: Operating / Dynamic | -30°C to 60 °C |
| Material: Housing / Grip | ABS / PC |

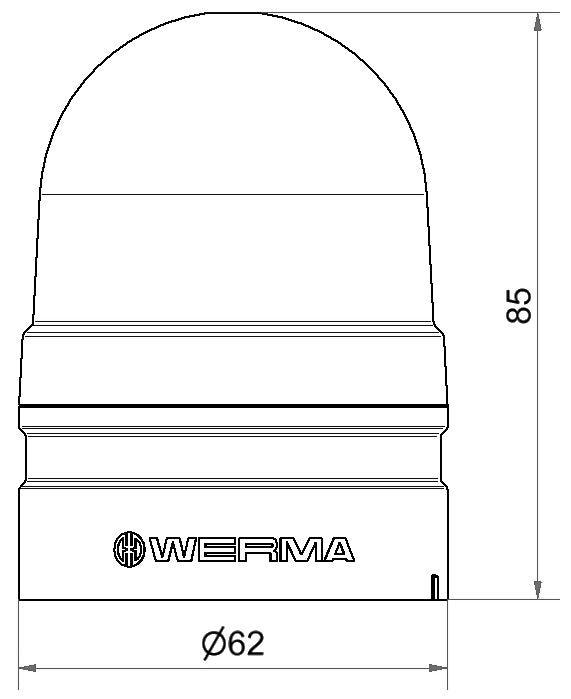

| Part Height (mm) | 85mm |
| Part Diameter (mm) | 62mm |
| Weight (g) | 71g |
| Conductor Cross-section | cross-sectional area minimum 0,25mm² / 24AWG - cross-sectional area maximum 1,50mm² / 16AWG |
| Connection Type | Push-in terminal |
| Operating Voltage | 24 V |
| Rated Voltage | 24 VDC |
| Rated Operating Current | 66 mA |
| Colour | Grey |
