Werma MC55 Compact LED installation beacon, 3 colour, 85dB, 24VDC
Werma MC55 Compact LED installation beacon, 3 colour, 85dB, 24VDC Werma
Werma MC55 Compact LED installation beacon, 3 colour, 85dB, 24VDC
Werma MC55 Compact LED installation beacon, 3 colour, 85dB, 24VDC Werma
Werma MC55 Compact LED installation beacon, 3 colour, 85dB, 24VDC

Werma MC55 Compact LED installation beacon, 3 colour, 85dB, 24VDC Part number 240.240.55

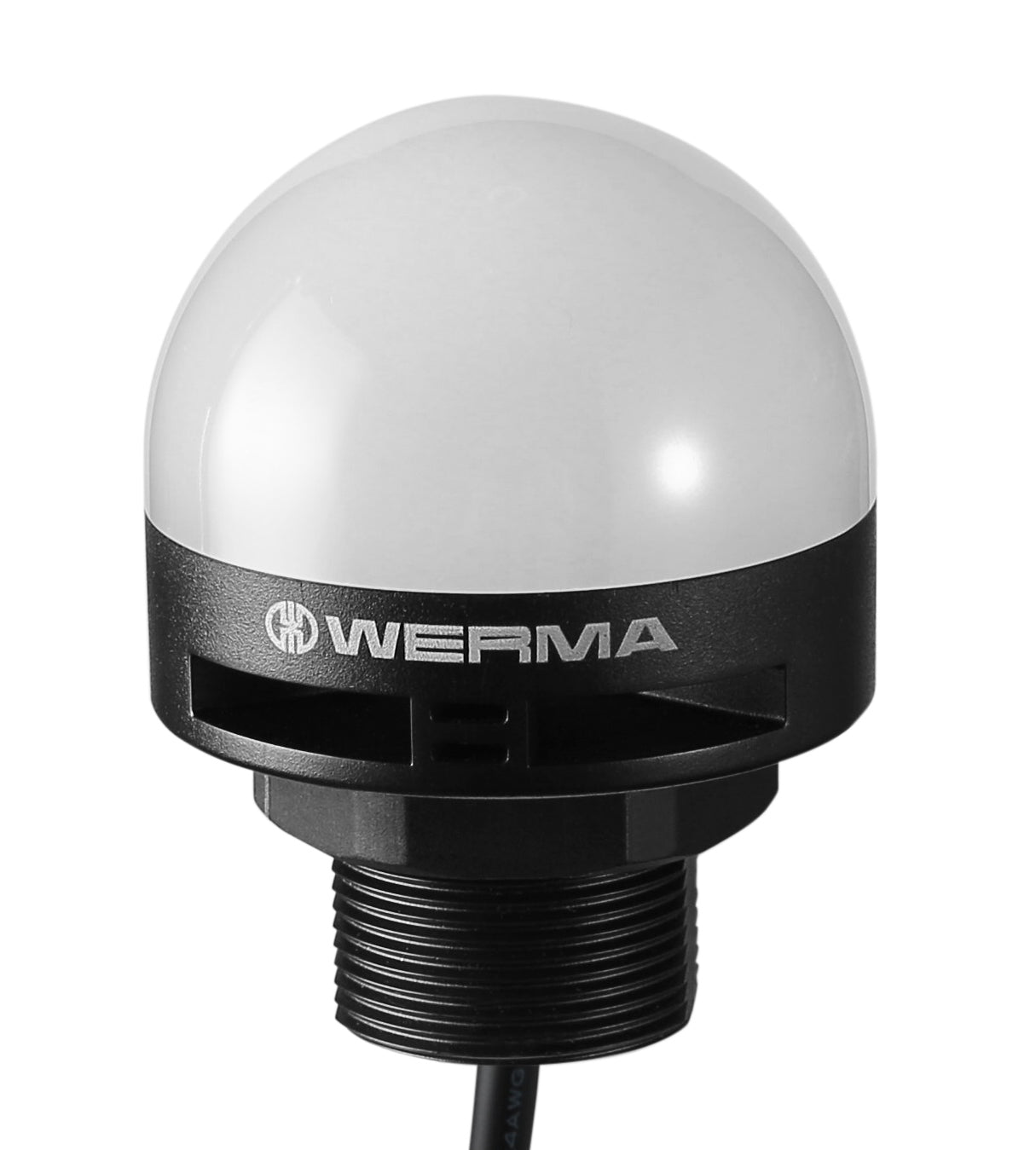

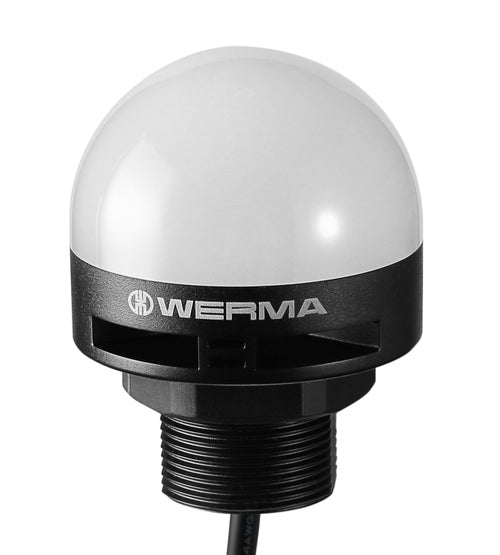

LED buzzer combi with versatile applications Compact LED recessed light with continuous light and an attention- grabbing buzzer (85 dB) with 55 mm diameter. The tricolour version combines the most common colour combination red, yellow and green in one signalling device. Control is via a pre-assembled M12 connector.
Vendor: Werma
Rubicon Industrial Technology is the exclusive South African distributor for Werma.
Availability: In stock
Product type: Control Panel
Please hurry! Only 9 left in stock
Description
Description
x

LED buzzer combi with versatile applications Compact LED recessed light with continuous light and an attention- grabbing buzzer (85 dB) with 55 mm diameter. The tricolour version combines the most common colour combination red, yellow and green in one signalling device. Control is via a pre-assembled M12 connector.

Specifications
Specifications
x

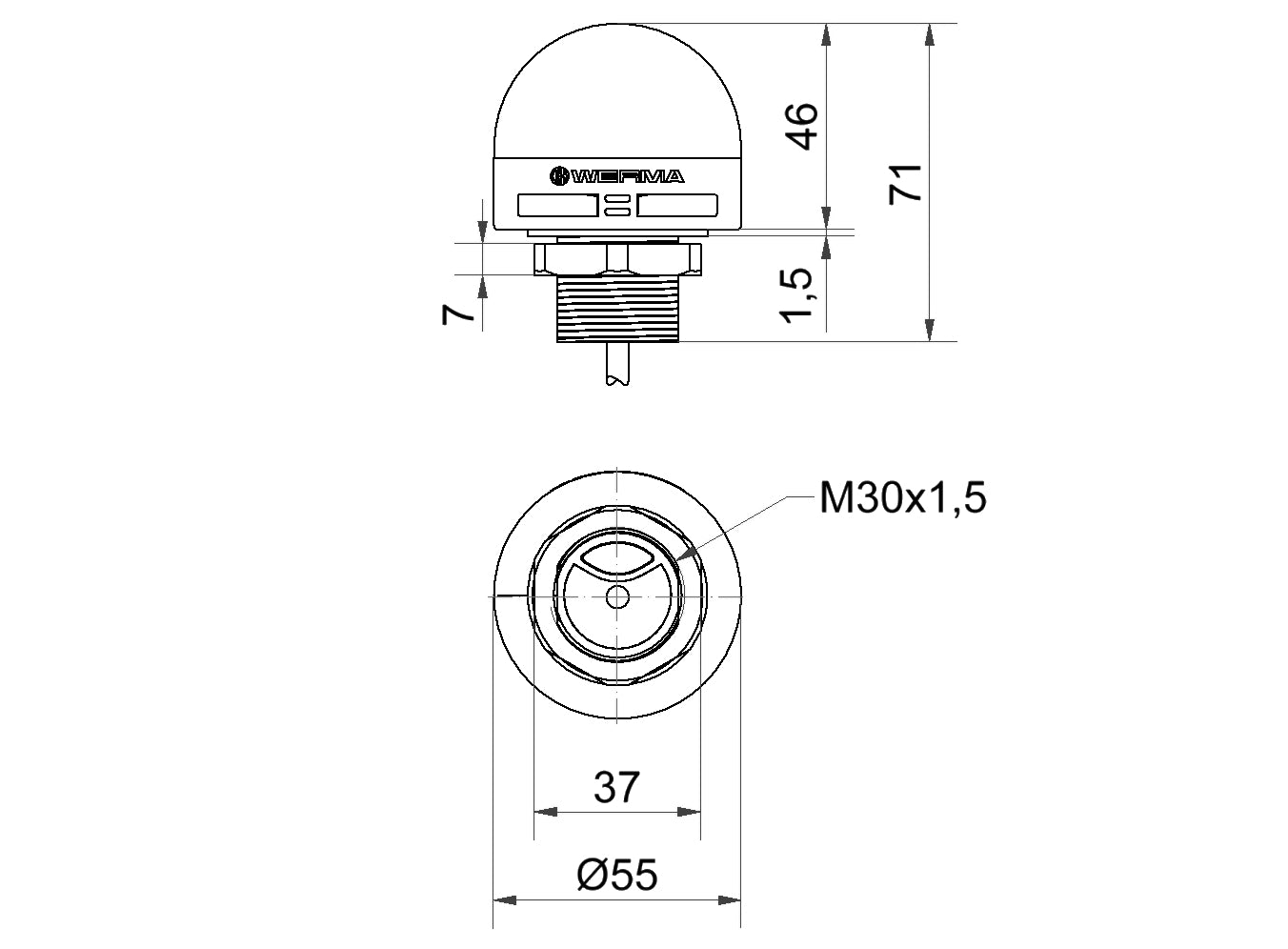

Cable length100
Height71
Diameter55
ConnectionM12 plug 5-pole
MaterialsPC; PC/ABS
Dome colourTranclucent
Housing colourBlack
Protection categoryIP65
Tension reliefPull-out protection
Type of fixingBuilt-in mounting
Weight with packaging101
Working temperature minimum-20°C
IK-Code (IEC 62262)IK06
Working temperature maximum+50°C
Product weight75
Operating voltage24V
Operating voltage typeDC
Operating voltage tolerance+/- 10%
Rated operational voltage24 VDC
Rated operational current45
Rated inrush current<150mA
Protection classProtection class 2
Overvoltage categoryI
Pollution degree3; In the connection area: 2
insulation voltageUi = 50V / Uimp = 330V
Light sourceLED
Light colourMC 3 colours
Optical signal imagePermanent
Service life optical50,000 h maximum
Conforms with CEYes
Conforms with RoHS directiveYes
WEEEYes
Conforms with ATEX-directiveNo
Conforms with RED directiveNo
Conforms with CCCNo
Conforms with FCCNo
Conforms with ISEDNo
Conforms with ULNo
EAC certificate availableNo
Conforms with UKCA (Importer)Yes
Conforms with AS-INo
Conforms with CMIMNo
Conforms with RoHS CN10 years
ICAO CertificationNo
Conforms with DNVNo
Conforms with VdSNo
Conforms with TÜVNo
MTTFd-value [years]172
Volume (max) at 1m distance85 dB(A)
Acoustic signal imagePulse tone
Audio frequency3400
Number of tones1 tone
Acoustic service life5,000 h maximum
Documents
Documents
x
Download Datasheet
