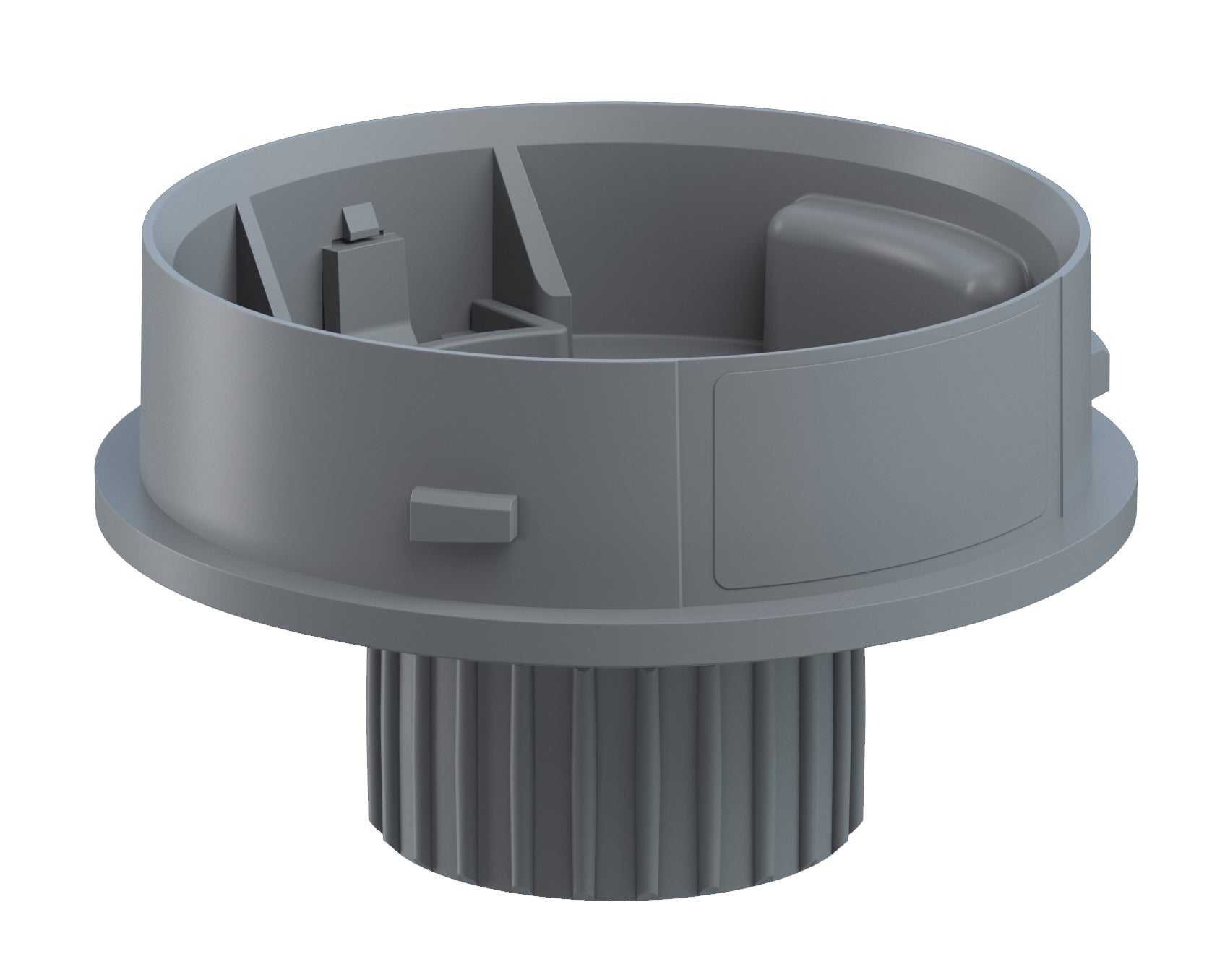

Mini Adapter Installation mount M22 GY

Product Information

Article Number: 260.700.03

Type of fixing: Built-in mounting

Product Info

Adapter for M22 panel-mounting (max cable dia = 9mm)

Accessories for the EvoSIGNAL series (MINI)

Technical Data

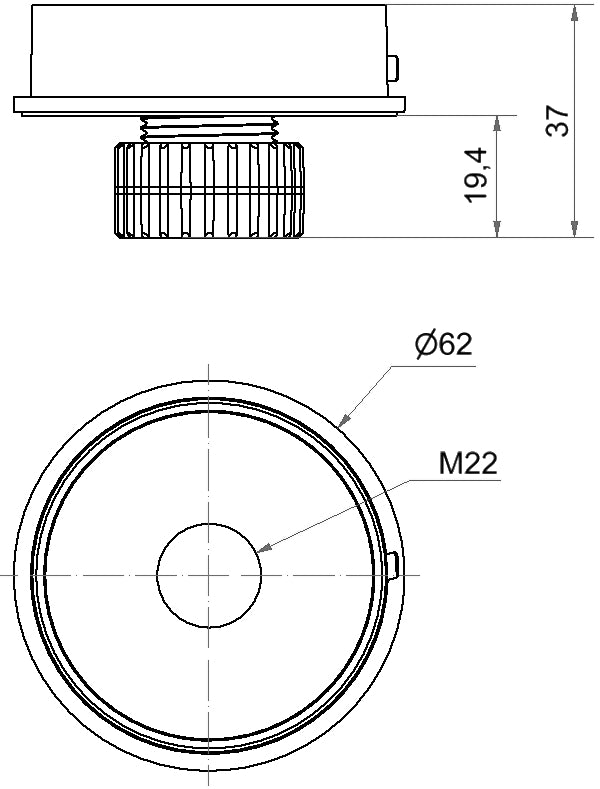

Mechanical Data

• Diameter: 62.000000 mm
• Height: 33.000000 mm
• Materials: PC/ABS
• Housing colour: Grey
• Protection category: IP66
• Cable entry: Through hole
• Type of fixing: Built-in mounting
• Working temperature minimum: -30°C
• Cable entry maximum: d = 12 mm
• Working temperature maximum: +60°C
• Weight with packaging: 25.000 g
• Product weight: 25.000 g

Electrical Data

• Pollution degree: 3; In the connection area: 2

Authorisation Data

• Conforms with CE: No
• Conforms with RoHS directive: No
• WEEE: No
• Conforms with ATEX-directive: No
• Conforms with CCC: No
• UL Type Rating: Type 12
• Conforms with UL: cULus
• Conforms with FCC: No
• Conforms with IC: No
• EAC certificate available: Yes
• ICAO Certification: No
• Conforms with UKCA (Importer): No
• Conforms with AS-I: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No
