Product Information

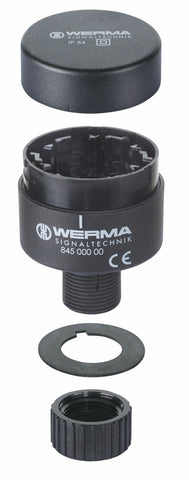

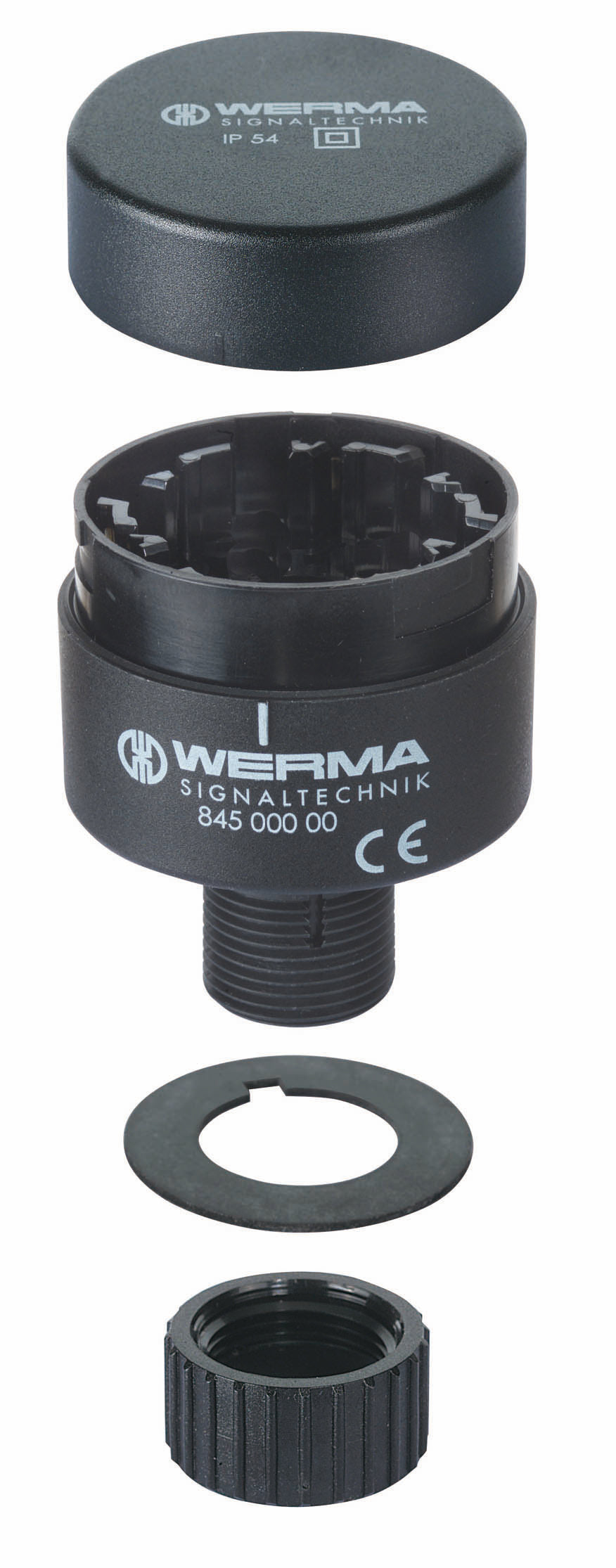

Terminal element 12-230VAC/DC BK

Article Number

845.000.00

Type of Fixing

Single-hole mounting; Tube mounting

Product Info

• The right solution for any type of mounting due to a wide range of accessories
• Bayonet fixture ensures simple mounting and removal of signal elements

Technical Data

Mechanical Data

• Height: 58.00 mm
• Diameter: 52.00 mm
• Materials: PA-GF
• Housing Colour: Black
• Protection Category: IP54
• Connection: Screw terminals
• Cable Entry: Through hole
• Cross-sectional Area Maximum: 1.50 mm² / 16 AWG
• Type of Fixing: Single-hole mounting; Tube mounting
• Cable Entry Maximum: d = 9 mm
• Working Temperature Minimum: -20°C
• Working Temperature Maximum: +50°C
• Tension Relief: Not present
• Weight with Packaging: 92.00 g
• Product Weight: 78.00 g

Electrical Data

• Operating Voltage: 12-230V
• Operating Voltage Type: AC/DC
• Protection Class: Protection class 2
• Pollution Degree: 3
• Overvoltage Category: II
• Isolation Voltage: Ui = 250V; Uimp = 2.500V

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: No
• Conforms with UL: cULus
• UL Type Rating: Type 12
• Conforms with FCC: No
• Conforms with IC: No
• EAC Certificate Available: Yes
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• Conforms with CMIM: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• MTTF-value [years]: No
• Conforms with TÜV: No

Downloads and Tone Type

• Datasheet (0.25 MB)

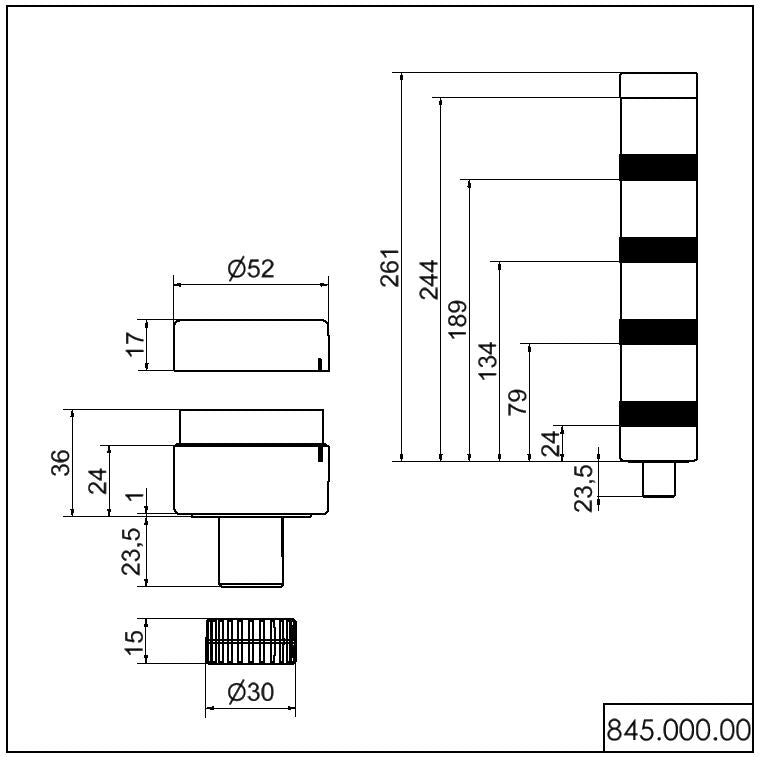

• Dimensional Drawing (0.05 MB)
• CAD Model STP (3.01 MB)
