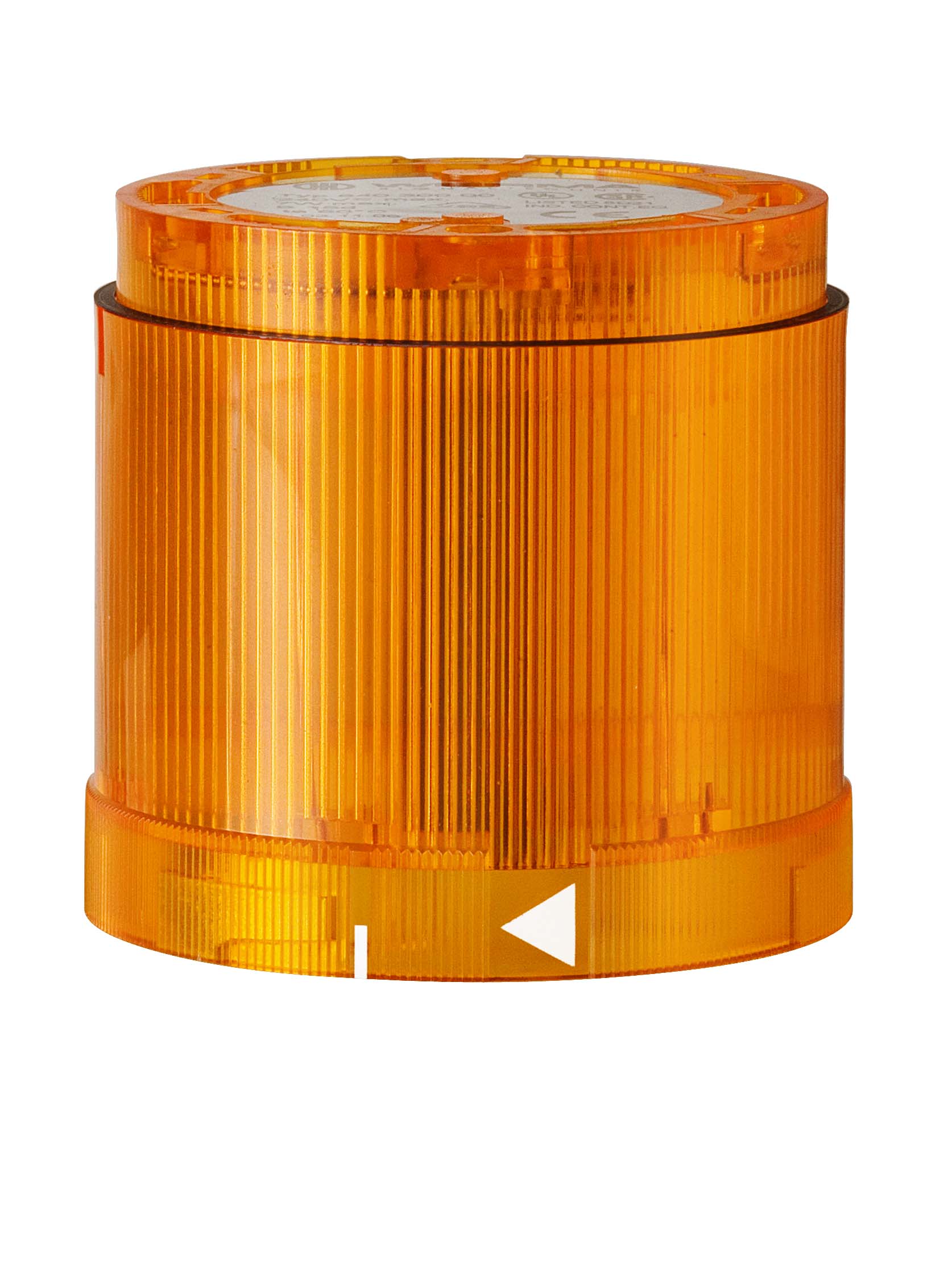

Perm. light element 12-230VAC/DC YE

Product Information

Article Number: 840.300.00

Product Description

Permanent light element from the KombiSIGN 70 series

• Integrated B15d socket to accommodate the light source
• The continuous light indicates a certain condition to the operator

Technical Data

Mechanical Data

• Height: 66.00 mm
• Diameter: 70.00 mm
• Materials: PC
• Dome Colour: Yellow
• Protection Category: IP54
• Working Temperature Minimum: -20°C
• Working Temperature Maximum: +50°C
• Weight with Packaging: 83.00 g
• Product Weight: 66.00 g

Electrical Data

• Operating Voltage: 12-230V
• Operating Voltage Type: AC/DC
• Power Illuminant: max. 5W
• Protection Class: Protection class 2
• Pollution Degree: 3
• Overvoltage Category: II
• Isolation Voltage: Ui = 250V; Uimp = 2.500V

Optical Data

• Light Source: Filament lamp
• Lamp Fitting/Socket: B15d
• Service Life Optical: Depends on bulb

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: No
• Conforms with UL: cULus
• UL Type Rating: Type 12
• Conforms with FCC: No
• Conforms with IC: No
• EAC Certificate Available: Yes
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• Conforms with CMIM: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No

Downloads and Tone Type

• Datasheet (0.24 MB)
• Operating Instructions (1.44 MB)

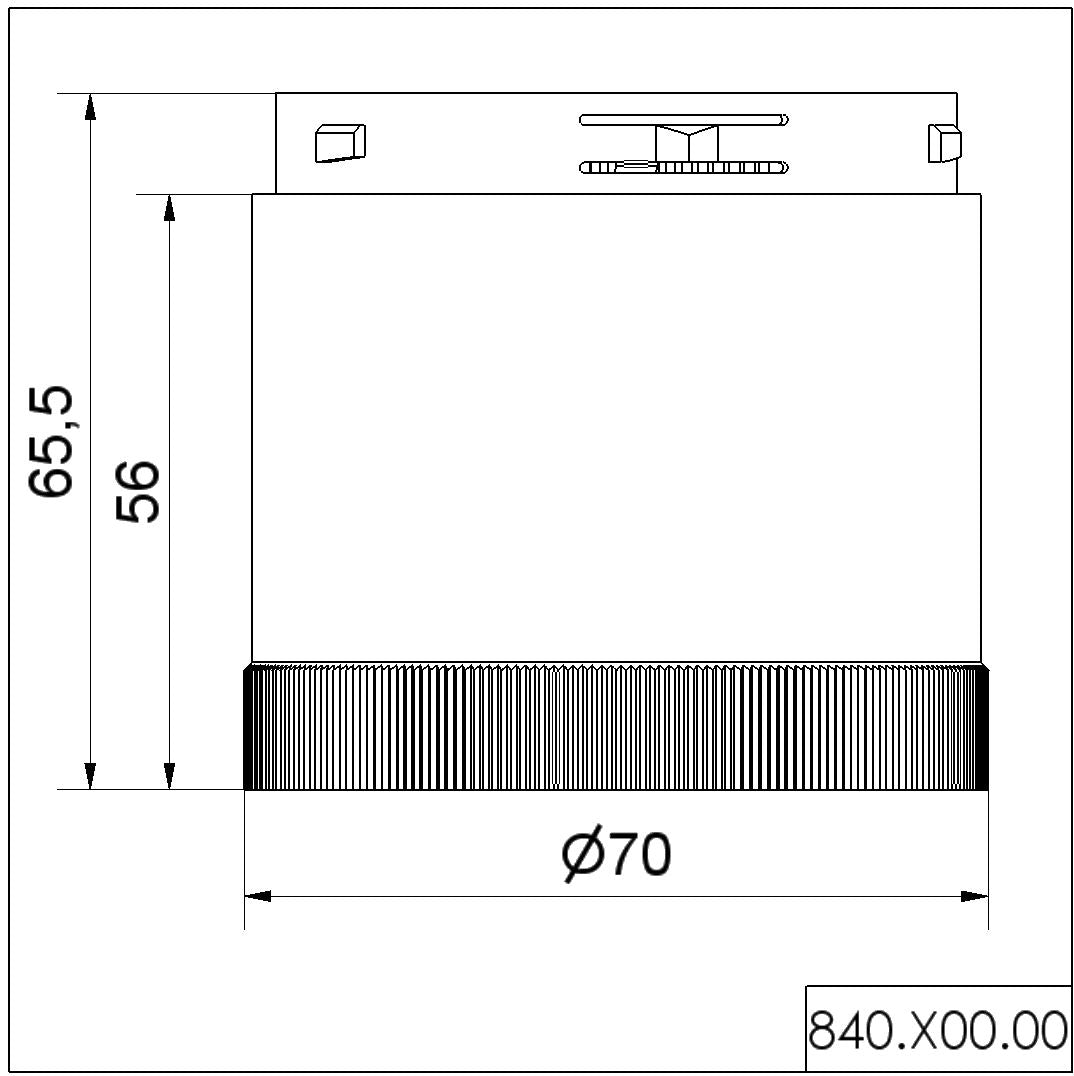

• Dimensional Drawing (0.09 MB)
• CAD Model STP (2.56 MB)
