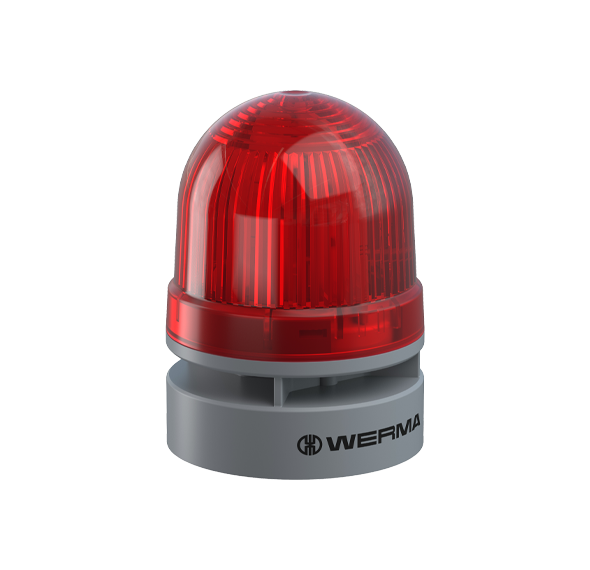

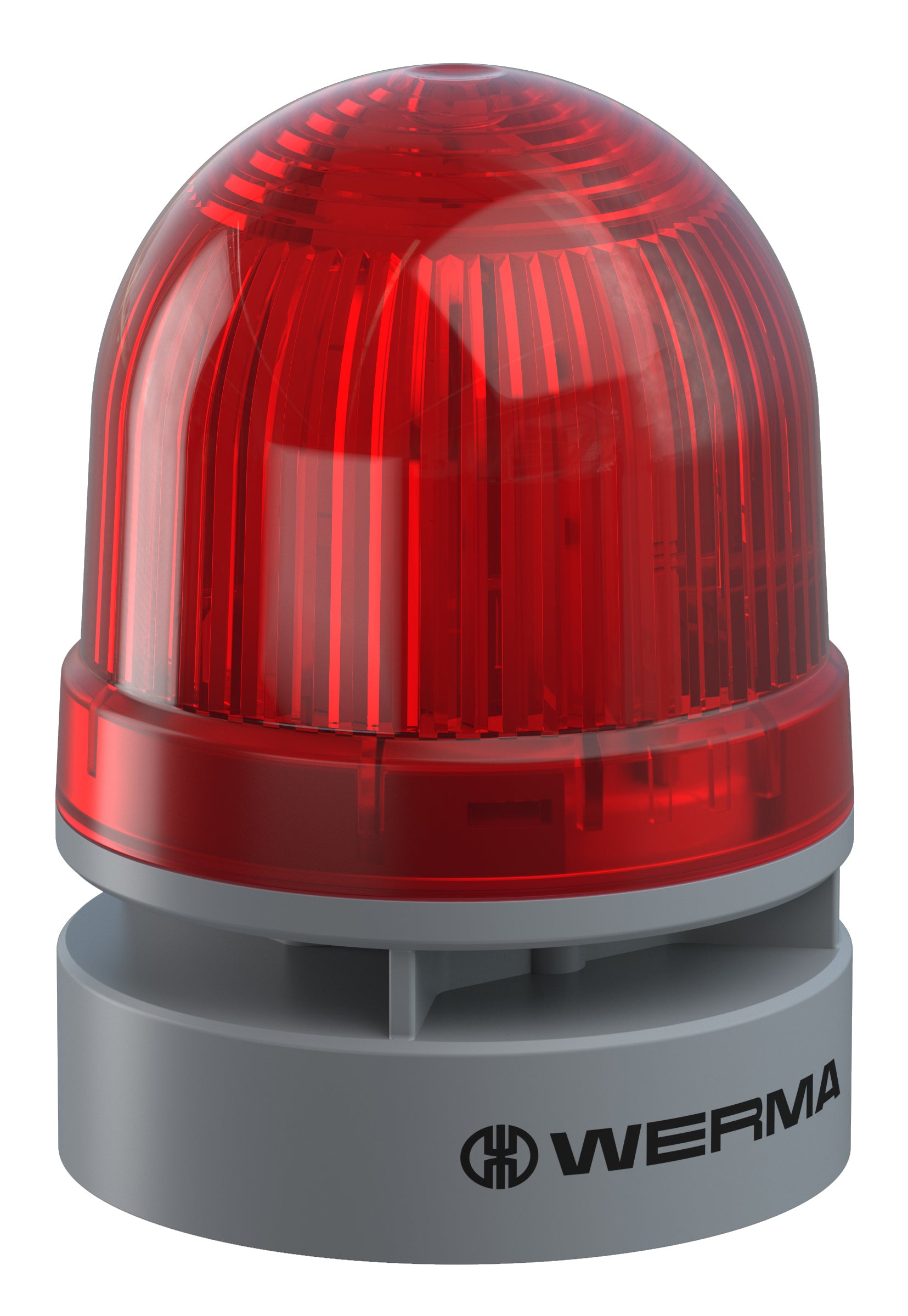

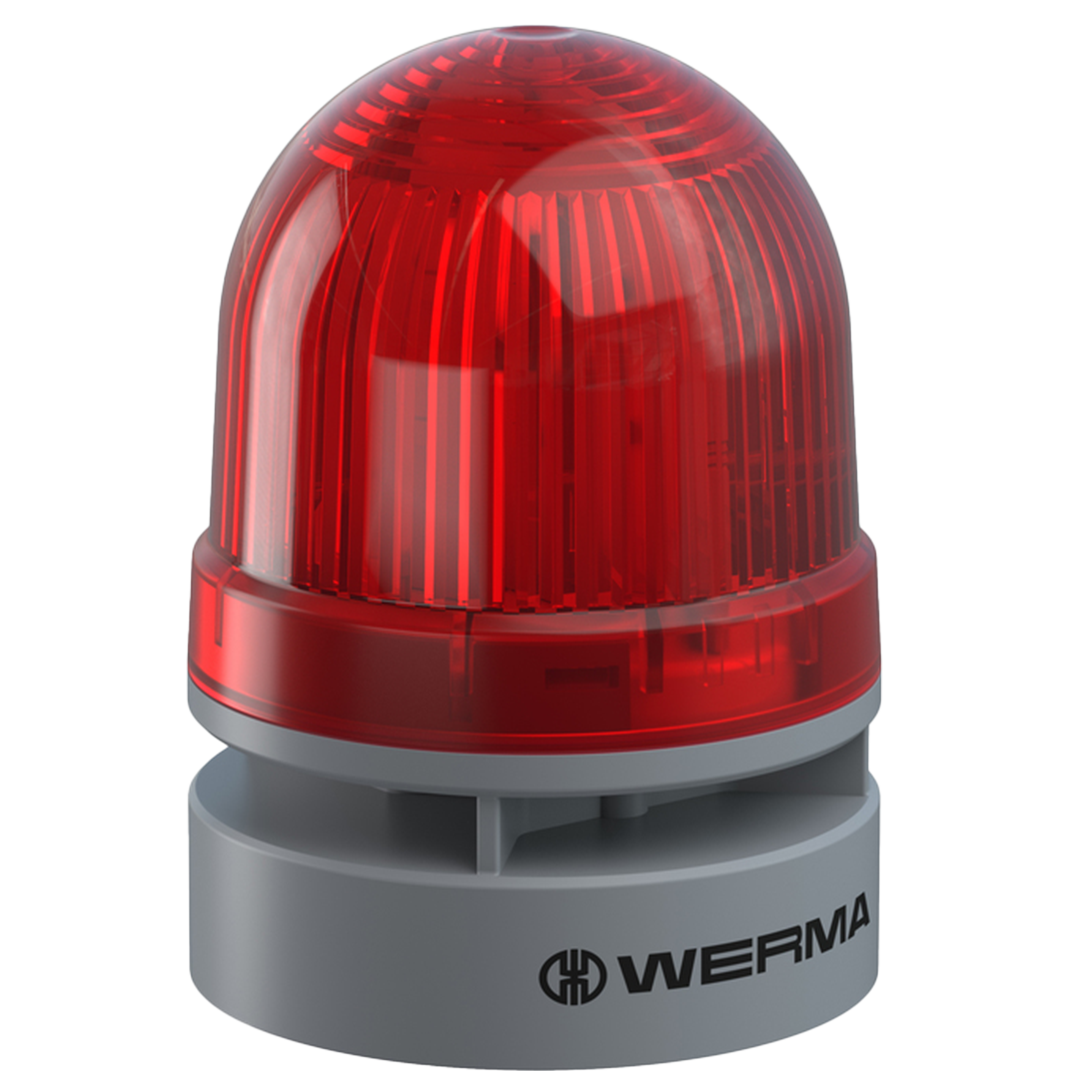

Mini TwinLIGHT Combi 24VAC/DC RD

Product Information

Article Number: 460.110.75

Type of Fixing: Adapter required

Available Options

• Choose a Light Colour
• Choose a Voltage:
  • 12V AC/DC
  • 24V AC/DC
  • 115-230V AC

Technical Data

Mechanical Data

• Diameter: 62.00 mm
• Height: 85.00 mm
• Materials: PC; PC/ABS
• Dome Colour: Red
• Housing Colour: Grey
• Protection Category: IP66
• Connection: Push-in terminal
• Cross-sectional Area Maximum: 1.50 mm² / 16 AWG
• Cross-sectional Area Minimum: 0.25 mm² / 24 AWG
• Working Temperature Minimum: -30°C
• Working Temperature Maximum: +60°C
• Weight with Packaging: 100.00 g
• Product Weight: 78.00 g

Electrical Data

• Operating Voltage: 24V
• Operating Voltage Type: AC/DC
• Operating Voltage Frequency: 50Hz
• Operating Voltage Tolerance: +/- 10%
• Rated Operational Voltage: 24 VDC
• Rated Operational Current: 98.00 mA
• Protection Class: Protection class 2
• Pollution Degree: 3
• Rated Inrush Current: 3000 mA
• Overvoltage Category: I

Optical Data

• Light Source: LED
• Optical Signal Image: Blink; Permanent; TwinLight
• Blink Frequency: 1 Hz
• Service Life Optical: 50,000 h minimum
• Pulse & Pause Duration: 471 ON, 489 OFF

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: No
• UL Type Rating: Type 12
• Conforms with UL: cULus
• Conforms with FCC: No
• Conforms with IC: No
• EAC Certificate Available: Yes
• Conforms with UKCA (Importer): Yes

Audible Data

• Volume (max) at 1m distance: 95.0 dB (A)
• Acoustic Signal Image: Continuous tone; Pulse tone
• Audio Frequency: 4000 Hz
• Number of Tones: 2 tone
• Acoustic Service Life: 5,000 h minimum

Downloads and Tone Type

• Datasheet (0.36 MB)
• Operating Instructions (0.94 MB)
• Video (8.46 MB)

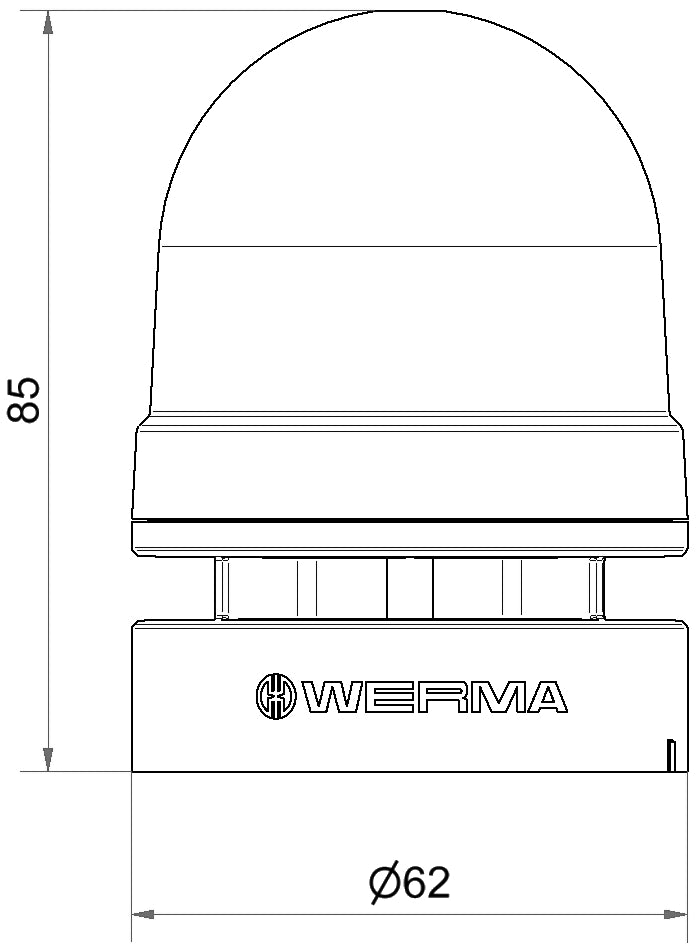

• Dimensional Drawing (0.06 MB)
• CAD Model STP (0.64 MB)
