Description

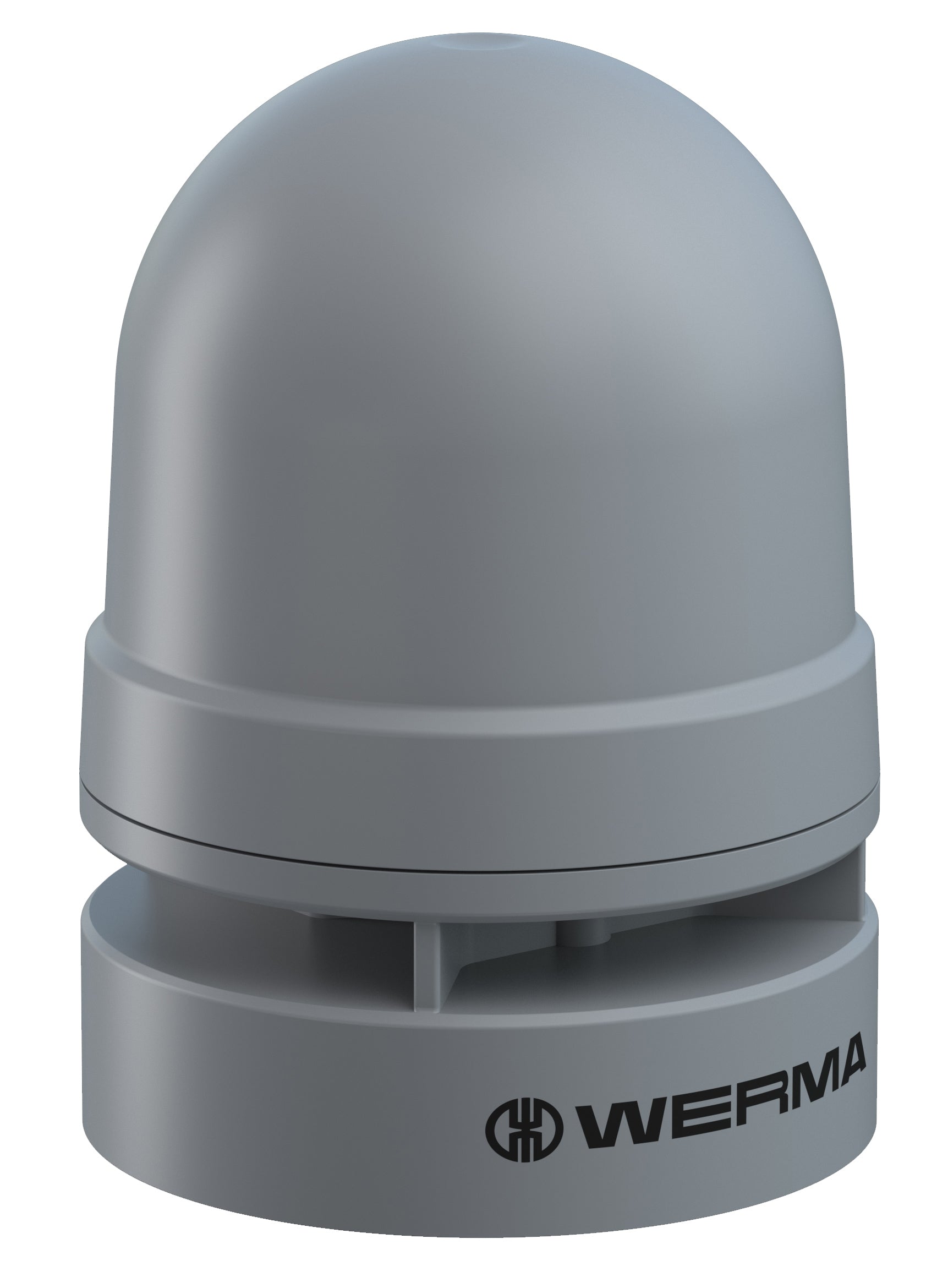

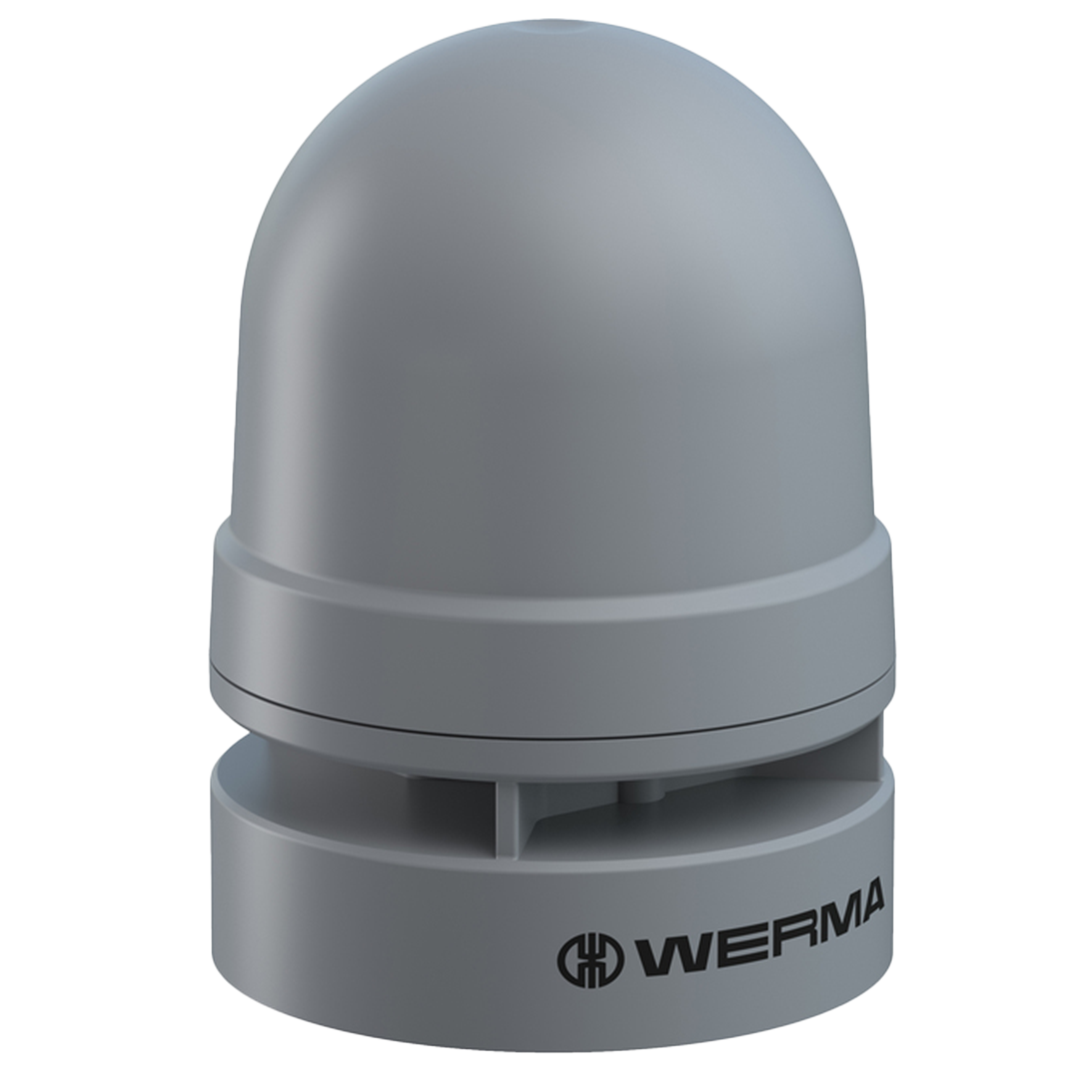

xWerma's Mini Sounder contin/pulse 24V AC / DC is a small multi-tone sounder from the EvoSIGNAL series. The mini sounder is compact in design and can effortlessly be installed where there are limited spaces. Please order the appropriate mounting adapter separately.
Specifications
x| Compliance/Certifications | CE / EAC / RoHS CN / RoHS directive / UKCA / WEEE |
| Temperature: Operating / Dynamic | -30°C to 60°C |
| Material: Housing / Grip | ABS / PC |

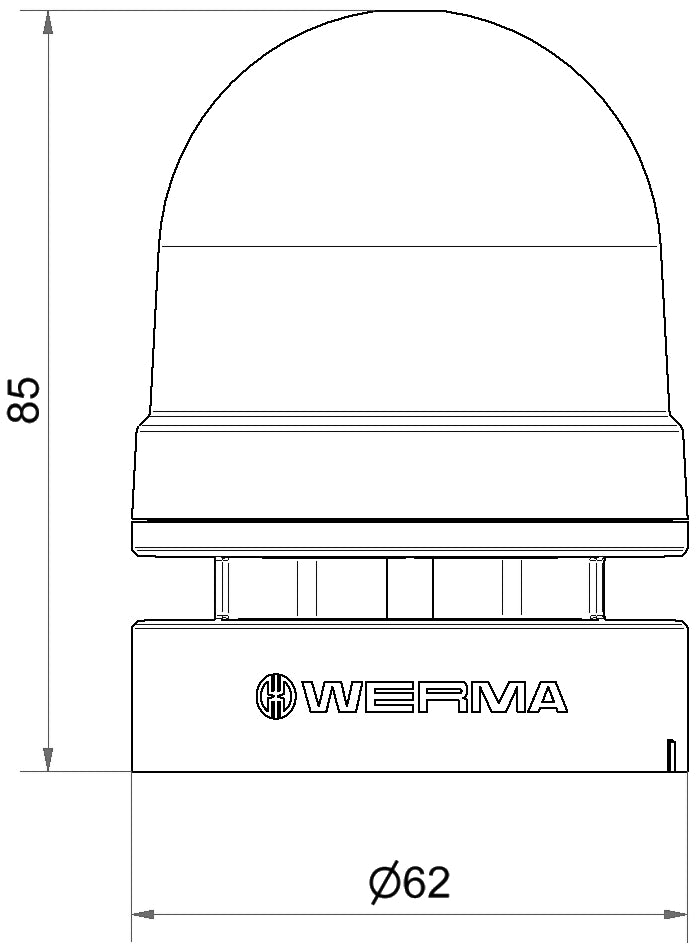

| Part Height (mm) | 85mm |
| Part Diameter (mm) | 62mm |
| Weight (g) | 78g |
| Conductor Cross-section | cross-sectional area minimum 0,25mm² / 24AWG - cross-sectional area maximum 1,50mm² / 16AWG |
| Connection Type | Push-in terminal |
| Operating Voltage | 24 V |
| Rated Voltage | 24 VDC |
| Rated Operating Current | 40 mA |
| Colour | Grey |
