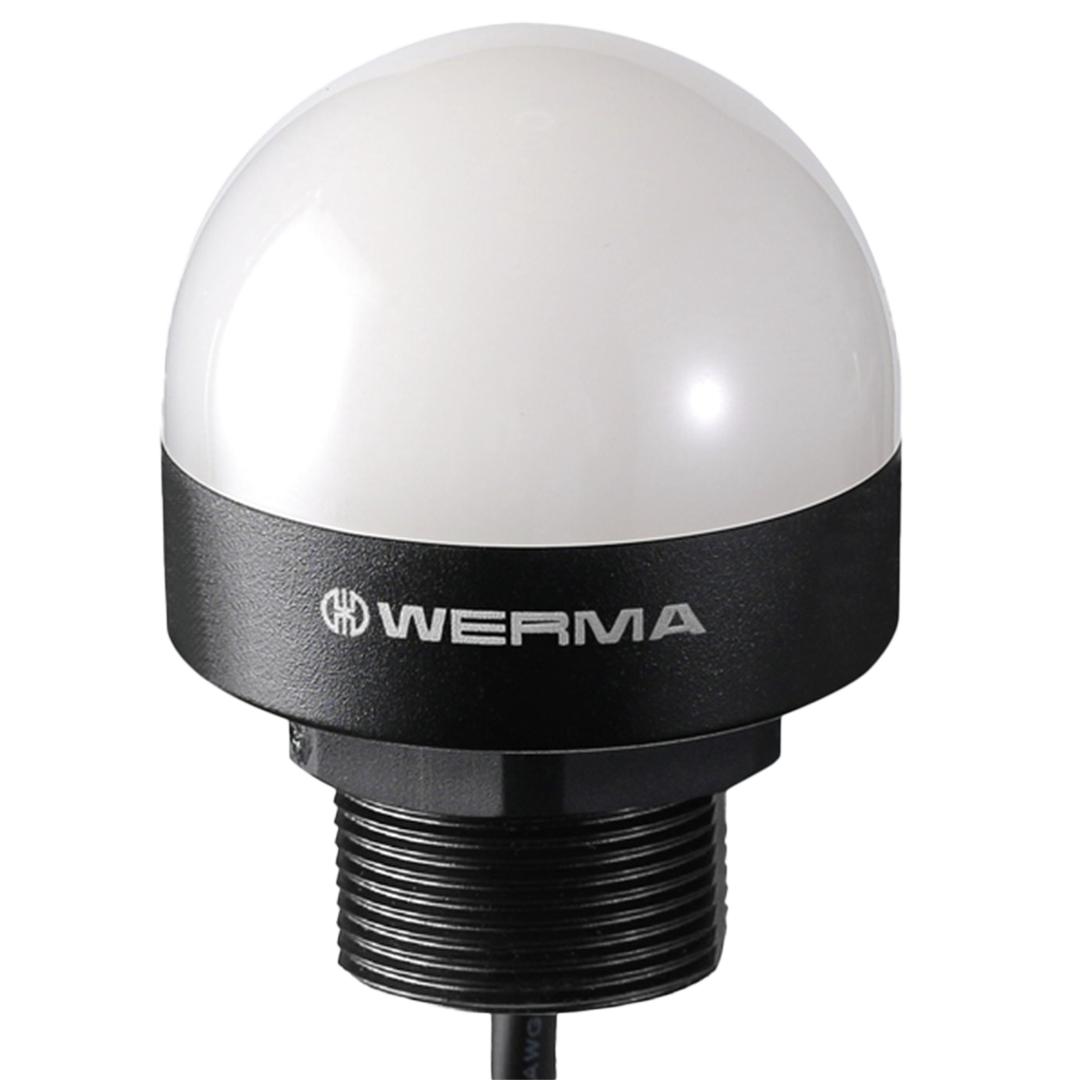

Werma MC55 RGY M12-plug 24VDC, MC 3 colours Part number 24022055

This signal device from Werma's MC55 series provides indication in red, green and yellow, allowing a single unit to convey multiple status conditions. It connects via an M12 plug and operates on a 24VDC supply, simplifying installation and wiring within control panels. It is typically used on machinery and automation...
Vendor: Werma
Rubicon Industrial Technology is the exclusive South African distributor for Werma.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x

This signal device from Werma's MC55 series provides indication in red, green and yellow, allowing a single unit to convey multiple status conditions. It connects via an M12 plug and operates on a 24VDC supply, simplifying installation and wiring within control panels. It is typically used on machinery and automation equipment where compact multi-colour status signalling is required.

Specifications
Specifications
x
Cable length100
Height71
Diameter55
ConnectionM12 plug 5-pole
MaterialsPC; PC/ABS
Dome colourTranclucent
Housing colourBlack
Protection categoryIP65
Tension reliefPull-out protection
Type of fixingBuilt-in mounting
Weight with packaging97
Working temperature minimum-20°C
IK-Code (IEC 62262)IK06
Working temperature maximum+50°C
Product weight68
Operating voltage24V
Operating voltage typeDC
Operating voltage tolerance+/- 10%
Rated operational voltage24 VDC
Rated operational current45
Rated inrush current<150mA
Protection classProtection class 2
Overvoltage categoryI
Pollution degree3; In the connection area: 2
insulation voltageUi = 50V / Uimp = 330V
Light sourceLED
Light colourMC 3 colours
Optical signal imagePermanent
Service life optical50,000 h maximum
Conforms with CEYes
Conforms with RoHS directiveYes
WEEEYes
Conforms with ATEX-directiveNo
Conforms with RED directiveNo
Conforms with CCCNo
Conforms with FCCNo
Conforms with ISEDNo
Conforms with ULNo
EAC certificate availableNo
Conforms with UKCA (Importer)Yes
Conforms with AS-INo
Conforms with CMIMNo
Conforms with RoHS CN25 years
ICAO CertificationNo
Conforms with DNVNo
Conforms with VdSNo
Conforms with TÜVNo
MTTFd-value [years]207
