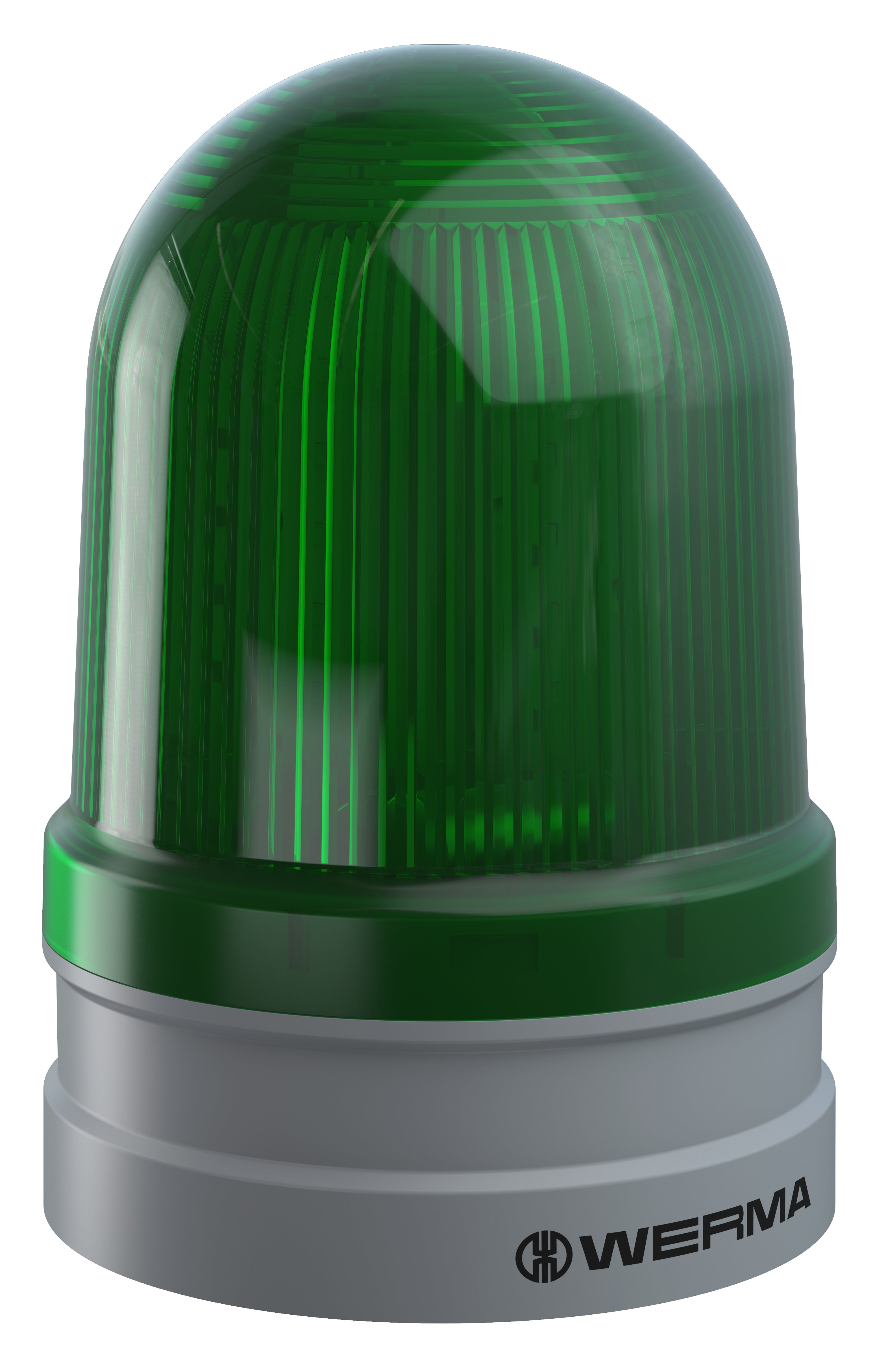

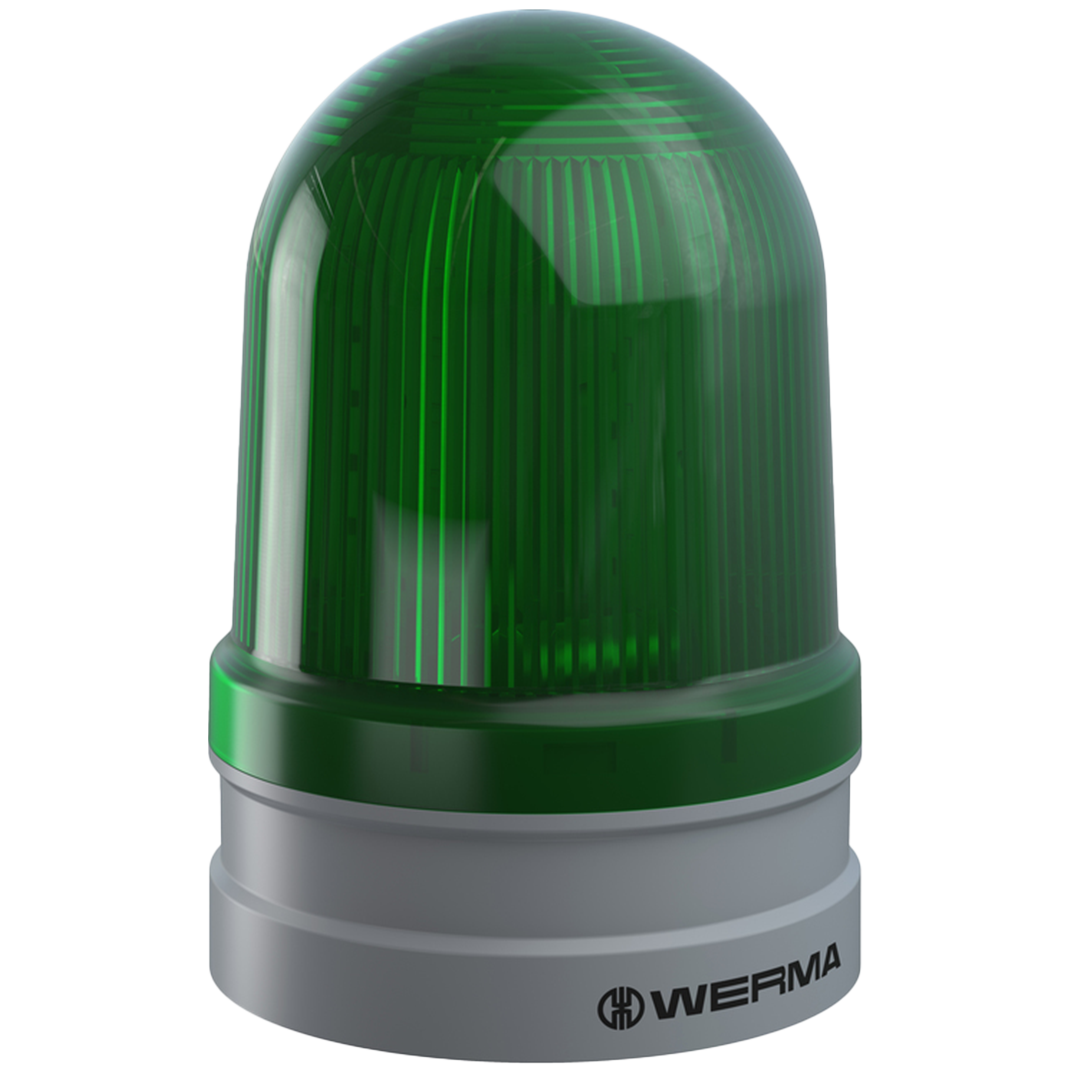

Maxi TwinLIGHT 12/24VAC/DC GN

Product Information

Article Number: 262.210.70

Type of Fixing: Adapter required

Choose a Light Colour: (Options not specified)

Choose a Voltage: 12V; 24V AC/DC, 115-230V AC

Product Info

Large LED luminaire from the EvoSIGNAL series

• Flexible signalling over long distances (> 20 m distance)
• TwinLIGHT: Two luminous images in one product (continuous and flashing)
• Please order suitable mounting adapter separately

Technical Data

Mechanical Data

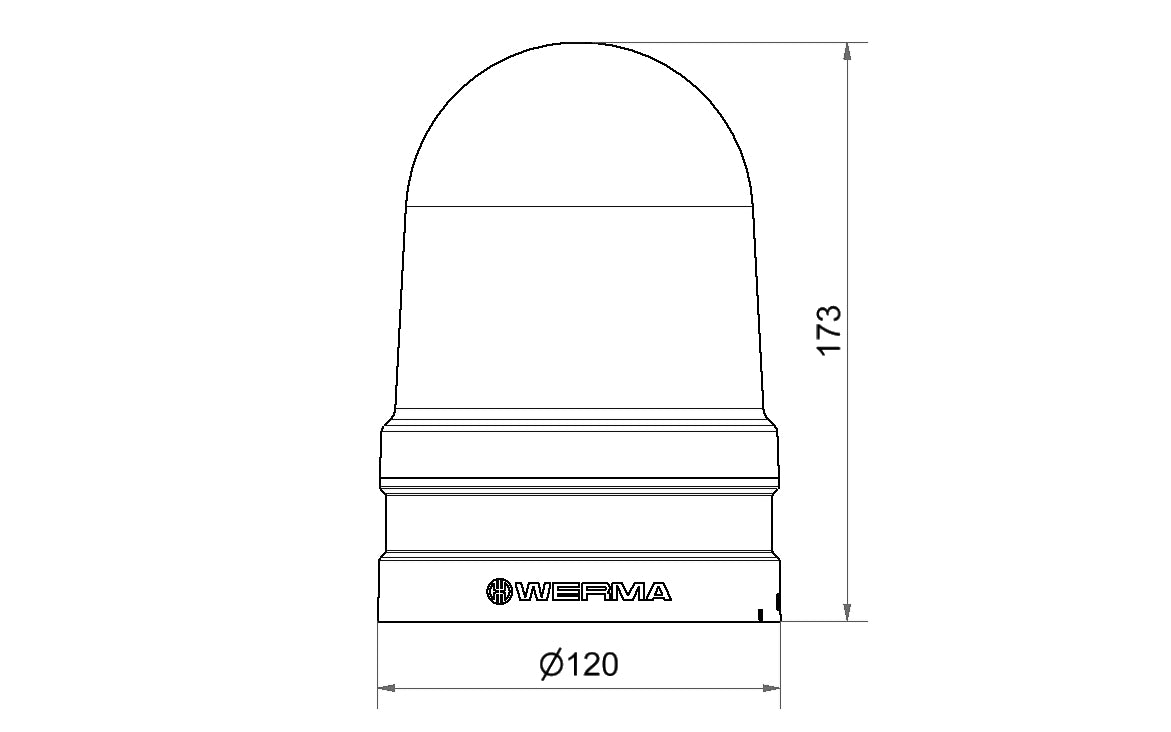

• Diameter: 120.00 mm
• Height: 173.00 mm
• Materials: PC; PC/ABS
• Dome Colour: Green
• Housing Colour: Grey
• Protection Category: IP66
• Connection: Push-in terminal
• Cross-sectional Area Maximum: 1.50 mm² / 16 AWG
• Cross-sectional Area Minimum: 0.25 mm² / 24 AWG
• Type of Fixing: Adapter required
• Working Temperature Minimum: -30°C
• Working Temperature Maximum: +60°C
• Weight with Packaging: 498.00 g
• Product Weight: 398.00 g

Electrical Data

• Operating Voltage: 12V; 24V
• Operating Voltage Type: AC/DC
• Operating Voltage Frequency: 50Hz
• Operating Voltage Tolerance: +/- 10%
• Rated Operational Voltage: 24 VDC
• Rated Operational Current: 700.00 mA
• Protection Class: Protection class 2
• Pollution Degree: 3
• Rated Inrush Current: < 1800 mA
• Overvoltage Category: III

Optical Data

• Light Source: LED
• Optical Signal Image: Blink; Permanent; TwinLight
• Blink Frequency: 1 Hz
• Service Life Optical: 50,000 h minimum
• Pulse & Pause Duration [ms]: 484 ON, 480 OFF

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: No
• UL Type Rating: Type 12
• Conforms with UL: cULus
• Conforms with FCC: No
• Conforms with IC: No
• EAC Certificate Available: Yes
• ICAO Certification: No
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No
• MTTF-value [years]: No
