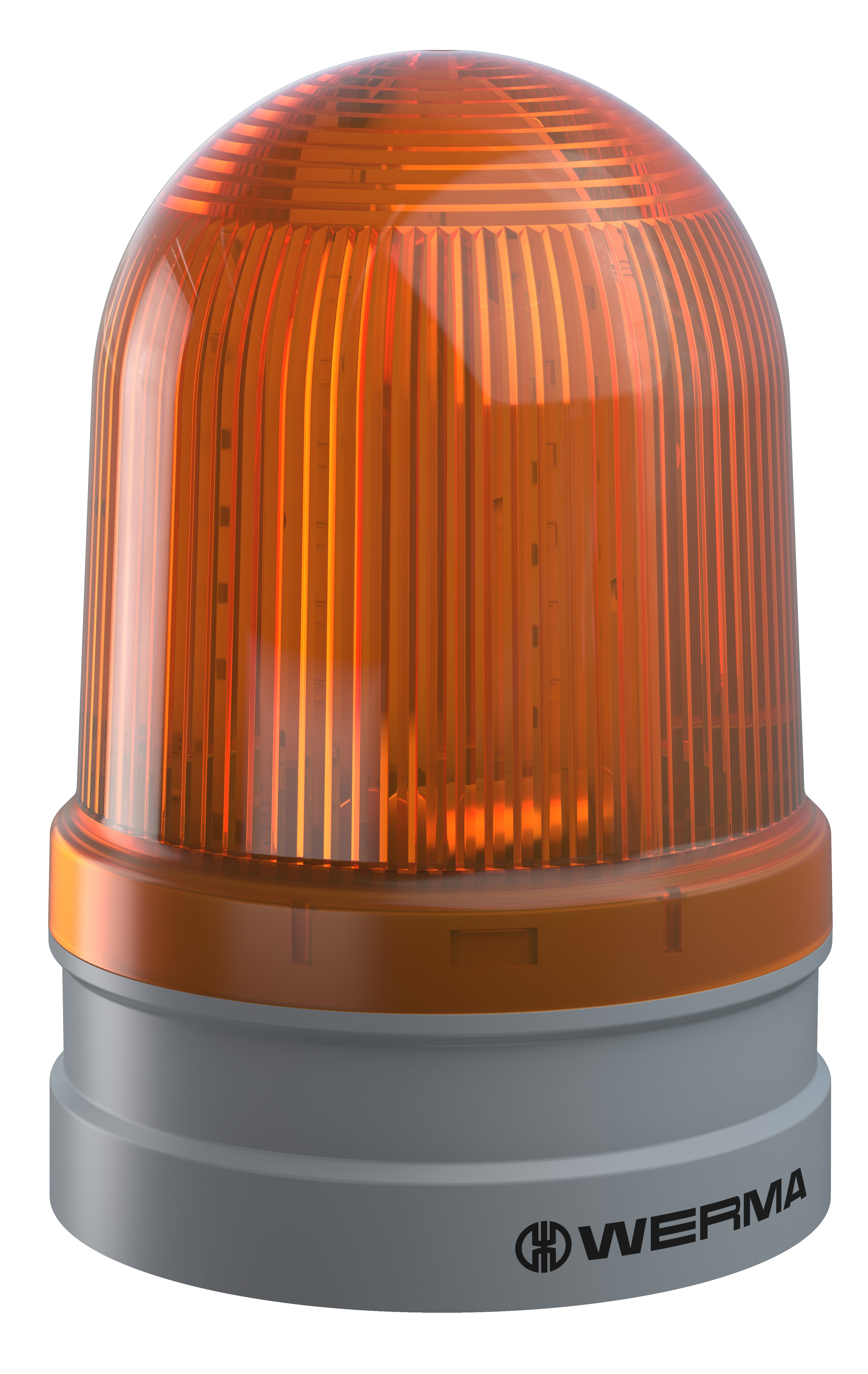

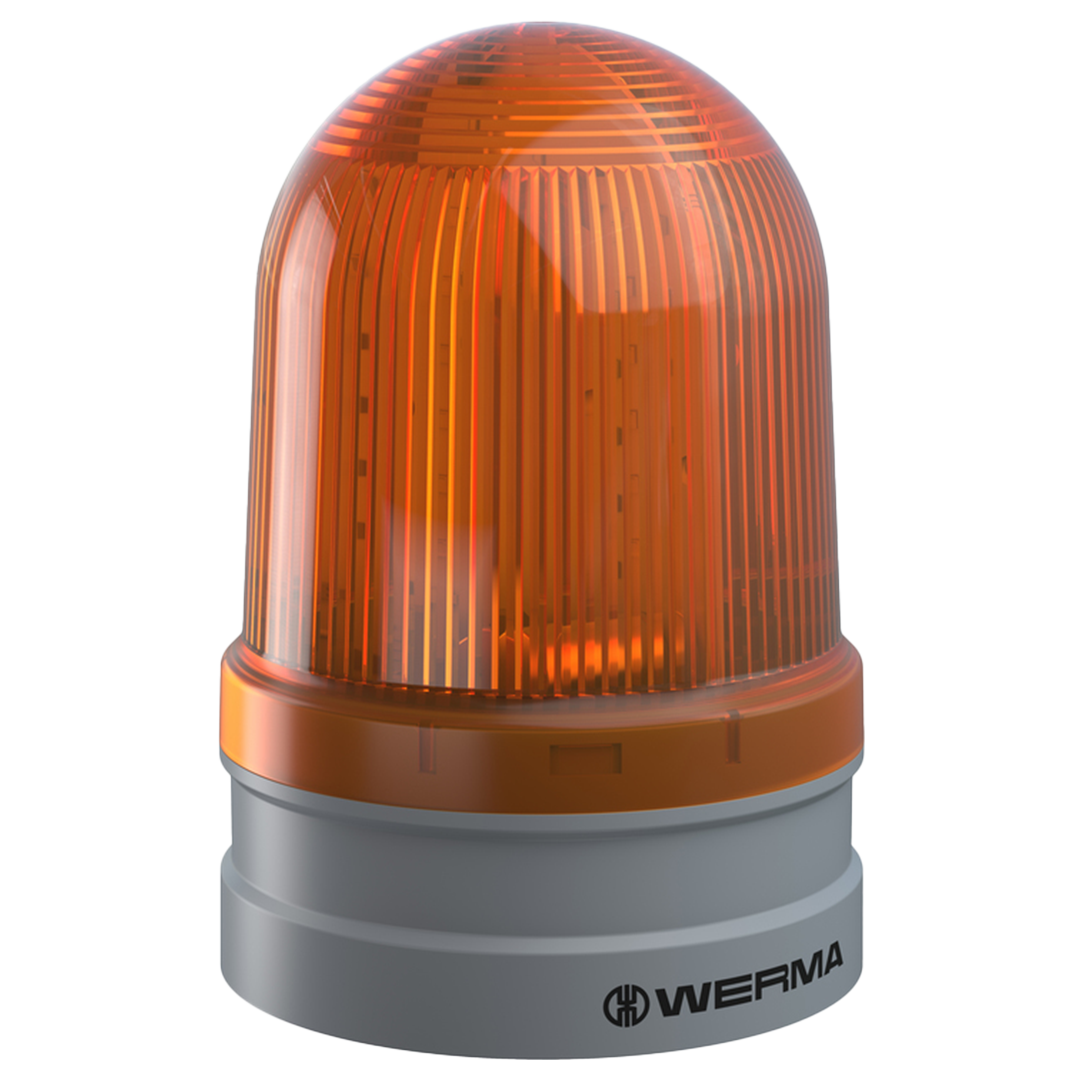

Werma Maxi TwinLIGHT 12/24VAC/DC YE
Werma Maxi TwinLIGHT 12/24VAC/DC YE Werma
Werma Maxi TwinLIGHT 12/24VAC/DC YE
Werma Maxi TwinLIGHT 12/24VAC/DC YE Werma
Werma Maxi TwinLIGHT 12/24VAC/DC YE
Werma Maxi TwinLIGHT 12/24VAC/DC YE

Werma Maxi TwinLIGHT 12/24VAC/DC YE Part number 262.310.70

Werma's Maxi TwinLIGHT 12/24V AC/DC is equipped with the blink permanent TwinLight signalling effect. For further installation ease, the connection is a push-in terminal. Thus making the Maxi TwinLIGHT a quick and easy way to create the perfect signalling solution.
Vendor: Werma
Rubicon Industrial Technology is the exclusive South African distributor for Werma.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
Werma's Maxi TwinLIGHT 12/24V AC/DC is equipped with the blink permanent TwinLight signalling effect. For further installation ease, the connection is a push-in terminal. Thus making the Maxi TwinLIGHT a quick and easy way to create the perfect signalling solution.
Specifications
Specifications
x

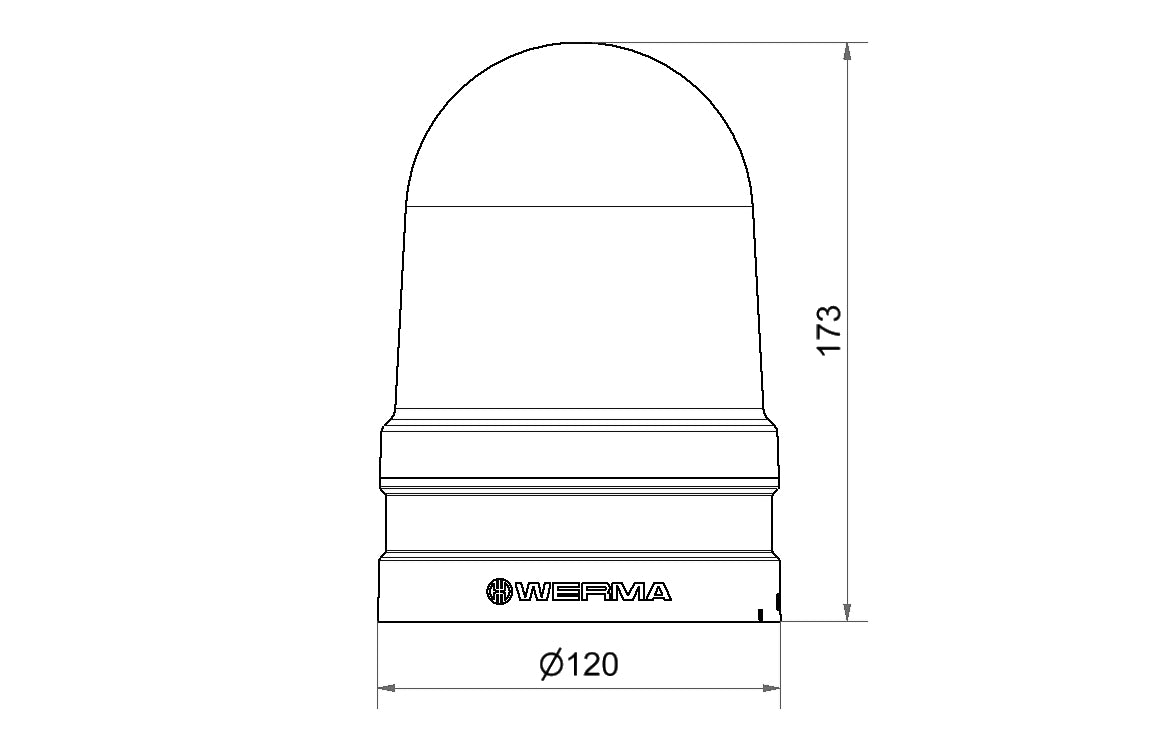

Height173
Diameter120
ConnectionPush-in terminal
MaterialsPC; PC/ABS
cross-sectional area maximum1,50mm² / 16AWG
Dome colourYellow
Housing colourGrey
Protection categoryIP66
cross-sectional area minimum0,25mm² / 24AWG
Type of fixingAdapter required
Weight with packaging498
Working temperature minimum-30°C
Working temperature maximum+60°C
Product weight398
Operating voltage12V; 24V
Operating voltage typeAC/DC
Operating voltage frequency50Hz
Operating voltage tolerance+/- 10%
Rated operational voltage24 VDC
Rated operational current700
Rated inrush current<1800 mA
Protection classProtection class 2
Overvoltage categoryIII
Pollution degree3
Light sourceLED
Light colourYellow
Optical signal imageBlink; Permanent; TwinLight
Blink frequency1 Hz
Pulse- & pause Duration [ms]484ON, 480OFF
Service life optical50,000 h maximum
Conforms with CEYes
Conforms with RoHS directiveYes
WEEEYes
Conforms with ATEX-directiveNo
Conforms with CCCNo
UL Type RatingType 12
Conforms with FCCNo
Conforms with ISEDNo
Conforms with ULcULus
EAC certificate availableNo
Conforms with UKCA (Importer)Yes
Conforms with AS-INo
Conforms with RoHS CNNo
ICAO CertificationNo
Conforms with DNVNo
Conforms with VdSNo
Conforms with TÜVNo
MTTFd-value [years]270
