Description

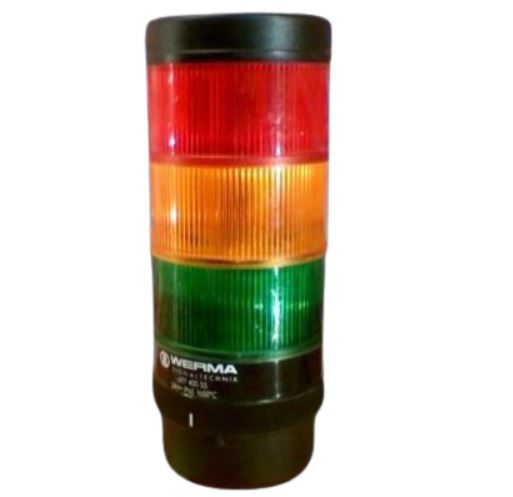

xThis LED stack light provides visual status indication in red, yellow and green, with each stage giving a permanent LED signal. It operates from a 24V DC supply, drawing 40 mA per stage, and has an IP65 protection rating with a polycarbonate lens, making it suitable for use in industrial environments where dust or moisture ingress is a concern. The unit is rated for a temperature range of -20°C to +50°C, allowing installation on machines and panels operating in varied ambient conditions.
Key specifications
- Operating temperature: -20°C...+50°C
- Colour: red/yellow/green
Specifications
x| Colour: | red/yellow/green |
| Service Life: | max. 70.000 h |
| Protection Rating: | IP65 |
| Voltage: | 24V DC |
| Voltage Type: | DC |
| Current Consumption: | 40 mA per stage |
| Temperature Range: | -20°C...+50°C |
| Lens: | PC |
| Signal Effect: | LED Permanent |
| Lamp: | LED |
| Height (mm): | 175 |
| Width (mm): | 70 |
| Depth (mm): | 70 |
| Weight (kg): | 0.237 |
