Siemens Two-hand operation console for command device, 40mm

Product Overview

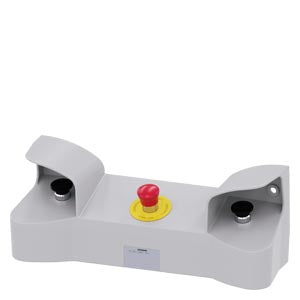

Two-hand operation console for command devices, 22 mm, round, enclosure material metal, enclosure top part gray, 3 command points metal, standard equipment: 2 mushroom pushbuttons black 40 mm, 2x 1 NO+1 NC, screw terminal, 1x EMERGENCY STOP red, 40 mm, 2 NC, screw terminal

Article Number: 3SU1853-3NB00-1AA1

Key Features:

• Safety Console: Complete two-hand operation system for enhanced workplace safety
• Enclosure: Robust metal construction with professional gray top part
• Command Points: 3 metal command points for comprehensive control functionality
• Dual Operation: 2 black mushroom pushbuttons (40mm) requiring simultaneous activation
• Emergency Stop: Integrated red emergency stop button (40mm) for immediate shutdown
• Contact Configuration: Dual NO+NC contacts on operation buttons, dual NC on emergency stop
• Connection: Screw terminals for secure electrical connections
• Safety Compliance: Designed for applications requiring two-hand operation safety protocols

Technical Specifications:

• Enclosure Material: Metal construction
• Enclosure Color: Gray top part
• Command Points: 3 metal command points
• Operation Buttons: 2x black mushroom pushbuttons, 40mm diameter
• Emergency Button: 1x red emergency stop button, 40mm diameter
• Contact Configuration:
  • Operation buttons: 2x (1 NO + 1 NC) each
  • Emergency stop: 2 NC contacts
• Terminal Type: Screw terminals throughout
• Net Weight: 4.728 kg
• Packaging Dimensions: 180.00 x 517.00 x 232.00 mm
• Quantity Unit: 1 Piece
• EAN: 4011209953796
• UPC: 804766075476
• Country of Origin: Germany

Product Benefits:

• Enhanced Safety: Two-hand operation prevents accidental activation and ensures operator attention during critical operations
• Robust Construction: Heavy-duty metal construction (4.728 kg) provides exceptional durability and stability
• Integrated Emergency Stop: Built-in emergency stop functionality provides immediate shutdown capability
• Professional Design: Gray metal finish ensures professional appearance in industrial environments
• Comprehensive Control: Three command points provide versatile control options for complex machinery
• Simultaneous Operation: Requires both hands to activate, keeping operators away from danger zones
• German Engineering: Precision manufacturing ensures reliable performance in safety-critical applications
• Secure Connections: Screw terminals provide reliable electrical connections for safety circuits
• Safety Compliance: Meets industrial safety standards for two-hand operation requirements
• Versatile Contacts: Multiple contact configurations accommodate complex safety and control circuits

Applications: Essential safety equipment for industrial machinery requiring two-hand operation compliance, including press brakes, stamping machines, hydraulic presses, cutting equipment, and automated machinery where operator safety during machine cycles is critical. Perfect for manufacturing environments, metalworking shops, plastic processing facilities, and any application where simultaneous two-hand activation is required to ensure operator hands are clear of danger zones during machine operation.

Safety Features:

• Two-Hand Operation: Simultaneous activation required to prevent accidental machine operation
• Emergency Stop Integration: Immediate shutdown capability with dedicated emergency stop button
• Fail-Safe Design: Multiple NC contacts ensure proper safety circuit integration
• Operator Protection: Forces operator positioning away from hazardous machine areas
• Visual Identification: Clear color coding with black operation buttons and red emergency stop

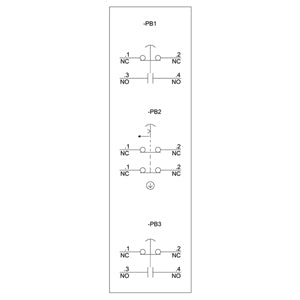

Electrical Specifications:

• Operation Buttons Contact Types: 1 NO + 1 NC per button (2 buttons total)
• Emergency Stop Contact Type: 2 NC contacts
• Terminal Configuration: Screw type for secure safety circuit connections
• Safety Circuit Integration: Multiple contacts enable complex safety system designs

Installation Features:

• Metal Command Points: Enhanced durability and professional appearance
• Substantial Base: Heavy construction provides stable operation platform
• Multiple Terminals: Comprehensive wiring options for complex safety circuits
• Industrial Grade: Built for demanding manufacturing environments

Compliance & Safety Standards:

• Two-Hand Operation Standards: Designed to meet industrial safety requirements for two-hand control
• Machine Safety Compliance: Suitable for machinery safety directive applications
• Workplace Safety: Enhances operator protection in industrial environments

Compliance & Certifications:

• RoHS Compliant: Since 01.10.2014
• Export Control: AL: N / ECCN: N
• Product Class: A - Standard stock item

REACH Regulation Notice: This product contains substances from the candidate list in concentrations higher than 0.1% w/w:

• Lead

Based on current information, these substances do not pose risk when used as intended. Please refer to product documentation for complete details.

Download existing graphical data for this product:

• System Manual - SIRIUS ACT 3SU1 Pushbuttons and Signaling Devices
• Technical Documentation
• Product Datasheet
• Additional Product Information
