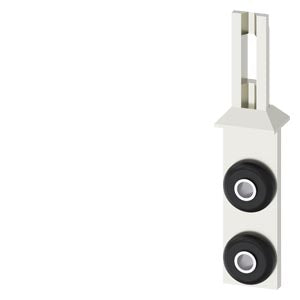

Siemens Separate actuator, die-cast zinc for safety switches Part number 3SE5000-0AV01

Product Overview

Separate standard actuator made of die-cast zinc for safety position switches with tumbler 3SE5312/3SE5322 and AS-i 3SF13, and safety position switches with separate actuator 3SE51/3SE52 and AS-i 3SF11/3SF12. This professional-grade actuator provides reliable safety interlock functionality with multiple mechanical coding to prevent tampering and ensure proper operation of protective door mechanisms.

Technical Specifications

Article Number: 3SE5000-0AV01

Design Characteristics:

• Actuator type: Separate standard actuator
• Material: Die-cast zinc construction
• Compatibility: 3SE5312/3SE5322 with tumbler, AS-i 3SF13
• Additional compatibility: 3SE51/3SE52 separate actuator, AS-i 3SF11/3SF12
• Operating temperature: -25°C to +85°C
• Mounting type: Threaded mounting
• Interface type: None (roller cam straight)

Design Features:

• Die-cast zinc construction for durability
• Multiple mechanical coding to prevent tampering
• Standard coded key for interlock switch
• Threaded mounting system
• Vibration resistance: 0.35 mm/5g
• Shock resistance: 30g/11ms
• Direct mounting on protective doors
• Designed for safety mechanism protection

Application Areas:

• Safety position switches
• Protective door mechanisms
• Interlock safety systems
• Industrial safety applications
• Machine safety circuits
• Access control systems
• Equipment protection monitoring

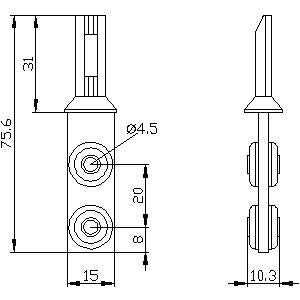

Physical Properties:

• Net weight: 0.035 kg
• Height: 75.6 mm
• Width: 15 mm
• Depth: 9 mm
• Packaging dimensions: 70.00 x 105.00 x 15.00 mm
• Material: Die-cast zinc
• Packaging quantity: 1 piece
• Country of origin: Germany

Product Identifiers:

• EAN: 4011209691063

Compliance & Environmental:

• RoHS Compliance: Since 01.07.2006
• WEEE Take-Back Obligation: No
• REACH Regulation: No substances of very high concern identified

Standards Compliance:

• EN 50047 compliant
• EN 50041 compliant
• IEC certified
• UL certified
• CSA certified
• CE marked
