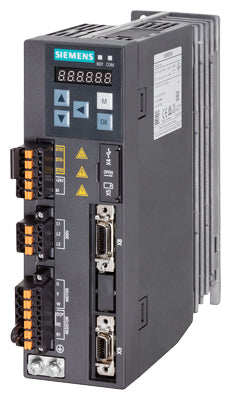

Siemens Sinamics Servo drive, profinet, 1-phase, 0.4kW, 200-240V, 7.8A Part number 6SL3210-5FB10-4UF1

Product Overview

The Siemens 6SL3210-5FB10-4UF1 is a SINAMICS V90 servo drive designed for precise and dynamic motor control in automation applications. It operates on a single-phase 200–240 V AC supply and provides a rated output power of 0.4 kW. With integrated PROFINET communication and a compact IP20 design, it enables efficient integration into motion control systems.

Key Features

• Single-phase input, 200–240 V AC
• Rated output power: 0.4 kW
• Rated output current: 7.8 A
• Integrated PROFINET interface for fast communication
• High-performance servo operation with precise speed and torque control
• Compact frame size for space-saving installations
• IP20 protection for control cabinet mounting

Technical Specifications

• Product Series: SINAMICS V90
• Article Number: 6SL3210-5FB10-4UF1
• Input Voltage: 200–240 V AC (single-phase)
• Rated Output Power: 0.4 kW
• Rated Output Current: 7.8 A
• Output Frequency: 0–330 Hz
• Protection Class: IP20
• Frame Size: Approx. 55 mm × 170 mm × 170 mm
• Net Weight: Approx. 1.25 kg

Compliance & Certifications

• Designed and manufactured to Siemens industrial quality standards
• Conforms to CE, cULus, EAC and related international drive standards
• RoHS compliant

Applications

Suitable for use in compact automation systems, including packaging machines, robotics, handling systems, conveyor modules, and general-purpose motion control where reliable, responsive servo performance is required.
