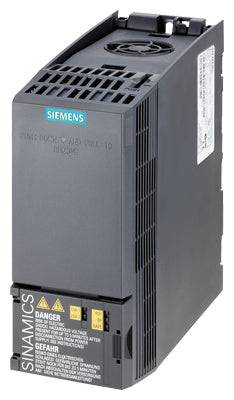

Siemens Sinamics G120C Rated power, 1.1kW, 380 - 480V, 3AC Part number 6SL3210-1KE13-2AF2

Product Overview

The Siemens 6SL3210-1KE13-2AF2 is a compact frequency inverter from the SINAMICS G120C series. It supports three-phase input voltages of 380-480 V AC and offers a rated motor output of up to 1.1 kW (low overload mode). With integrated communication (PROFINET/EtherNet IP), built-in EMC filter and comprehensive control modes, it is ideal for space-efficient machine applications requiring flexible motor control.

Key Features

• Compact SINAMICS G120C inverter for motor power up to ~1.1 kW
• Input voltage range: 380 V – 480 V AC, 3-phase
• Integrated PROFINET and EtherNet/IP interface for networked control
• Built-in EMC Filter (Class A) for electromagnetic compatibility
• Supports control modes including V/f, ECO-V/f, and sensorless vector control
• Safety function Safe Torque Off (STO) included for machine safety readiness
• Compact installation size (approx. width: 73 mm, height: 173 mm, depth: ~160-178 mm)

Technical Specifications

• Article Number: 6SL3210-1KE13-2AF2
• Series: SINAMICS G120C
• Rated Motor Power (Low Overload – LO): ~1.1 kW
• Rated Motor Power (High Overload – HO): ~0.75 kW
• Input Voltage: 3 AC, 380-480 V +10 % / –20 %
• Input Frequency: 47-63 Hz
• Output Frequency (V/f control): 0…550 Hz
• Output Frequency (vector control): 0…240 Hz
• Rated Current (LO): ~4.10 A
• Overload Capability: 150 % of base load current for 3 s followed by 110 % for 57 s (in a 300 s cycle)
• Enclosure/Protection Rating: IP20
• Dimensions (W × H × D): ~73 mm × 173 mm × 160-178 mm
• Net Weight (approx): ~1.40 kg

Compliance & Certifications

• Designed for industrial automation drives and rated to Siemens SINAMICS performance standards
• Supports PROFINET/EtherNet IP for network integration and diagnostics
• Complies with functional safety and EMC requirements for automation systems

Applications

This inverter is ideal for machine-builders, OEMs and automation integrators needing a compact and versatile drive for small to medium-power three-phase motors. Typical use-cases include packaging machines, conveyors, fans and pumps, handling systems, where network integration, space-efficiency and reliable motor control are important.
