Siemens Sinamics G120 Basic operator panel (BOP-2)

Product Overview

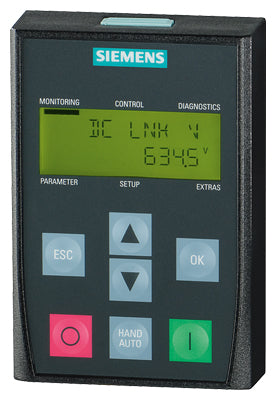

SINAMICS G120 Basic Operator Panel (BOP-2). This essential operating unit provides comprehensive control and monitoring capabilities for SINAMICS frequency converters. The BOP-2 features a 2-line LCD display with menu-guided navigation, enabling drive commissioning, parameter configuration, and real-time monitoring. With IP55/UL Type 12 protection, it's designed for both direct mounting and control cabinet door installation.

Key Features

• 2-Line LCD Display: Monochrome LCD display with clear parameter visualization
• Menu-Guided Operation: Intuitive menu system for easy navigation and setup
• IP55/UL Type 12 Protection: Industrial-grade protection rating
• Direct Parameter Access: Simultaneous display of parameters and values
• Manual/Automatic Switching: Dedicated switchover button for operation modes

Technical Specifications

• Article Number: 6SL3255-0AA00-4CA1
• Product Series: SINAMICS G120 Basic Operator Panel (BOP-2)
• Display Type: LCD monochrome, 2-line display
• Protection Rating: IP55/UL Type 12
• Net Weight: 0.140 kg
• EAN: 4019169458085

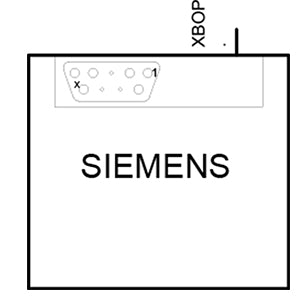

Physical Specifications

• Width: 70 mm
• Height: 106.85 mm
• Depth: 19.60 mm
• Weight: 0.140 kg
• Display: 2-line LCD monochrome display
• Keypad: Navigation buttons and function keys
• Mounting: Direct mounting or door mounting with kit

Environmental Conditions

• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -40°C to +70°C (-40°F to +158°F)
• Relative Humidity: 95% maximum at 25°C (without condensation)
• Protection Rating: IP55 (door mounting), UL Type 12 Enclosure
• Environmental Class: Class 3C3 according to IEC 60721-3-3:2002

Display and Interface

• Display Technology: LCD monochrome
• Display Lines: 2 lines
• Parameter Display: Simultaneous parameter and value display
• Process Values: Up to 2 process values visualized simultaneously
• Navigation: Direct navigation buttons
• Status Indication: Real-time drive status display

Operational Capabilities

• Drive Commissioning: Complete drive commissioning with guided menus
• Parameter Configuration: Individual parameter settings and adjustments
• Operation Monitoring: Real-time monitoring of drive operation
• Diagnostic Functions: Comprehensive diagnostic capabilities
• Manual Control: Manual drive control with direct navigation keys
• Parameter Filtering: Advanced parameter filtering for efficient setup

Compatibility

• SINAMICS G120: G120 converters with CU240B/E-2 or CU250S-2 Control Units
• SINAMICS G120P: G120P converters with CU230P Control Unit
• SINAMICS G120X: G120X converter systems
• SINAMICS G120C: G120C compact converters
• SINAMICS G120D: G120D distributed converters
• SINAMICS G110M: G110M motor-mounted converters

Applications

• Industrial Automation: Manufacturing and process control systems
• Motor Control: Variable frequency drive applications
• HVAC Systems: Heating, ventilation, and air conditioning control
• Pump Control: Water and fluid management systems
• Fan Control: Ventilation and air circulation systems
• Conveyor Systems: Material handling and transportation control
• Compressor Control: Industrial compressor applications

Installation Options

• Direct Mounting: Direct mounting on compatible Control Units
• Door Mounting: Cabinet door mounting with optional door mounting kit
• Control Cabinet: Standard control cabinet installation
• Panel Integration: Integration into operator control panels
• Portable Use: Removable for commissioning and service

Functional Benefits

• Shortened Commissioning: Reduced setup time with guided wizards
• Process Transparency: Clear status display for process monitoring
• Parameter Management: Efficient parameter copying and downloading
• Fault Diagnostics: Direct menu-guided diagnostics
• Operational Flexibility: Easy switchover between automatic and manual modes

Advanced Features

• Parameter Copying: Copy parameter lists between identical drives
• Standard Commissioning: Support for series commissioning of identical drives
• Parameter Lists: Operation without printed parameter lists
• Backup and Restore: Parameter backup and restore functionality
• Drive Cloning: Efficient configuration of multiple identical drives

User Interface

• Intuitive Navigation: Easy-to-use navigation buttons
• Menu System: Structured menu system for all functions
• Status Display: Clear indication of drive status and alarms
• Parameter Access: Direct access to all drive parameters
• Multi-Language: Support for various language options

Quality & Compliance

• Country of Origin: Great Britain
• RoHS Compliance: Since 24.02.2009
• Export Control: AL : N / ECCN : N
• Product Class: A (Standard stock item)
• WEEE Compliance: No take-back obligation
• REACH Compliance: No SVHC substances above 0.1% w/w threshold

Packaging Information

• Packaging Dimensions: 80 x 130 x 45 mm
• Quantity Unit: 1 piece
• Packaging Quantity: 1 unit
• Net Weight: 0.140 kg
• Industrial Packaging: Protected packaging for safe transport

Mounting and Installation

• Direct Mounting: Plugs directly onto compatible Control Units
• Door Mount Kit: Optional kit for control cabinet door mounting
• Cable Connection: Standard cable connection to Control Unit
• Mounting Hardware: Included mounting hardware for secure installation
• Installation Guide: Comprehensive installation documentation

Maintenance and Service

• Maintenance-Free: No regular maintenance required
• Service Access: Easy access for service and troubleshooting
• Diagnostic Support: Built-in diagnostic capabilities
• Parameter Backup: Parameter backup for maintenance purposes
• Replacement: Easy replacement without drive reconfiguration

Performance Characteristics

• Response Time: Fast response to user inputs
• Display Quality: Clear, readable display under various lighting conditions
• Reliability: Proven reliability in industrial environments
• Durability: Robust construction for long service life
• EMC Compliance: Electromagnetic compatibility for industrial use

Related Products

• SINAMICS G120 Drives: Compatible variable frequency drives
• IOP-2 Intelligent Panel: Advanced operator panel with color display
• Door Mounting Kit: For control cabinet door installation
• Connection Cables: Interface cables for remote mounting
• Accessories: Additional G120 accessories and components

Technical Support

• Installation Support: Technical support for installation and setup
• Configuration Guidance: Parameter configuration assistance
• Troubleshooting: Diagnostic and troubleshooting support
• Documentation: Comprehensive user and technical documentation
• Training: Available training on operation and maintenance

Advantages

• Cost-Effective: Economical solution for basic drive operation
• User-Friendly: Intuitive interface for efficient operation
• Flexible Installation: Multiple mounting options available
• Proven Technology: Established and reliable operator panel technology
• Industrial Quality: Built for demanding industrial environments
