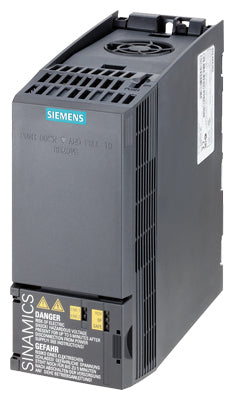

Siemens Sinamics G120C Rate power, 0.75kW, 380 - 480V, 3AC Part number 6SL3210-1KE12-3AF2

Product Overview

The Siemens SINAMICS G120C (model 6SL3210-1KE12-3AF2) is a compact inverter designed for three-phase motor control with input voltage range 380-480 V AC. With a rated motor power of 0.55 kW and support for high overload capacity, this converter provides a robust solution for space-efficient installations in automation systems. It combines flexible control modes, integrated communication, and strong performance for OEMs and machinery applications.

Key Features

• Compact SINAMICS G120C inverter suitable for motors up to 0.55 kW
• Input supply: 380-480 V AC, 3-phase, 47-63 Hz
• Integrated PROFINET communication interface
• Built-in Class A EMC filter for improved electromagnetic compatibility
• Supports control modes: V/f, V/f ECO, sensorless vector control
• Overload capability: 150 % of rated current for 3 s followed by 110 % for 57 s in a 300 s cycle
• Safe Torque Off (STO) function included for machine safety
• Compact installation width for efficient control cabinet layout (approx. 73 mm wide)

Technical Specifications

• Article Number: 6SL3210-1KE12-3AF2
• Series: SINAMICS G120C
• Rated Motor Power (Low Overload): 0.55 kW
• Input Voltage: 3 AC, 380-480 V +10 % / -20 %
• Input Frequency: 47-63 Hz
• Output Frequency (Vector Control): 0-240 Hz
• Output Frequency (V/f Control): 0-550 Hz
• Overload Rating: 150 % for 3 s, 110 % for 57 s in a 300 s cycle
• Rated Current (approx.): 2.30 A (Low Overload)
• Protection Rating: IP20
• Dimensions (W × H × D approx.): 73 mm × 173 mm × 178 mm
• Net Weight (approx.): 1.40 kg

Compliance  &  Certifications

• Designed according to industrial drive standards and Siemens automation platforms
• PROFINET certified for network-based control applications
• Includes safety features for machine control (STO) and meets functional safety requirements

Applications

This inverter is ideal for machine builders, OEMs and automation system integrators who require compact and flexible motor-control solutions. Typical applications include packaging machines, conveyor systems, fans, pumps and other three-phase motor systems where space-efficient installation, network integration and high performance are vital.
