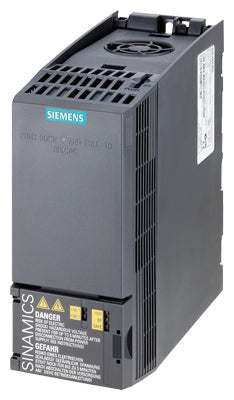

Siemens Sinamics G120C Inverter drive, 3-phase, 400VAC, 2.2kW, 6A Part number 6SL3210-1KE15-8AF2

Product Overview

The Siemens 6SL3210-1KE15-8AF2 is the Siemens SINAMICS G120C 2.2 kW 3-phase Inverter Drive, designed for variable-frequency motor control in industrial applications. It accepts 380…480 V AC three-phase supply and provides a compact, efficient, and flexible solution for controlling AC motors — suitable for pumps, fans, conveyors, compressors and general machine drives.

Key Features

• Output power: 2.2 kW (low-overload rating – 150% for 3 s)
• Input voltage: 3-phase 380…480 V AC (±10% / –20%), 47–63 Hz
• Compact design — width ~73 mm, height ~173–178 mm, depth ~160–178 mm, ideal for tight control cabinet installations
• Integrated EMC filter (Class A) for reduced electromagnetic interference
• Wide control capability: V/f control, sensorless vector control, variable-frequency output (0–550 Hz) for flexible motor speed/torque management
• Built-in I/O interface: multiple digital inputs and outputs, analog I/O — for direct integration with automation systems and sensors
• Support for fieldbus / network communication (e.g. PROFINET / EtherNet-IP) when used with appropriate option modules — enables easy integration into networked control systems
• Cooling via integrated fan — suitable for continuous industrial operation under nominal conditions
• IP20 / open-type enclosure — intended for installation inside control panels or electrical cabinets

Technical Specifications

• Article Number: 6SL3210-1KE15-8AF2
• Product Series: SINAMICS G120C compact inverter drives
• Rated Output Power (LO): 2.2 kW
• High-overload Output Power (HO): 1.5 kW (for applications requiring short overload periods)
• Input Voltage: 3× 380 … 480 V AC, +10% / –20%
• Line Frequency: 47 … 63 Hz
• Output Frequency Range: 0 … 550 Hz (depending on control mode)
• Rated Input Current (LO): ~7.4 A
• Rated Input Current (HO): ~6.0 A
• Dimensions (approx.): Width: 73 mm; Height: 173–178 mm; Depth: 160–178 mm
• Enclosure Protection: IP20 (open-type / panel enclosed)
• Cooling: Air cooling via built-in fan
• I/O Interface: Multiple digital inputs/outputs plus analog I/O — enables direct control and feedback without extra components
• Filter: Integrated EMC filter (Class A)
• Mounting: Panel or cabinet mounting — compact footprint
• Typical Applications: Motor speed control, pump/fan control, conveyor drives, compressors, variable-load drives, general machine automation

Compliance & Certifications

• Compliant with industrial inverter drive standards for variable-frequency motor control
• Designed for use in control cabinets with appropriate wiring and protection equipment
• Suitable for integration into automation systems requiring EMC filtering, variable-speed control and network compatibility

Applications

The 6SL3210-1KE15-8AF2 is well suited for industrial machinery requiring adjustable motor speed and torque — such as pumps, fans, conveyors, compressors, mixers, HVAC systems, and general automation. Its compact size, integrated filter and flexible control options make it ideal for retrofit projects or new panel builds where space is limited but performance and reliability are required. It is also a good fit for installations needing smooth motor control, energy saving via varying frequency, and compatibility with sensor or control-logic input/output integration.
