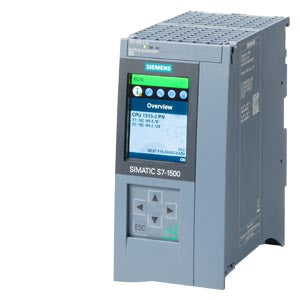

Siemens Simatic S7-1500 CPU, profinet IRT with 2-port switch Part number 6ES7515-2AN03-0AB0

Product Overview

The Siemens SIMATIC S7-1500 CPU 1515-2 PN (SKU: 6ES7515-2AN03-0AB0) is a central processing unit with 1 MB program memory and 4.5 MB data memory. It features a PROFINET IRT interface with 2-port switch and a second PROFINET RT interface, delivering high-speed bit performance for industrial automation tasks.

Key Features

• CPU 1515-2 PN series for SIMATIC S7-1500 system
• 1 MB work memory for program, 4.5 MB for data
• PROFINET IRT with integrated 2-port switch and PROFINET RT interface
• Very fast bit performance: 6 ns bit performance
• Suitable for demanding automation and control applications

Technical Specifications

• Product Type: Central processing unit (CPU) for SIMATIC S7-1500
• Article Number: 6ES7515-2AN03-0AB0
• Program Memory (work): 1 MB
• Data Memory (work): 4.5 MB
• Interfaces: PROFINET IRT (2-port switch) and PROFINET RT
• Bit Performance: 6 ns
• Net Weight (approx.): 0.513 kg

Compliance & Certifications

• Developed and manufactured by Siemens AG
• Complies with Siemens automation system standards

Applications

Ideal for machine-level automation, control cabinets, and production systems where high-speed processing, integrated communication via PROFINET, and compact modular PLC architecture are required.
