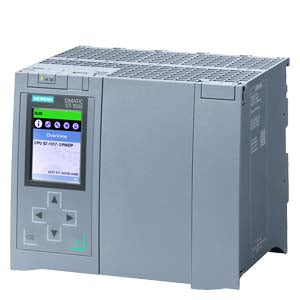

Siemens Simatic S7-1500 Central processing unit Part number 6ES7517-3AP00-0AB0

Product Overview

The Siemens SIMATIC S7-1500 CPU 1517-3 PN/DP (SKU: 6ES7517-3AP00-0AB0) is a central processing unit with integrated interfaces for PROFINET IRT (2-port switch), PROFINET RT, and PROFIBUS. It provides work memory of 2 MB for program and 8 MB for data, and features a bit performance of 2 ns.

Key Features

• Work memory: 2 MB for program, 8 MB for data
• Interfaces: 1st PROFINET IRT with 2-port switch, 2nd PROFINET RT, 3rd PROFIBUS
• Bit performance: 2 ns
• SIMATIC memory card required
• Manufactured by Siemens AG, Germany

Technical Specifications

• Product Type: CPU 1517-3 PN/DP
• Article Number: 6ES7517-3AP00-0AB0
• Work Memory (Program): 2 MB
• Work Memory (Data): 8 MB
• Interface 1: PROFINET IRT with 2-port switch
• Interface 2: PROFINET RT
• Interface 3: PROFIBUS DP
• Bit Performance: 2 ns
• Net Weight (approx.): 2.106 kg

Compliance & Certifications

• Product of Siemens AG
• Conforms to Siemens SIMATIC S7-1500 system standards
• RoHS compliant, origin Germany

Applications

Designed for high-performance automation systems, machine control, and integration into production environments requiring rapid processing, extensive networking via PROFINET and PROFIBUS, and robust modular architecture.
