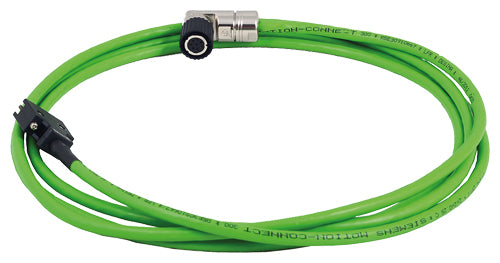

Siemens Signal cable for ABS encoder, motion-connect, 5m
📄 Datasheet
Siemens

Siemens Signal cable for ABS encoder, motion-connect, 5m Part number 6FX3002-2DB10-1AF0

EAN / Barcode 4042948674031
Product Type Cable & Cable Management
Back Order
💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

This encoder cable provides secure connections for encoders in industrial machinery. Designed for flexibility, it has a PVC sheath and is resistant to oil and mechanical stress. It operates effectively at temperatures between -25°C and 80°C and is IP65-rated for protection in challenging environments.

Technical Specifications

IP RatingIP65
Compliance / CertificationsEN 60332-1-1 to 1-3 / EN 60811-2-1 (mineral oil only) / ROHS Conform
Country of OriginGermany
Temperature: Operating-25 °C to 80 °C
Material: Insulation / Inner sheathPVC
Material: Jacket / Outer SheathPVC
Bending Radius6 x diameter
Part Length (mm)5 000mm
Connection TypeAngular connector (cable outlet direction rotatable in fixed increments, connector disassembly required)
Test Voltage500 V
Voltage Range/Rating30 V
