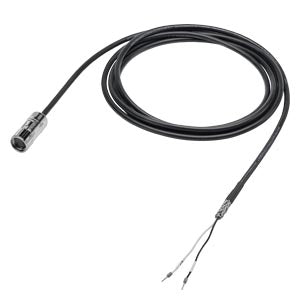

Siemens Brake cable, pre-assembled, motion-connect, 2 x 0.75, 5m

Product Overview

Brake cable pre-assembled 2x0.75, for motor S-1FL6 HI 400 with V70/V90 MOTION-CONNECT 300 No UL for connector on the motor side Dmax=6.3 mm Length (m)=5 m Version with straight connector. This pre-assembled brake cable provides reliable brake control for SIMOTICS S-1FL6 servo motors in SINAMICS V90 drive systems with MOTION-CONNECT 300 connection technology for precise motion control applications.

Key Features

Cable Construction:

• Pre-assembled MOTION-CONNECT 300 brake cable
• 2 x 0.75 mm² conductor configuration
• 6.3 mm outside diameter with 5 meter length
• Straight connector design for motor connection
• No UL certification for motor-side connector

Connector Design:

• Straight connector configuration on motor side
• MOTION-CONNECT 300 connection system compatibility
• Pre-assembled connectors for plug-and-play installation
• Optimized for SIMOTICS S-1FL6 servo motors
• Dedicated brake control functionality

Performance Specifications:

• Conductor Size: 2 x 0.75 mm²
• Cable Length: 5 meters
• Outside Diameter: 6.3 mm
• Motor Compatibility: S-1FL6 HI 400V servo motors
• Drive System: SINAMICS V70/V90 compatibility

Technical Specifications

Physical Characteristics:

• Cable Length: 5 meters
• Net Weight: 0.350 kg
• Outside Diameter: 6.3 mm
• Conductor Configuration: 2 x 0.75 mm²
• Connector Type: Straight connector on motor side

Electrical Properties:

• Conductor Size: 2 x 0.75 mm²
• Voltage Rating: Compatible with 400V motor systems
• Application: Brake control for servo motors
• Insulation: Industrial-grade insulation material
• Connection System: MOTION-CONNECT 300

Standards and Compliance:

• RoHS Compliance: Yes, since 03.08.2016
• WEEE Take-Back Obligation: Yes, covered under WEEE (2012/19/EU)
• Export Control: AL: N / ECCN: N
• Country of Origin: China
• Certification: No UL certification for motor-side connector

Product Information:

• EAN: 4034106459659
• UPC: 804766751592
• Packaging: 1 piece per package
• Product Class: Standard product (returnable)

Applications

The MOTION-CONNECT 300 brake cable is designed for brake control in SIMOTICS S-1FL6 servo motors used with SINAMICS V70/V90 servo drives in industrial automation applications requiring precise motion control with integrated brake functionality. Ideal for servo positioning systems, automated machinery, robotics applications, material handling equipment, and manufacturing automation requiring reliable brake control for safety and positioning accuracy.

Operation

The brake cable provides dedicated control for the electromagnetic brake integrated into SIMOTICS S-1FL6 servo motors. The 2 x 0.75 mm² conductors supply power to the brake coil, allowing precise control of brake engagement and release. The straight connector design enables direct connection to the motor brake terminals. The MOTION-CONNECT 300 system ensures reliable connection between the SINAMICS V90 drive and motor brake system. The pre-assembled construction eliminates field wiring and reduces installation time while ensuring consistent brake performance.

Compatibility

Motor Compatibility:

• SIMOTICS S-1FL6: HI 400V servo motors with integrated brake
• SINAMICS V70/V90: Servo drive systems
• MOTION-CONNECT 300: Connection system compatibility
• Brake Systems: Electromagnetic brake control

System Integration:

• SINAMICS V90: Primary servo drive compatibility
• SINAMICS V70: Alternative servo drive compatibility
• Cable Length Options: Available in 3m to 20m lengths
• Connection System: MOTION-CONNECT 300 standardized interface

REACH Compliance

Currently, there is no information on SVHC (Substances of Very High Concern) from the supply chain. Products are regularly compared with the REACH candidate list, and information will be updated as new findings become available.
