Siemens Sentron PAC4220 Power monitoring device, 3-phase Part number 7KM4220-1BA01-1EA0

Product Overview

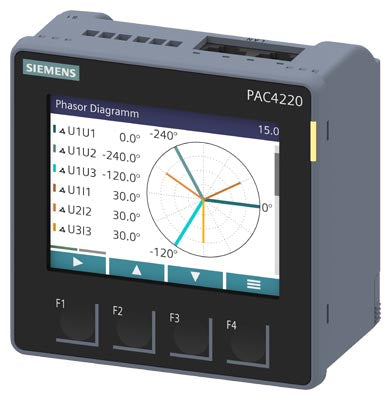

The Siemens 7KM4220-1BA01-1EA0 is a SENTRON PAC4220 power monitoring device featuring a colour graphic TFT display. It is designed for three-phase systems (up to 690 V / 400 V) and offers comprehensive measurement of power, energy, harmonics and power-quality parameters. Conforming to PMD-III performance class according to IEC 61557-12 and active energy accuracy Class 0.2 / 0.2S (IEC 62053-22), this unit is ideal for industrial panel mounting and high-precision energy monitoring.

Key Features

• Full three-phase power monitoring device (SENTRON PAC4220 series)
• Colour graphic TFT display for clear visualization of electrical parameters
• Wide voltage input range up to 690 V AC and current via x/1 A or x/5 A CTs
• Measurement class active energy: Class 0.2 / 0.2S according to IEC standards
• Comprehensive parametric measurement: voltage, current, active/reactive/apparent power & energy, power factor, THD, harmonics up to 64th, frequency
• Panel-mount instrument size (96 mm × 96 mm) for switchgear or control panels

Technical Specifications

• Article Number: 7KM4220-1BA01-1EA0
• Product Family: SENTRON PAC4220 Power Monitoring Devices
• Panel Cut-Out Size: 96 mm × 96 mm
• Rated System Voltage (Ue): Up to 690 V AC (400 V AC typical)
• Nominal Input Current (Ie): Configurable for x/1 A or x/5 A CT secondary
• Supply Voltage: Extra-low voltage DC supply (24 … 48 V DC)
• Dimensions (W × H × D): 96 mm × 96 mm × 56 mm (installation depth approx. 51 mm)
• Operating Ambient Temperature: –25 °C to +55 °C
• Accuracy (examples): Voltage ±0.2 %, Current ±0.2 %, Active Power ±0.2 %, THD ±2 % (according to IEC 61557-12)

Compliance & Certifications

• Conforms to IEC 61557-12 for performance class PMD-III
• Active energy measurement class 0.2 / 0.2S according to IEC 62053-22
• Manufactured to Siemens SENTRON quality standards for industrial energy monitoring systems

Applications

Ideal for installation in industrial power distribution panels, sub-metering systems, energy-management platforms and automation control cabinets. The PAC4220 enables detailed monitoring of power, energy consumption, harmonics, and power-quality parameters to support energy optimisation, compliance and system diagnostics in manufacturing plants, utilities and infrastructure systems.
