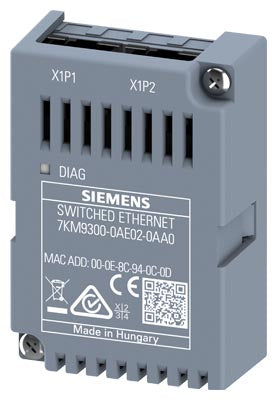

Siemens Expansion module, switched Ethernet Profinet V3 Part number 7KM9300-0AE02-0AA0

Product Overview

The Siemens 7KM9300-0AE02-0AA0 is a plug-in switched-Ethernet expansion module (PROFINET V3) for the 7KM PAC series (e.g. PAC3220 / PAC4220) and compatible 3VA COM meters. It adds Ethernet / PROFINET communications capabilities to power-monitoring or energy-metering devices, allowing integration into industrial networks, remote monitoring, and data acquisition systems.

Key Features

• Switched Ethernet PROFINET expansion module (plug-in type)
• Designed for 7KM PAC3220 / PAC4220 / 3VA COM100 / 800 series devices
• 2 × RJ45 sockets for Ethernet connection (switch-integrated)
• IEC-class galvanic isolation with insulation voltage up to 500 V AC
• PROFINET IO device support with IRT, media redundancy (MRP), system redundancy
• Support for open IE communication protocols (TCP/IP, SNMP, LLDP)
• Autonegotiation and autocrossover — simplifies network wiring
• Transfer rate: 100 Mbps for RJ45 plug connection
• Mounting: plug-in to PAC / COM modules — compact module form (approx. 63 × 43 × 22 mm)
• IP20 protection rating — suitable for mounting inside enclosure or switchgear
• Wide MTBF (long-term reliability) — ideal for continuous monitoring / industrial use

Technical Specifications

• Article Number: 7KM9300-0AE02-0AA0
• Module Type: Switched Ethernet PROFINET expansion module
• Intended Base Units: 7KM PAC3220 / PAC4220 / 3VA COM100 / 3VA COM800
• Interfaces: 2 × RJ45 Ethernet (integrated switch)
• Ethernet Speed: 100 Mbps (per RJ45 plug connection)
• Protocols Supported: PROFINET IO (with IRT & redundancy), TCP/IP, SNMP, LLDP, Modbus-TCP / open IE
• Galvanic Insulation Voltage: Up to 500 V AC
• Protection Class: IP20 (for closed switchgear or cabinet mounting)
• Mounting / Installation: Plug-in module slot for supporting PAC/COM devices
• Dimensions (H×W×D): approx. 63 × 43 × 22 mm
• Ambient Conditions: Standard environmental conditions for switchgear / control cabinets
• MTBF / Reliability: Very high — suitable for continuous industrial operation

Compliance & Standards

• PROFINET V3 compliant — supports industrial communication standard for automation and energy monitoring
• Galvanic isolation and insulation per relevant safety standards (500 V AC rating)
• Designed for integration with Siemens PAC and 3VA series measuring devices — ensures full compatibility and reliability in power monitoring systems
• IEC-compliant switchgear / enclosure mounting — suitable for industrial installations

Applications

The 7KM9300-0AE02-0AA0 module is ideal for upgrading or connecting power meters (such as PAC3220 / PAC4220) or protection devices (3VA COM) to Ethernet networks, enabling remote monitoring, data logging, energy management, SCADA / building automation integration, and communication over PROFINET IO in industrial, commercial or infrastructure installations. It is particularly useful for energy monitoring, metering, predictive maintenance, and integration of power-quality or consumption data into central automation or BMS (Building Management System) platforms.
