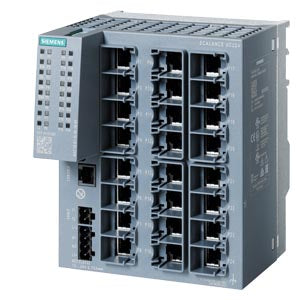

Siemens Scalance XC224 Managed layer 2 IE switch Part number 6GK5224-0BA00-2AC2

Product Overview

Siemens SCALANCE XC224 industrial Ethernet switch (6GK5224-0BA00-2AC2) is a managed Layer 2 switch designed to provide reliable and secure Ethernet communication in industrial automation networks. It features 24 Fast Ethernet RJ45 ports and supports industrial Ethernet protocols, redundancy mechanisms and advanced diagnostics, making it ideal for building structured, resilient and segmented industrial networks.

Key Features

• Managed Layer 2 industrial Ethernet switch
• 24 × 10/100 Mbit/s RJ45 Ethernet ports
• Supports PROFINET and Ethernet/IP communication
• Integrated diagnostic and status LEDs
• Industrial redundancy functions including RSTP and VLANs
• Redundant 24 V DC power supply inputs
• Secure industrial design for continuous operation
• DIN rail, S7 rail and wall mounting options

Technical Specifications

• Article Number: 6GK5224-0BA00-2AC2
• Product Family: SCALANCE XC224
• Device Type: Managed Layer 2 Ethernet switch
• Ethernet Ports: 24 × RJ45
• Data Rate: 10/100 Mbit/s per port
• Network Standards: IEEE 802.3, IEEE 802.3u
• Redundancy Functions: RSTP, VLAN support
• Industrial Protocols: PROFINET, Ethernet/IP
• Supply Voltage: 24 V DC (redundant inputs)
• Permissible Range: 9.6 to 31.2 V DC
• Typical Power Consumption: approx. 9 W
• Operating Temperature: –40 °C to +70 °C
• Enclosure Protection: IP20
• Mounting: DIN rail, S7 rail or wall mounting
• Dimensions (H × W × D): approx. 147 mm × 120 mm × 125 mm
• Weight: approx. 0.9 kg

Compliance & Certifications

• Designed according to Siemens industrial Ethernet standards
• IEC 62443 industrial cybersecurity compliant
• CE compliant
• RoHS compliant

Applications

The Siemens SCALANCE XC224 is used in industrial Ethernet networks to connect controllers, I/O systems, HMIs and industrial PCs. It provides reliable switching, network segmentation and redundancy for factory automation, process automation and machine-level networks where high availability and secure communication are required.
