Product Overview

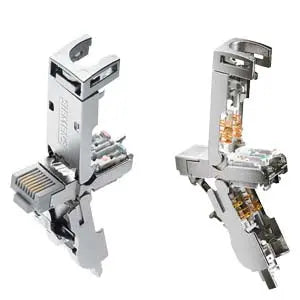

High-Performance Industrial Ethernet RJ45 Connector with FastConnect Technology

The Industrial Ethernet FastConnect RJ45 plug is a robust, high-performance connector engineered for demanding industrial networking applications. This CAT6A-rated connector supports data transmission speeds up to 10 Gbps and features a rugged metal enclosure with advanced FastConnect technology for reliable, high-speed Industrial Ethernet connections in harsh environments.

Key Features

• CAT6A Performance: Supports high-speed data transmission rates of 10/100/1000/10000 Mbps, meeting demanding industrial networking requirements for modern automation systems
• Rugged Metal Enclosure: Robust metal housing provides superior mechanical protection and electromagnetic shielding for reliable operation in industrial environments
• FastConnect Technology: Advanced FC connection system enables quick, secure cable termination with consistent performance and reduced installation time
• 180° Cable Outlet: Straight cable outlet configuration optimizes space utilization and provides flexible installation options in control cabinets and equipment
• 4x2 Cable Compatibility: Specifically designed for use with IE FC TP Cable 4x2 (AWG24), ensuring optimal performance with Siemens Industrial Ethernet cable systems
• Industrial-Grade Reliability: Engineered for demanding industrial applications with enhanced durability and long-term performance stability

Technical Specifications

Performance Specifications:

• Data Transfer Rates: 10/100/1000/10000 Mbps
• Category: CAT6A
• Connector Type: RJ45 plug-in connector
• Cable Compatibility: IE FC TP Cable 4x2 (AWG24)
• Cable Outlet: 180° (straight)

Physical Specifications:

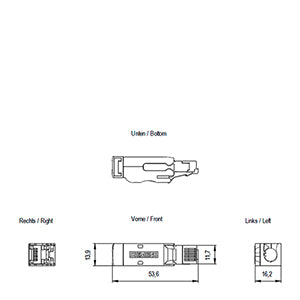

• Dimensions: 13.7mm (W) × 16mm (H) × 55mm (D)
• Weight: 0.035 kg
• Housing Material: Rugged metal enclosure
• Connector Configuration: 4x2 (8P8C)

Environmental Conditions:

• Operating Temperature: -40°C to +85°C
• Ambient Temperature: -40°C to +85°C
• Degree of Protection: IP20 (when installed)
• Suitable for industrial environments

Electrical Specifications:

• Contact Configuration: 8P8C (8 Position, 8 Contact)
• Wire Gauge: AWG24
• Connection Method: FastConnect (FC) technology
• Compliance: Industrial Ethernet standards

Applications

Ideal for high-performance industrial networking applications including:

• Industrial automation systems requiring 10 Gbps connectivity
• SIMATIC NET infrastructure installations
• Manufacturing execution systems (MES)
• Industrial IoT and Industry 4.0 implementations
• Process control and monitoring networks
• Machine-to-machine communication systems
• High-speed data acquisition networks

Installation & Connectivity

FastConnect Technology: Advanced connection system provides secure, reliable cable termination with reduced installation time and consistent performance.

Cable Preparation: Optimized for IE FC TP Cable 4x2 (AWG24) with precise cable preparation requirements for optimal signal integrity.

Mechanical Design: 180° cable outlet configuration provides space-efficient installation with flexible cable routing options.

Durability: Rugged metal enclosure ensures long-term reliability in demanding industrial environments with protection against mechanical stress and electromagnetic interference.

Performance Benefits

High-Speed Connectivity: CAT6A performance supports 10 Gbps data rates, enabling high-bandwidth industrial applications and future-proofing network infrastructure.

Consistent Quality: FastConnect technology ensures reliable, repeatable connections with minimal installation variability.

EMI Protection: Metal enclosure provides superior electromagnetic shielding for reliable operation in electrically noisy industrial environments.

Temperature Stability: Wide operating temperature range (-40°C to +85°C) ensures reliable performance across diverse industrial applications.

Certifications & Compliance

Industrial Standards:

• RoHS compliant since March 31, 2009
• Industrial Ethernet performance standards
• CAT6A certification for high-speed data transmission

Regulatory Compliance:

• Export Control: AL: N / ECCN: N
• WEEE: Not subject to take-back obligation under 2012/19/EU directive

REACH Regulation: Currently no SVHC (Substances of Very High Concern) information available from supply chain. Product screening procedures are in place for continuous monitoring.

Package Information

• EAN: 4019169854986
• UPC: 887621882365
• Net Weight: 0.035 kg
• Package Dimensions: 5.0 × 6.1 × 3.3 cm
• Pack Quantity: 1 unit per package
• Country of Origin: Poland
