Product Overview

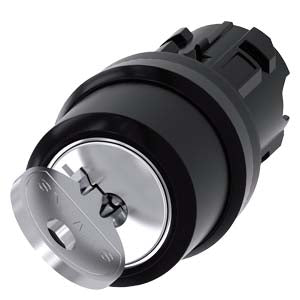

The SIRIUS ACT 3SU1000-4BF01-0AA0 is a premium 22 mm round RONIS key-operated switch designed for secure industrial control applications. This plastic selector switch with lock number SB30 combines robust construction with high-security key operation for demanding access control requirements in industrial environments.

Key Features

Design & Construction:

• 22 mm round mounting diameter with selector switch design
• High-grade plastic front ring and collar construction
• Silver actuator with black plastic front ring
• RONIS lock system with security lock number SB30
• Snap-on mounting system without tools required
• Includes 2 keys for secure operation

Security & Control:

• RONIS Lock System: Proven high-security locking mechanism
• Key Removal in "O" Position: Enhanced security - key can only be removed in OFF position
• 2 Switch Positions: O-I (OFF-ON) for binary control applications
• Latching Operation: Maintains selected position until manually changed
• 90° Actuating Angle: Precise switching between 10:30h and 13:30h positions

Technical Specifications:

• Protection Rating: IP66, IP67, IP69K (front face)
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +80°C
• Mounting Hole Diameter: 22.3 mm
• Switch Positions: 2 positions (O-I)
• Actuating Angle: 90° (10:30h/13:30h)
• Contact Configuration: Depends on contact module selection
• Electrical Rating: 10 A at 400 V AC
• Mechanical Life: 10 million operations
• Vibration Resistance: 10-500 Hz, 5g (IEC 60068-2-6)

Certifications & Standards:

• UL, CSA, CE marked
• IEC 60947-5-1 compliant
• RoHS compliant since 01.10.2014
• REACH regulation compliant

Applications

Ideal for use in:

• Secure access control systems in industrial environments
• Machine enable/disable functions requiring key authorization
• Safety systems with controlled access requirements
• Equipment protection against unauthorized operation
• Maintenance mode selection with key control
• Process control systems requiring operator authorization
• Security applications in manufacturing and automation

Lock Compatibility

• Standard Lock: SB30 (included with 2 keys)
• Special Lock Options: SB31, 421, 455 (available as alternatives)
• Key Management: Supports master key systems and key control protocols

Mounting & Installation

• Front Panel Mounting: Suitable for panel thicknesses up to 8 mm
• Tool-Free Installation: Snap-on holder system
• Contact Modules: Compatible with 3SU14 series contact and LED modules
• Modular Design: Supports stacking of up to 2 contact modules
• Security Integration: Designed for integration with access control systems

Series Compatibility

Part of the comprehensive SIRIUS ACT 3SU1 command and signaling device family, ensuring:

• Consistent design language across installations
• Interchangeable components and modules
• Extensive accessory ecosystem
• Global availability and support

Technical Documentation:

• Net Weight: 0.055 kg
• Country of Origin: Czech Republic
• EAN: 4011209962521
• Package Dimensions: 73 x 100 x 38 mm
