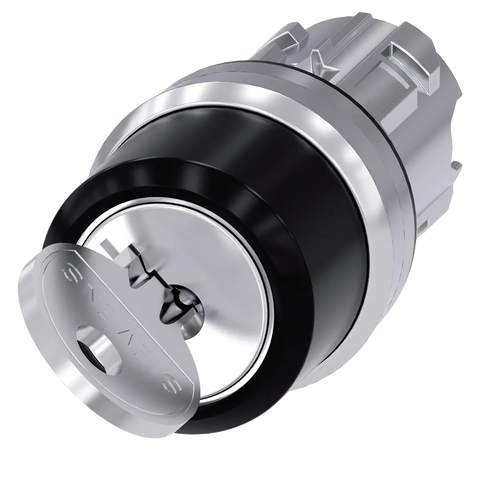

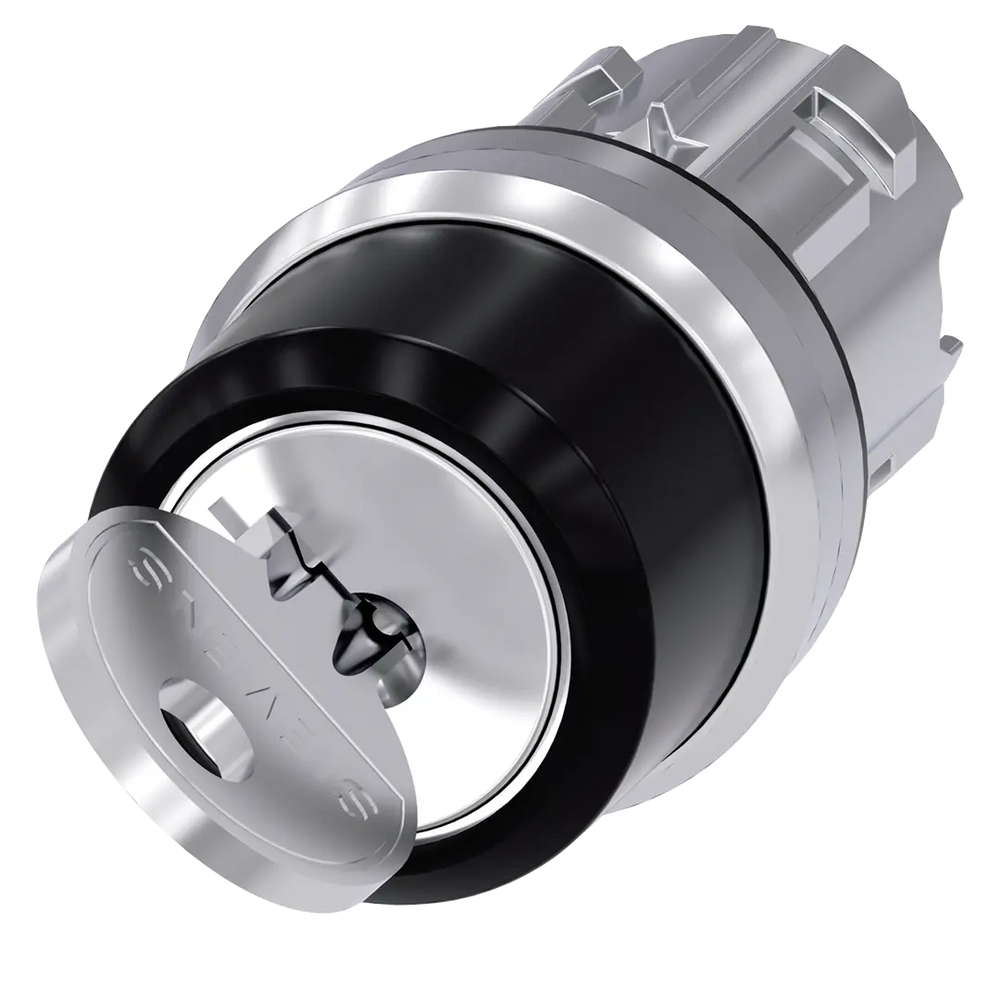

Siemens Ronis key-operated switch, lock number SB30
Log in to view pricing
Sign in with your trade account to access live pricing and place orders. New to Rubicon Industrial Technology? Create an account in seconds.
Product Description
Product Overview
RONIS key-operated switch, 22 mm, round, metal, shiny, lock number SB30, with 2 keys, 2 switch positions O<I, momentary contact type, Actuating angle 45°, 10:30h/12h, key removal O, possible special locks: SB31, 421, 455. Part of the SIRIUS ACT series, this key-operated switch provides secure switching control with RONIS lock technology. The momentary contact design ensures reliable operation for applications requiring controlled access and enhanced security.
Article Number: 3SU1050-4BC01-0AA0
Technical Specifications:
- Switch Type: Key-operated switch with RONIS lock system
- Design: Round, flush mount
- Material: Metal, shiny finish
- Mounting Diameter: 22.3 mm
- Switch Positions: 2 positions (O<I)
- Contact Type: Momentary contact
- Actuating Angle: 45°
- Key Positions: 10:30h/12h
- Key Removal: Position O (off position)
- Lock Number: SB30 (standard)
- Keys Included: 2 keys
- Special Lock Options: SB31, 421, 455 available
Protection & Ratings:
- Protection Rating: IP66/IP67/IP69K
- NEMA Rating: 1/2/3/3R/4/4X/12/13
- Operating Temperature: -25 to 70°C
- Storage Temperature: -40 to 80°C
- Relative Humidity: 10 to 95%
Physical Properties:
- Net Weight: 0.078 kg
- Packaging Dimensions: 50.00 x 100.00 x 50.00 mm
- EAN: 4011209970830
- Country of Origin: Czech Republic
- Packaging Quantity: 1 piece
Security Features:
- RONIS Lock System: Enhanced security with professional lock mechanism
- Key Control: Removable key from off position for controlled access
- Momentary Operation: Spring return to off position for safety
- Tamper Resistance: Robust metal construction prevents unauthorized access
- Multiple Lock Options: Compatible with various lock numbers for key management systems
Compliance & Environmental:
- Product Lifecycle: PM300: Active Product
- RoHS Compliance: Since 01.10.2014
- Export Control: AL: N / ECCN: N
- WEEE Take-Back Obligation: Yes
- REACH Article 33: Compliant - No SVHC substances currently identified
Classification:
- eClass: 27-37-12-13 (versions 6, 7.1, 8, 9, 9.1, 12, 14)
- ETIM: EC000222 (versions 7, 8, 9)
- UNSPSC: 39-12-22-21
Download existing graphical data for this product:
Additional Information
| IP Rating | IP66 |
| IP Rating Detailed | IP66 IP67, IP69(IP69K) protection class IP of the terminal IP20 degree of protection NEMA rating 1, 2, 3, 3R, 4, 4X, 12, 13 shock resistance according to IEC 60068 |
| Compliance/Standards | IEC 60721, IEC 60068-2, IEC 81346-2 |
| Diameter (mm) | 295.0mm |
| Part Width (mm) | 50,00mm |
| Part Height (mm) | 100,00mm |
| Part Depth (mm) | 50,00mm |
| Weight (g) | 0,078 Kg |
| Max Frequency | 18001 /h |
| description | RONIS key-operated switch, 22 mm, round, metal, shiny, lock number SB30, with 2 keys, 2 switch positions O |
| country_of_origin | Czech Republic |
