Siemens Key-operated switch, 3 positions, lock number SSG10 Part number 3SU1050-5BL11-0AA0

EAN / Barcode 4011209948778
Product Type Control Panel
Product Class Front element for selector switch
Category Push Buttons and Switches
Sub-category Key Switch
ETIM Class Front element for selector switch
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD🌱 EcoTech Profile

Product Description

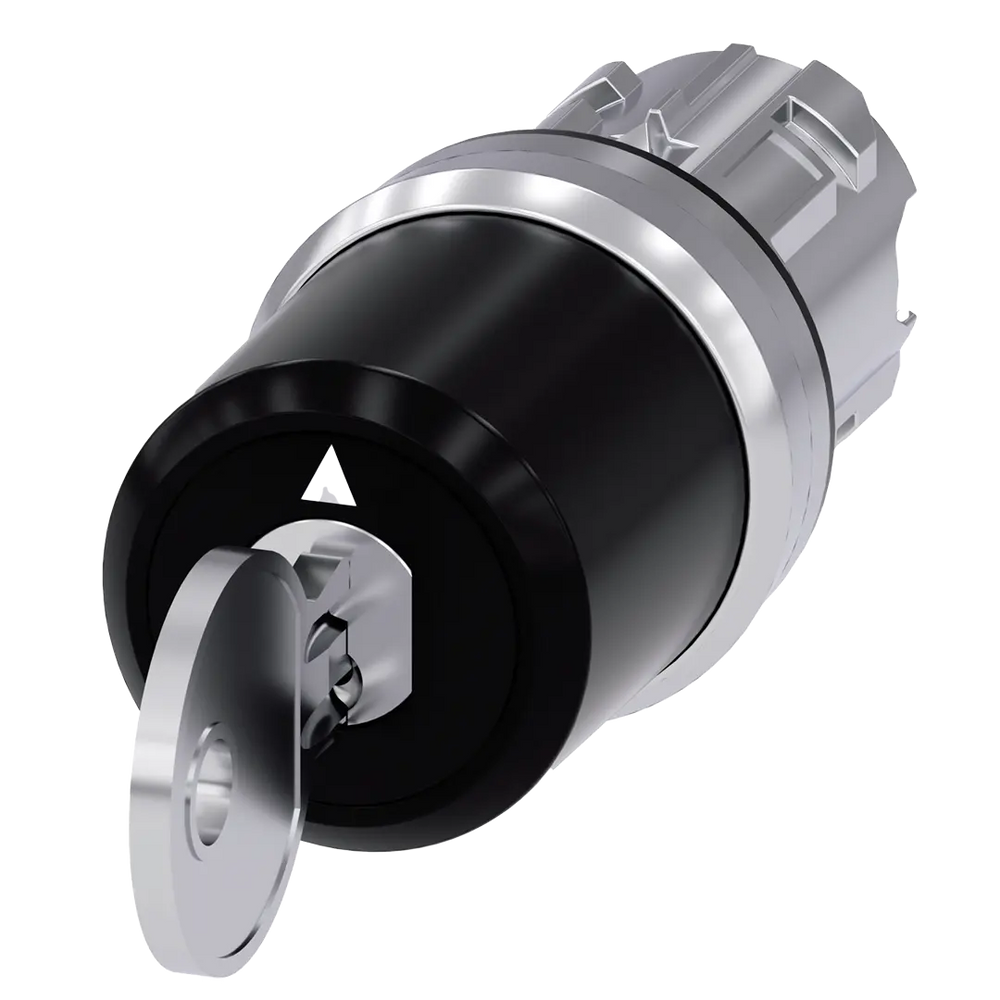

The Siemens black key-operated switch 3SU10505BL110AA0 is renowned for its efficient and non-fuss three positions design with a shiny metal collar. Furthermore, the key is removable from all three (Actuating angle 2x45°, 10:30h/12h/13:30h). Installation is readily achieved as the hole diameter is 22 mm. The key-operated switch lends itself well to all Automation sectors due to the high protection rating IP66/67/69K.

Technical Specifications

Colour control elementSilver
Colour front ringOther
Compliance/StandardsIEC 61508, IEC 60721, IEC 60068-2, IEC 81346-2
Construction type lensRectangular
country_of_originCzech Republic
Degree of protection (IP), front sideIP67/IP69K
descriptionkeyswitch Siemens, C, 22 mm, round, metal, shiny, lock number SSG10, with 2 keys, 3 switch positions I-O-II, latching, actuating angle 2x45°, 10:30h/12h/13:30h, key removal I+O+II
Diameter (mm)295.0mm
Height opening61 mm
Hole diameter22.3 mm
IP RatingIP66
IP Rating DetailedIP66 IP67, IP69(IP69K) protection class IP of the terminal IP20 degree of protection NEMA rating 1, 2, 3, 3R, 4, 4X, 12, 13 shock resistance according to IEC 60068
Material front ringMetal
Max Frequency18001 /h
Number of switch positions3
Part Depth (mm)50,00mm
Part Height (mm)100,00mm
Part Width (mm)50,00mm
Switching function latchingYes
Weight (g)0,151 Kg
Width opening29.5 mm
With front ringYes
