Product Overview

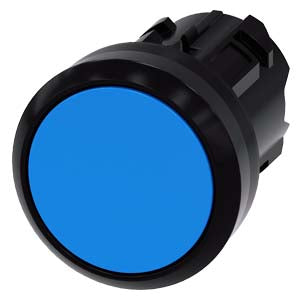

The SIRIUS ACT 3SU1000-0AB50-0AA0 is a premium 22 mm round pushbutton designed for industrial control applications. This blue, plastic flat momentary contact pushbutton combines robust construction with reliable performance for demanding industrial environments.

Key Features

Design & Construction:

• 22 mm round mounting diameter with flat button design
• High-grade plastic front ring and collar construction
• Blue actuator button with black plastic front ring
• Momentary contact operation (normally open)
• Snap-on mounting system without tools required

Technical Specifications:

• Protection Rating: IP66, IP67, IP69K (front face)
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +80°C
• Mounting Hole Diameter: 22.3 mm
• Front Opening: 29.5 mm width x 11 mm height
• Contact Configuration: 1 NO (Normally Open)
• Electrical Rating: 10 A at 400 V AC
• Mechanical Life: 10 million operations
• Vibration Resistance: 10-500 Hz, 5g (IEC 60068-2-6)

Certifications & Standards:

• UL, CSA, CE marked
• IEC 60947-5-1 compliant
• RoHS compliant since 01.10.2014
• REACH regulation compliant

Applications

Ideal for use in:

• Function selection and mode switching operations
• Manufacturing equipment interfaces
• Process control systems
• Status indication and acknowledgment functions
• General machine operation controls
• Auxiliary control functions

Mounting & Installation

• Front Panel Mounting: Suitable for panel thicknesses up to 8 mm
• Tool-Free Installation: Snap-on holder system
• Contact Modules: Compatible with 3SU14 series contact and LED modules
• Modular Design: Supports stacking of up to 2 contact modules

Series Compatibility

Part of the comprehensive SIRIUS ACT 3SU1 command and signaling device family, ensuring:

• Consistent design language across installations
• Interchangeable components and modules
• Extensive accessory ecosystem
• Global availability and support

Technical Documentation:

• Net Weight: 0.015 kg
• Country of Origin: China
• EAN: 4011209947122
• Package Dimensions: 30 x 35 x 27 mm

Download existing graphical data for this product:

Technical Documentation:

• Official Technical Datasheet (PDF)
• Product Support Page
• SIRIUS ACT System Manual

CAD Data & Drawings:

• 3D CAD Models - Multiple Formats
• 2D Dimension Drawings
• EPLAN Macros

Configuration Tools:

• SIRIUS ACT Online Configurator
• Product Selection Tool

Additional Resources:

• Installation Instructions
• Wiring Diagrams
• Compatibility Matrix
