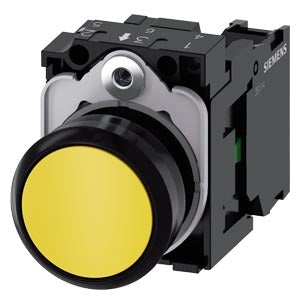

Siemens Pushbutton, momentary contact, plastic, yellow, 22mm

Product Overview

This SIRIUS ACT pushbutton is designed for reliable switching and control applications in industrial environments. The 22mm round pushbutton features a robust plastic construction with a yellow flat button design, providing excellent tactile feedback and visibility. This complete unit includes a holder with 1 NO (normally open) contact and screw terminals for easy installation and wiring.

Key Features

• Size: 22mm diameter round design
• Construction: High-quality plastic body with yellow flat button
• Contact Type: Momentary contact operation
• Contact Configuration: 1 NO (normally open) contact included
• Terminal Type: Screw terminals for secure connections
• Button Style: Flat surface design
• Mounting: Panel mount with 22mm cutout diameter

Technical Specifications

• Article Number: 3SU1100-0AB30-1BA0
• EAN: 4011209959361
• Series: SIRIUS ACT 3SU11
• Net Weight: 0.048 kg
• Push Button Diameter: 29.45mm
• Panel Cutout Diameter: 22mm
• Operating Temperature Range: -25°C to +70°C
• Maximum Voltage: 500V AC/DC
• Contact Configuration: SPST (Single Pole Single Throw)
• Packaging: 50.00 x 50.00 x 30.00 mm
• Country of Origin: Germany

Electrical Specifications

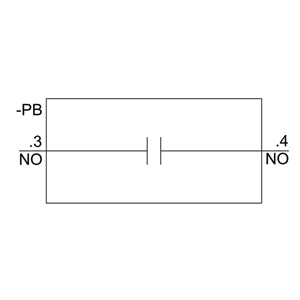

• Contact Arrangement: 1 NO (normally open)
• Terminal Connection: Screw terminal
• Voltage Rating: Up to 500V AC/DC
• Contact Material: Silver-plated for reliable conductivity

Compliance & Certifications

• RoHS Compliance: Compliant since 01.10.2014
• Export Control: AL: N / ECCN: N
• WEEE Take-Back: Yes, compliant with 2012/19/EU directive

Applications Part of the SIRIUS ACT portfolio, this pushbutton is ideal for industrial control applications requiring reliable momentary switching. The yellow color follows international standards for caution or warning functions. The complete unit design simplifies installation with integrated holder and contact block, making it perfect for control panels, machinery interfaces, and automation systems.

Product Series Information Under the brand name SIRIUS ACT, Siemens offers a comprehensive portfolio of pushbuttons and signaling devices with global product approvals. The innovative design ensures reliable operation in demanding industrial environments with excellent durability and long service life.

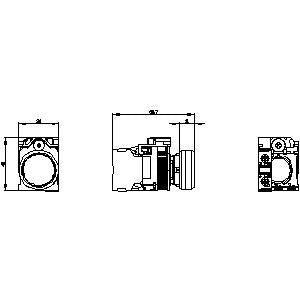

Download existing graphical data for this product:
