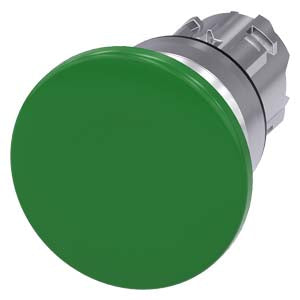

Siemens Mushroom p/button, momentary contact, green, 40mm

Product Overview

Mushroom pushbutton, 22 mm, round, metal, shiny, green, 40 mm, momentary contact type. Part of the SIRIUS ACT series, this mushroom pushbutton features a large handle for comfortable operation with your whole hand. Under the SIRIUS ACT brand name, Siemens offers a unique portfolio of commanding and signaling devices with worldwide product approvals in four modern design series made of robust real metal and high-quality plastic.

Article Number: 3SU1050-1BD40-0AA0

Technical Specifications:

• Button Color: Green
• Design: Round lens design

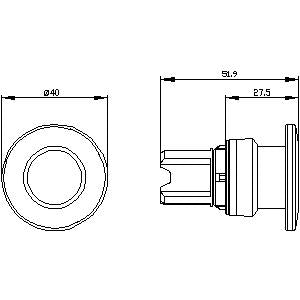

• Cap Diameter: 40 mm
• Hole Diameter: 22.3 mm
• Opening Width: 40 mm
• Opening Height: 27.5 mm
• Contact Type: Momentary contact
• Button Design: High profile
• Front Ring: Metal with front ring
• Protection Rating: IP67/IP69K
• NEMA Rating: 13
• Unlocking Type: Without unlocking mechanism

Physical Properties:

• Net Weight: 0.048 kg
• Packaging Dimensions: 30.00 x 50.00 x 30.00 mm
• EAN: 4011209966789
• Country of Origin: China
• Packaging Quantity: 1 piece

Compliance & Environmental:

• Product Lifecycle: PM300: Active Product
• RoHS Compliance: Since 01.10.2014
• Export Control: AL: N / ECCN: N
• WEEE Take-Back Obligation: Yes
• REACH Article 33: Compliant - No SVHC substances currently identified

Classification:

• eClass: 27-37-12-12 (versions 6, 7.1, 8, 9, 9.1, 12, 14)
• ETIM: EC001038 (versions 7, 8, 9)
• UNSPSC: 39-12-22-21
