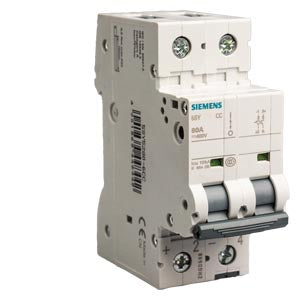

Siemens Miniature circuit breaker, 2-pole, 400V, 15kA, 16A
View on Siemens 📄 Datasheet
Siemens

Siemens Miniature circuit breaker, 2-pole, 400V, 15kA, 16A Part number 5SY7216-7CC

EAN / Barcode 4001869449609
Product Type Control Panel
Product Class Miniature circuit breaker (MCB)
Category Power Distribution
Sub-category Circuit Breaker
ETIM Class Miniature circuit breaker (MCB)
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD

Product Description

Product Overview

The Siemens 5SY7216-7CC is a high-performance miniature circuit breaker designed for reliable electrical protection in commercial and industrial applications. This 2-pole circuit breaker features a 16 A current rating with 400 V operational voltage and 15 kA breaking capacity, making it ideal for protecting medium-current electrical circuits and equipment from overloads and short circuits.

Key Features

  • High Breaking Capacity: 15 kA breaking capacity ensures reliable protection against high fault currents
  • 2-Pole Configuration: Provides protection for single-phase electrical systems with neutral protection
  • C-Type Characteristic: Optimized for general applications with moderate inrush currents
  • Medium Current Rating: 16 A rating suitable for lighting circuits and general power distribution
  • Compact Design: Space-efficient construction suitable for standard DIN rail mounting
  • Reliable Operation: Engineered for consistent performance in demanding electrical environments

Technical Specifications

  • Current Rating: 16 A
  • Voltage Rating: 400 V
  • Breaking Capacity: 15 kA
  • Number of Poles: 2
  • Trip Characteristic: C-type
  • Net Weight: 0.320 kg
  • Country of Origin: China
  • EAN: 4001869449609

Applications

This miniature circuit breaker is suitable for:

  • Lighting circuits and control systems
  • Small motor protection
  • General power distribution
  • Commercial electrical installations
  • Residential distribution boards
  • Office equipment protection
  • HVAC control circuits
  • Electrical panel protection

Compliance & Certifications

  • RoHS Compliance: Compliant since April 1, 2013
  • WEEE Directive: Subject to take-back obligations under directive 2012/19/EU
  • REACH Regulation: Contains lead in concentrations higher than 0.1% w/w as per Article 33 requirements
  • Export Control: AL: N / ECCN: N
  • Product Class: B - Return restricted, contact Siemens partner for returns

Product Classification

  • eClass: 27-14-19-01 (versions 6-14)
  • ETIM: EC000042 (versions 7-9)
  • UNSPSC: 39-12-16-03
  • Product Group: 3813

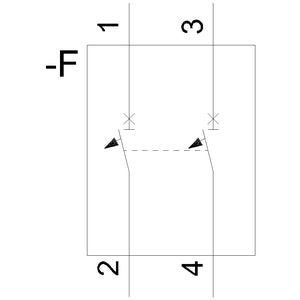

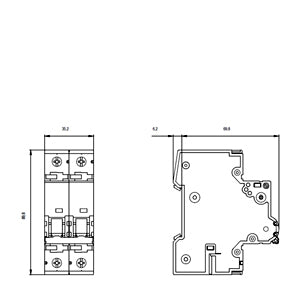

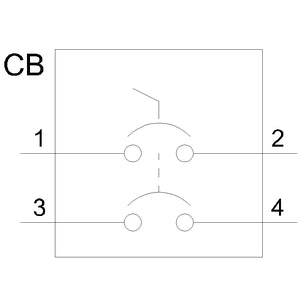

Download existing graphical data for this product:

Article Number: 5SY7216-7CC

Packaging: Single unit per package

Technical Specifications

Additional equipment possibleYes
Ambient temperature during operating55 °C
Built-in depth70 mm
Compliance/CertificationsIEC / EN 60898-1
Connectable conductor cross section multi-wired35 mm²
Connectable conductor cross section solid-core35 mm²
Connection Style2 Poles
Degree of protection (IP)IP20
Frequency50 Hz
IP RatingIP20, with connected conductors
Number of poles (total)2
Number of protected poles2
Over voltage category3
Part Depth (mm)76mm
Part Height (mm)90mm
Part Width (mm)36mm
Pollution degree3
Power loss3.6 W
Rated current16 A
Rated impulse withstand voltage Uimp4 kV
Rated insulation voltage Ui440 V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25 kA
Rated voltage400 V
Release characteristicC
Supply Voltage60 VDC / 400 VAC
Temperature: Operating-25°C to 55°C
Type of VoltageAC
Voltage typeAC
Weight (g)330g
Width in number of modular spacings2
Country of OriginGermany
View complete specifications on Siemens
