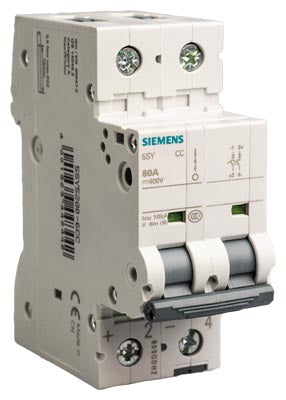

Siemens Miniature circuit breaker, 2-pole, C, 400V, 15kA, 2A
View on Siemens 📄 Datasheet
Siemens

Siemens Miniature circuit breaker, 2-pole, C, 400V, 15kA, 2A Part number 5SY7202-7CC

EAN / Barcode 4001869449531
Product Type Control Panel
Product Class Miniature circuit breaker (MCB)
Category Power Distribution
Sub-category Circuit Breaker
ETIM Class Miniature circuit breaker (MCB)
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD

Product Description

Product Overview

The Siemens 5SY7202-7CC is a high-performance miniature circuit breaker engineered for reliable electrical protection in commercial and industrial applications. This 2-pole circuit breaker features a 2 A current rating with 400 V operational voltage and 15 kA breaking capacity, making it ideal for protecting low-current electrical circuits and sensitive equipment from overloads and short circuits.

Key Features

  • High Breaking Capacity: 15 kA breaking capacity ensures reliable protection against high fault currents
  • 2-Pole Configuration: Provides protection for single-phase electrical systems with neutral protection
  • C-Type Characteristic: Optimized for general applications with moderate inrush currents
  • Low Current Rating: 2 A rating perfect for control circuits and sensitive electronic equipment
  • Compact Design: Space-efficient construction suitable for standard DIN rail mounting
  • Reliable Operation: Engineered for consistent performance in demanding electrical environments

Technical Specifications

  • Current Rating: 2 A
  • Voltage Rating: 400 V
  • Breaking Capacity: 15 kA
  • Number of Poles: 2
  • Trip Characteristic: C-type
  • Mounting: DIN rail compatible
  • Operating Temperature: Standard industrial range

Applications

This miniature circuit breaker is particularly suitable for:

  • Control circuit protection
  • Electronic equipment protection
  • Instrumentation circuits
  • Low-power lighting circuits
  • Signal circuit protection
  • Auxiliary equipment circuits
  • Commercial electrical installations
  • Industrial control panels
  • Distribution boards

Compliance & Certifications

  • RoHS Compliance: Meets current RoHS directive requirements
  • WEEE Directive: Subject to take-back obligations under directive 2012/19/EU
  • REACH Regulation: Complies with REACH requirements for electrical equipment
  • Product Class: Standard return policy applies
  • Safety Standards: Compliant with relevant IEC and EN standards for miniature circuit breakers

Product Classification

  • eClass: 27-14-19-01 (Miniature circuit breakers)
  • ETIM: EC000042 (Circuit protection devices)
  • UNSPSC: 39-12-16-03 (Circuit breakers)
  • SENTRON Series: Part of Siemens SENTRON protection device portfolio

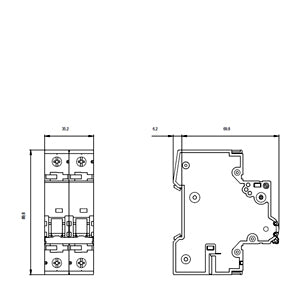

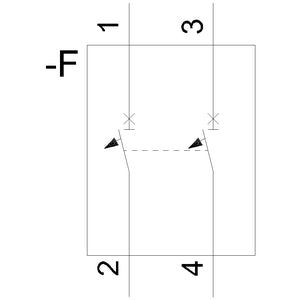

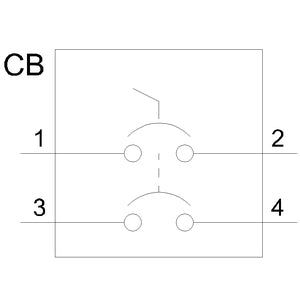

Download existing graphical data for this product:

Article Number: 5SY7202-7CC

Packaging: Single unit per package

Technical Specifications

Additional equipment possibleYes
Ambient temperature during operating55 °C
Built-in depth70 mm
Compliance/CertificationsIEC / EN 60898-1
Connectable conductor cross section multi-wired0.75 mm²
Connectable conductor cross section solid-core35 mm²
Connection Style2 Poles
Degree of protection (IP)IP20
Frequency50 Hz
IP RatingIP20, with connected conductors
Number of poles (total)2
Number of protected poles2
Operating Period10 000 cycles (Mechanical)
Over voltage category3
Packaging size / unitpc(s)
Part Depth (mm)76mm
Part Height (mm)90mm
Part Width (mm)36mm
Pollution degree3
Power loss2.8 W
Rated current2 A
Rated impulse withstand voltage Uimp4 kV
Rated insulation voltage Ui440 V
Rated Operating Voltage72 VDC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V50 kA
Rated voltage400 V
Release characteristicC
Supply Voltage60 VDC to 400 VAC
Temperature: Operating-25°C to 55°C
Type of VoltageAC
Voltage Frequency Range50 / 60 Hz
Voltage typeAC
Weight (g)330g
Width in number of modular spacings2
Country of OriginGermany
