Siemens Miniature circuit breaker, 1-pole, 230/400V, 10kA

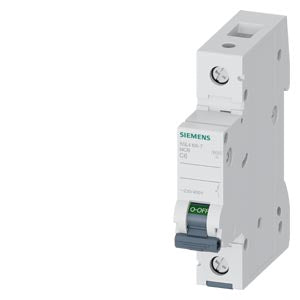

Product Overview The Siemens 5SL4106-7 is a high-performance SENTRON miniature circuit breaker designed for light-load electrical protection in residential, commercial, and specialized applications. This 1-pole device features a 6A current rating with 230/400V operational voltage and 10kA breaking capacity, incorporating C-curve trip characteristics optimized for general-purpose circuits with moderate inrush currents. The innovative 5SL4 series design includes advanced safety features such as tool-free removal capability, effective touch protection, and enhanced connectivity options, making it ideal for protecting low-current circuits requiring reliable overcurrent protection with superior operational convenience and safety.

Key Features

• Light-Load Current Rating: 6A current capacity for low-current single-pole applications
• High Breaking Capacity: 10kA short-circuit breaking capacity for robust fault protection
• 1-Pole Configuration: Optimized for single-pole applications in residential and commercial installations
• C-Curve Trip Characteristic: Balanced protection for general circuits with moderate inrush loads (5-10 In trip range)
• Dual Voltage Rating: 230/400V operational capability for flexible installation requirements
• Compact Single Module: Space-efficient 1-module width design with 70mm mounting depth
• Tool-Free Release System: Revolutionary latching slide mechanism for easy removal without tools
• Enhanced Safety Features: Effective touch protection with colored switch position indicator
• Wide Conductor Range: Accommodates conductors up to 35mm² with rectangular terminals
• Current Limiting Class 3: Advanced arc energy limitation for enhanced safety

Technical Specifications

• Current Rating: 6A
• Operating Voltage: 230/400V AC
• Breaking Capacity (Icn): 10kA at 230V and 400V according to EN 60898
• Breaking Capacity (Icu): 10kA at 230V and 400V according to IEC 60947-2
• Number of Poles: 1-pole (single pole protected)
• Trip Curve: C (5-10 In)
• Frequency: 50-60 Hz
• Current Limiting Class: 3
• Modular Width: 1 module
• Mounting Depth: 70mm
• Net Weight: 0.150 kg
• Protection Class: IP20
• Operating Temperature: -25°C to +55°C
• Overvoltage Category: 3
• Pollution Degree: 2
• Conductor Cross-Section: Up to 35mm² with pin busbars
• Country of Origin: Romania
• EAN: 4001869440132

Applications This 1-pole C-curve miniature circuit breaker is particularly suitable for:

• Low-current lighting circuits in residential and commercial buildings
• Small appliance and electronic device protection
• Control circuit protection in industrial panels
• Auxiliary circuit protection in distribution boards
• LED lighting systems and low-power installations
• Security system and alarm circuit protection
• Communication equipment power supply protection
• Laboratory and testing equipment circuits
• Educational facility low-current installations
• Medical equipment auxiliary circuits
• Building automation system protection
• Emergency lighting and exit sign circuits

Advanced Design Features

• Latching Slide System: Tool-free removal from bus-mounted assemblies with effective touch protection
• Rectangular Terminal Design: Enhanced cable entry capability with accommodation for pin busbars
• Consistent Bus Mounting: Compatible with comprehensive Siemens bus mounting concept
• Accessory Compatibility: Quick and easy mounting of additional components including arc fault detection devices, auxiliary switches, fault signal contacts, shunt trips, and undervoltage releases
• Enhanced Safety Design: Latch-down option with improved operational safety
• System Integration: Uniform design consistent with all Siemens miniature circuit breaker ranges

Light-Load Application Benefits

• Precise Protection: 6A rating perfect for low-current applications requiring reliable protection
• Optimal Sensitivity: Balanced protection without nuisance tripping for light loads
• Energy Efficiency: Ideal for modern energy-efficient installations and LED lighting
• System Compatibility: Perfect for control circuits and auxiliary applications
• Installation Flexibility: 230/400V capability provides versatile installation options

Advanced Design Features

• Latching Slide System: Revolutionary tool-free removal from bus-mounted assemblies with effective touch protection and latch-down option
• Rectangular Terminal Design: Enhanced cable entry capability with accommodation for pin busbars and conductors up to 35mm²
• Colored Switch Position Indicator: Easy-to-read visual indication integrated in the handle for clear operational status
• Consistent Bus Mounting: Compatible with comprehensive Siemens bus mounting concept throughout the entire range
• Accessory Compatibility: Quick and easy mounting of additional components including arc fault detection devices (AFDD), auxiliary switches, fault signal contacts, shunt trips, and undervoltage releases
• Handle Locking Capability: Provision for handle locking device to prevent unauthorized switching
• Ergonomic Design: User-friendly handle and housing contours for comfortable manual operation

Safety & Installation Benefits

• Touch Protection: Integrated terminal touch protection protects installers from electrical shock during connection
• Tool-Free Maintenance: Individual devices can be removed from bus-mounted assembly without tools for easy servicing
• Enhanced Wiring Space: Larger wiring space with easily accessible and safe line connections
• Climate Resistant: Designed according to IEC standards for reliable operation in various environmental conditions
• Sealable Handle: Optional sealing capability for enhanced security applications
• Better World Product: Designed for disassembly and extended product life for environmental sustainability

Compliance & Certifications

• Standards Compliance: EN 60898-1, IEC 60947-2
• RoHS Compliance: Compliant since June 1, 2013
• WEEE Directive: Subject to take-back obligations under directive 2012/19/EU
• REACH Regulation: Contains Lead in concentrations higher than 0.1% w/w
• Export Control: AL: N / ECCN: N
• Product Class: B - Return restricted, contact Siemens partner
• Quality Certifications: CE marking, SENTRON quality standards

Product Classification

• eClass: 27-14-19-01 (versions 6-14)
• ETIM: EC000042 (versions 7-9)
• UNSPSC: 39-12-16-03
• Product Group: 3805

Download existing graphical data for this product:

• Product Datasheet
• Installation Manual
• SENTRON Product Catalog
• Technical Documentation
