Siemens Miniature circuit breaker, 1-pole, 230/400V 15kA, 63A Siemens
View on Siemens 📄 Datasheet
Siemens

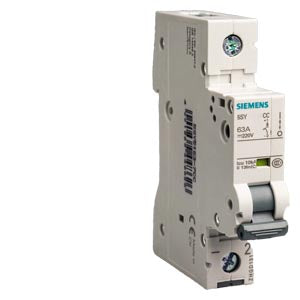

Siemens Miniature circuit breaker, 1-pole, 230/400V 15kA, 63A Part number 5SY7163-7CC

EAN / Barcode 4001869449302
Product Type Control Panel
Product Class Miniature circuit breaker (MCB)
Category Power Distribution
Sub-category Circuit Breaker
ETIM Class Miniature circuit breaker (MCB)
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD

Product Description

Product Overview

The Siemens 5SY7163-7CC is a high-performance miniature circuit breaker designed for reliable electrical protection in commercial and industrial applications. This 1-pole circuit breaker features a 63 A current rating with 400 V operational voltage and 15 kA breaking capacity, making it ideal for protecting high-current single-phase electrical circuits and equipment from overloads and short circuits.

Key Features

  • High Breaking Capacity: 15 kA breaking capacity ensures reliable protection against high fault currents
  • 1-Pole Configuration: Provides protection for single-phase electrical systems and individual circuits
  • C-Type Characteristic: Optimized for general applications with moderate inrush currents
  • High Current Rating: 63 A rating suitable for heavy-duty applications and high-load equipment
  • Compact Design: Space-efficient construction suitable for standard DIN rail mounting
  • Reliable Operation: Engineered for consistent performance in demanding electrical environments

Technical Specifications

  • Current Rating: 63 A
  • Voltage Rating: 400 V
  • Breaking Capacity: 15 kA
  • Number of Poles: 1
  • Trip Characteristic: C-type
  • Mounting: DIN rail compatible
  • Operating Temperature: Standard industrial range
  • Depth: 70 mm (D=70 mm)

Applications

This miniature circuit breaker is particularly suitable for:

  • Heavy-duty motor protection
  • High-current single-phase equipment
  • Industrial machinery circuits
  • Large heating elements
  • Power distribution systems
  • Commercial electrical installations
  • Industrial control panels
  • High-load lighting circuits
  • HVAC equipment protection

Compliance & Certifications

  • RoHS Compliance: Meets current RoHS directive requirements
  • WEEE Directive: Subject to take-back obligations under directive 2012/19/EU
  • REACH Regulation: Complies with REACH requirements for electrical equipment
  • Product Class: Standard return policy applies
  • Safety Standards: Compliant with relevant IEC and EN standards for miniature circuit breakers

Product Classification

  • eClass: 27-14-19-01 (Miniature circuit breakers)
  • ETIM: EC000042 (Circuit protection devices)
  • UNSPSC: 39-12-16-03 (Circuit breakers)
  • SENTRON Series: Part of Siemens SENTRON protection device portfolio

Download existing graphical data for this product:

Article Number: 5SY7163-7CC

Packaging: Single unit per package

Technical Specifications

Additional equipment possibleYes
Ambient temperature during operating55 °C
Article Number5SY7163-7CC
Built-in depth70 mm
Connectable conductor cross section multi-wired0.75 mm²
Connectable conductor cross section solid-core0.75 mm²
Country of originChina
DataSheet in PDFDownload
Degree of protection (IP)IP20
EAN4001869449302
Frequency50 Hz
Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w): Lead. Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
Net Weight (kg)0.160 Kg
Number of poles (total)1
Number of protected poles1
Over voltage category3
Pollution degree3
Power loss4.9 W
Product classB: return restricted, please contact your Siemens partner/contact
Product DescriptionMiniature circuit breaker 230/400 V 15kA, 1-pole, C, 63A
Product Group3813
Product Lifecycle (PLM)PM300: Active Product
Rated current63 A
Rated impulse withstand voltage Uimp4 kV
Rated insulation voltage Ui440 V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V20 kA
Rated voltage230 V
Release characteristicC
RoHS Conformity DateSince: 01.04.13
Voltage typeAC
WEEE (2012/19/EU) Take-Back ObligationYes
Width in number of modular spacings1
View complete specifications on Siemens
