Siemens
Siemens Miniature circuit breaker 1-pole, 230/400V, 15kA, 4A
In Stock
View Full Product Details on Siemens
💬
Ask an Expert - Technical Support Available
Product Description
Product Overview
The Siemens 5SY7104-7CC is a high-performance miniature circuit breaker designed for reliable electrical protection in commercial and industrial applications. This 1-pole circuit breaker features a 4 A current rating with 230/400 V operational voltage and 15 kA breaking capacity, making it ideal for protecting low-current single-phase electrical circuits and sensitive equipment from overloads and short circuits.
Key Features
- High Breaking Capacity: 15 kA breaking capacity ensures reliable protection against high fault currents
- 1-Pole Configuration: Provides protection for single-phase electrical systems and individual circuits
- C-Type Characteristic: Optimized for general applications with moderate inrush currents
- Low Current Rating: 4 A rating perfect for control circuits and sensitive electronic equipment
- Compact Design: Space-efficient construction suitable for standard DIN rail mounting
- Reliable Operation: Engineered for consistent performance in demanding electrical environments
Technical Specifications
- Current Rating: 4 A
- Voltage Rating: 230/400 V
- Breaking Capacity: 15 kA
- Number of Poles: 1
- Trip Characteristic: C-type
- Net Weight: 0.160 kg
- Country of Origin: China
- EAN: 4001869449197
Applications
This miniature circuit breaker is particularly suitable for:
- Control circuit protection
- Electronic equipment protection
- Instrumentation circuits
- Low-power lighting circuits
- Signal circuit protection
- Auxiliary equipment circuits
- Commercial electrical installations
- Industrial control panels
- Distribution boards
Compliance & Certifications
- RoHS Compliance: Compliant since April 1, 2013
- WEEE Directive: Subject to take-back obligations under directive 2012/19/EU
- REACH Regulation: Contains lead in concentrations higher than 0.1% w/w as per Article 33 requirements
- Export Control: AL: N / ECCN: N
- Product Class: B - Return restricted, contact Siemens partner for returns
Product Classification
- eClass: 27-14-19-01 (versions 6-14)
- ETIM: EC000042 (versions 7-9)
- UNSPSC: 39-12-16-03
- Product Group: 3813

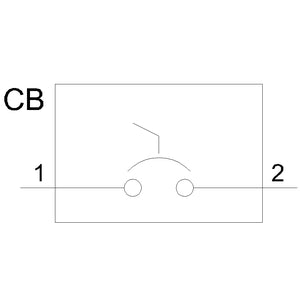

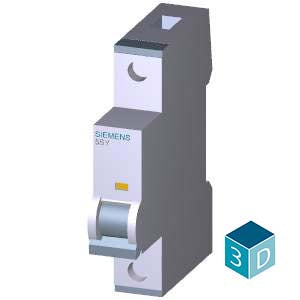

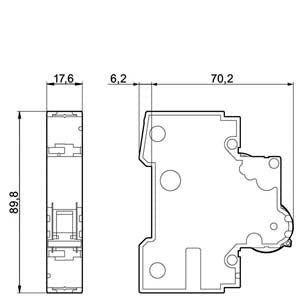

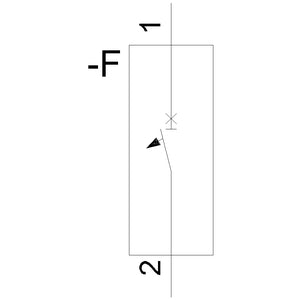

Download existing graphical data for this product:
Article Number: 5SY7104-7CC
Packaging: Single unit per package
Technical Specifications
| IP Rating | IP20 |
| Country of Origin | Germany |
| Compliance/Certifications | IEC / EN 60898-1 |
| Temperature: Operating | -25°C to 55°C |
| Part Depth (mm) | 76mm |
| Part Width (mm) | 18mm |
| Weight (g) | 165g |
| Tightening Torque | 2.5 - 3.5 Nm |
| Connection Type | Connectable conductor cross-section solid / connectable conductor cross-section stranded / connectable conductor cross-section finely stranded with core\nend processing / screw-type terminals |
| Type of Voltage | AC |
| Operating Voltage | 72 VDC |
| Supply Voltage | 60 VDC / 230 V AC |
| Operating Period | 10 000 cycles |
Technical Documentation & Downloads
Videos & Media
Product Overview
Overview, features and application examples
Compatible Accessories & Components
Accessories
Siemens Auxiliary current switch, 1 NO+1 NC
5ST3010
Siemens Shunt release for mini circuit breaker, 110 - 415VAC
5ST3030
